Serial Decoding - UPDATE

The new PicoScope beta release, 6.13, adds Modbus RTU and ASCII to its growing list of serial decoders. Modbus is used in industrial automation to communicate with programmable logic controllers (PLCs).

PicoScope 6 now supports a total of 18 serial protocols and is the only oscilloscope that can decode Modbus.

~~~~~~~~~~~~~~~~~

You can use PicoScope to decode data from a serial bus such as CAN bus. Unlike a conventional bus analyzer, PicoScope lets you see the high-resolution electrical waveform at the same time as the data. RS232/UART and SPI formats added to serial decoding mode


Credit Cards Accepted



Aurora Probability in Northern Canada

Auroral forecast from AuroraWatch.ca



North America Aurora Map from
NOAA Space Weather Prediction Center

Aurora Map - NOAA






Data Logger & Alarm System Converts PC to Oscilloscope (1435 bytes)

Current Monitoring Kit

The current monitoring kit contains everything that you need to start data logging currents from up to three separate circuits. It is ideal for measuring and balancing 3 phase supplies as well as machine monitoring and energy efficiency studies.

Link Here!

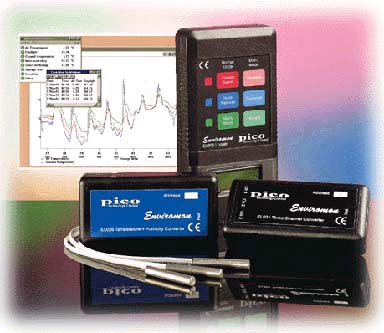

pico_enviromon system.jpg (29069 bytes)



US Prices

CDN Prices

Privacy and Security Policy

  EL005 - Enviromon without Display



Enviromon Network Display



Environmental Logging
Measurement solutions for temperature and other parameters




Pico Technology is a leading manufacturer of temperature measurement and environmental monitoring equipment.

For short term temperature measurement, the TH-03 thermistor converter and the TC-08 thermocouple converter are both cost effective and highly accurate.

The Environmon system records data 24 hours a day 365 days a year - even without a computer and will continue to record data if the mains power fails. It can support up to 30 sensors, spread over a wide area - up to 400 metres from the logger.

All equipment is supplied complete with cables, connectors, application software and drivers.

Features

EnviroMon Logger & Alarm System

Thermocouple Converter available to allow connection of thermocouples to the Environmon system. Model EL041 now available.

Measures temperature or other parameters
Stand alone or PC based Covers a wide area Remote data logging via modem or via the Internet with ip logging.



EnviroMon    Data Logger and Alarm System Return to top of page

The EnviroMon logger and alarm system carries out the routine test of monitoring and recording temperatures and other parameters day and night, and advises you immediately if there is a problem. It can print reports which summarize the occasions on which a parameter went out of range. When used with a PC, it can also keep a record of actions taken.




pico_enviromon screen.jpg (30162 bytes)


EnviroMon - How does it work Return to top of page

At the core of the system is the logger, which is able to store up to 15,000 readings at intervals from a minute to an hour. The logger automatically displays the current reading for each sensor in turn. The logger can send detailed or summary reports directly to a printer at a specified time intervals, or transfer data to a computer for long term storage or graphical analysis. The logger contains batteries so that it can continue recording even if the mains fails.


pico_enviromon screen2.gif (11621 bytes)

Enviromon Alarms



Features

Measures temperature or other parameters
Displays current readings
Transfers stored data to PC or direct to printer
Works without a computer, even when mains fails
Audible alarm if parameter goes out of range
Easily expandable to 30 channels
Site - wide data collection
Single network cable
Remote data collection via telephone or radio links
Easy to install - telephone - style connectors













Expandability Return to top of page
The system operates using a single network cable, up to 400 metres long, running between the logger and up to 10 converters.

The network provides power to the vonverters and collects readings from them. Each three channel converter can be connected to up to three sensors, in any mix of temperature or other parameters. There is a range of acceessories, for example a remote alarm, which can be connected to the network at any point.





EnviroMon

EnviroMon DataGen

EnviroMon Data Generator

Released: 3 July 2009

The EnviroMon Data Generator allows you to extract data by a few simple clicks and without having to go into the EnviroMon software.

Please note: You may also need to download the .NET 2 framework, as the program is written in C#. The program works with Windows XP and Vista.
