Data Acquisition  Spectrum Analyser - iOS
Simple and Intuitive
WiPry-Spectrum is the first 2.4GHz ISM band spectrum analyzer designed specifically for the iPhone, iPod touch, and iPad. It is simple and intuitive to use. It allows you to "Pry" into your WiFi environment to detect and avoid noisy channels. Download WiPry in the App Store and test drive our interface for free.
Product Specs
- Frequency Range: 2.4-2.495GHz
- Antenna: External with SMB
- Amplitude Range: -40dBm to 20dBm
- Amplitude Resolution: 2.0dBm
- Resolution Bandwidth: 1MHz
- Sweep Time: 200ms
|
How To Transform an iPhone into a 2.4GHz Spectrum Analyzer
|
| youtube |
Visualization Tools: Everything You Need
|

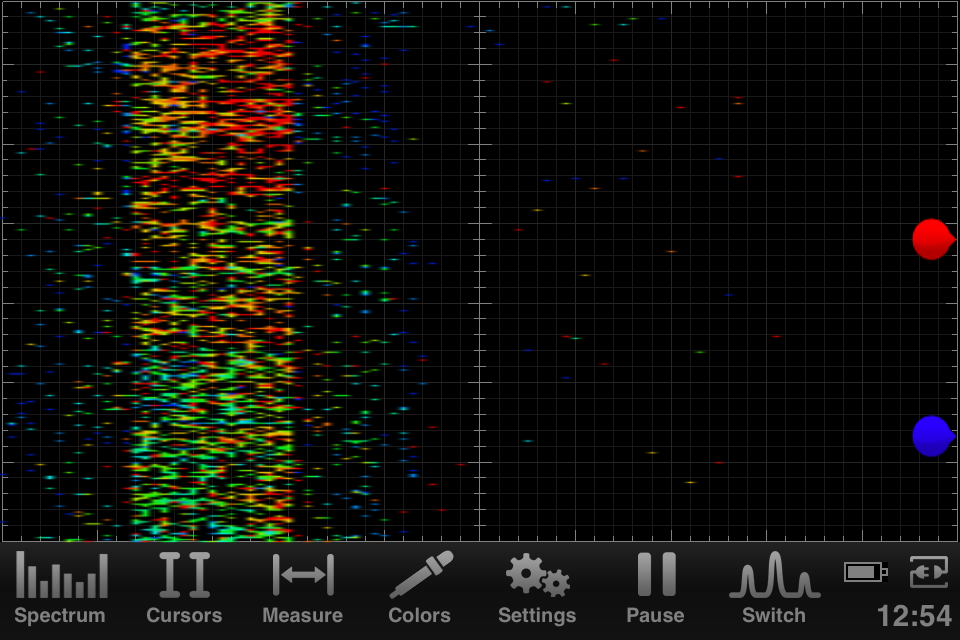

| The visualization techniques used in WiPry-Spectrum give you the ability to see your wireless network from a variety of different perspectives. Some prefer the real wave view (top left), and some prefer waterfall mode (top right). Regardless of your preference, we have all the tools that you need to identify and avoid interference. |
Identify and Avoid Interference By Changing Channels
|

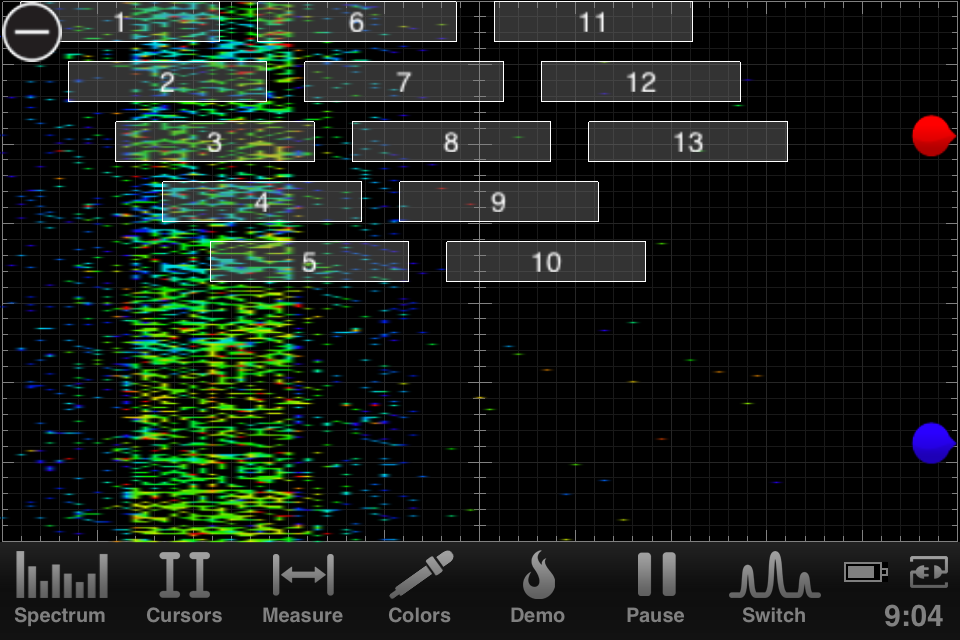

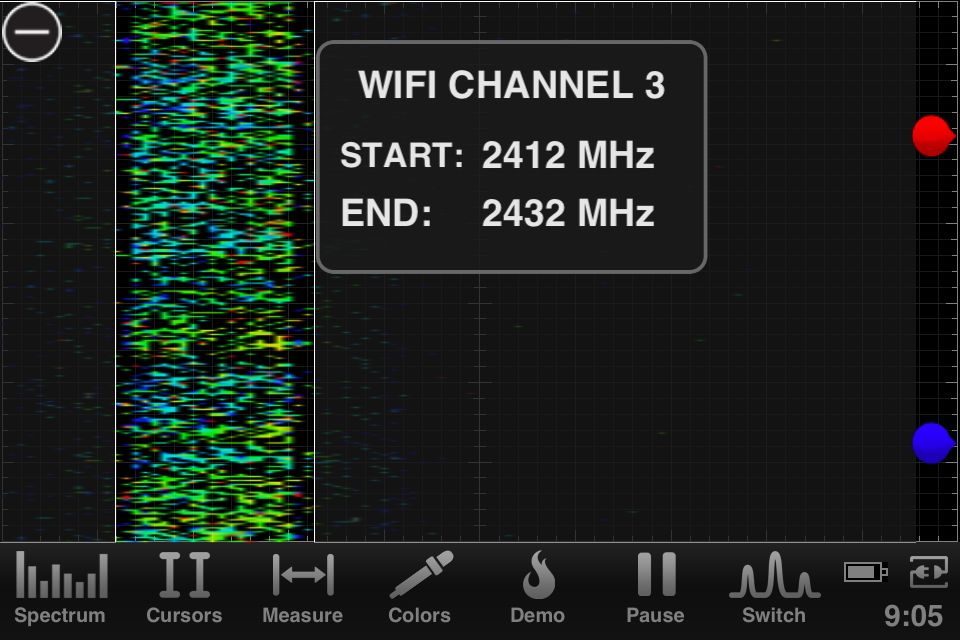

| The 2.4GHz band is a busy place. Your wireless internet operates in this range, as well as other electronic devices such as baby monitors, cordless phones, garage door openers, and microwave ovens. Since WiFi can extend as far as a football field, nearby buildings or residences can also cause interference. This activity is organized into channels. WiPry-Spectrum allows you to see exactly where noise is coming from along the ‘spectrum’ so that you know which channels to avoid. In the example above, you would avoid channel 3 (along with any overlapping channels) because it has the most noise. Then, you would select channel 10 (or another channel without interference). Now you can answer the question: which channel should my wireless network use? |
 |
WiPry-Spectrum
Product Specs
- Frequency Range: 2.4-2.495 GHz
- Antenna: External with SMB
- Amplitude Range: -40dBm to 20dBm
- Amplitude Resolution: 2.0dBm
- Resolution Bandwidth: 1MHz
- Sweep Time: 200ms
|
 |
Buy WiPry-Spectrum Online:
discontinued, please contact us for a direct replacement
Buy WiPry-Combo Online:
discontinued, please contact us for a direct replacement
Buy WiPry-Power Online:
|
FAQ
WiPry-Spectrum can help you optimize your network settings. It can also help you identify rogue access points and polluters on the 2.4GHz ISM band.
WiPry-Spectrum will allow you to view which frequencies in the spectrum are already in use or have a high noise floor. Selecting a channel with a low reading will yield increased throughput and lower latency.
For specific frequency measurements, you can use the cursors or the divisions on the screen. To view WiFi channels, click on the plus sign in the top left corner. Then, tap on any of the channel numbers listed. It is also possible to enable specific WiFi guides such as 802.11b, 802.11g, 802.11n -20MHz (2.4GHz only). To change the channel map, go to the menu bar and tap Measure. The option at the bottom of the menu is WiFi guide. This will enable you to manually select a guide. The default is 802.11n - 20MHz.
Yes, you do need to install the app, WiPry. The app is easy to install and available for free in the Apple App Store.
The gain of the supplied antenna is 1dBi.
The center frequency of the supplied antenna is 2.45GHz.
Yes. It is also possible to email the screenshot directly from your device.
Yes. Touch and hold the pause / play menu icon and it will change into single shot mode. After the mode has been changed, tap the single shot icon and the next event will be captured and held. To go back to pause / play mode, touch and hold the single shot icon.
No. WiPry-Spectrum was designed for WiFi and 2.4GHz applications.
No, it is not. The RF span is 2.4-2.495GHz.
We have included internal attenuation in the design of WiPry so that you can look at higher power signals without damaging the detectors.
20dBm is the max. If you need to make higher power measurements, please make sure that you use external attenuation to bring the power level below 20dBm.
External attenuation allows you to apply an offset (either gain or attenuation) to bring the measurement into range.
You will need the conducted measurement kit even if you still plan to make radiated measurements.
There are many manufacturers of attenuators. Google 'RF Attenuators' for a large listing.
We will make attenuators if the demand is large enough. Please drop us a note if you are interested.
If you're using an iPhone / iPod touch, you can use WiPry-Spectrum continuously for approximately five hours.
If you're using an iPad, you can use WiPry-Spectrum continuously for approximately eight hours.
Please understand that these estimates are just that, estimates. Your results may vary based on your background usage level (WiFi, email push, other apps, etc).
Yes, WiPry-Spectrum comes with a one year warranty.
WiPry-Spectrum works on all generations of the iPod Touch, iPhone, and iPad devices running iOS version 3.1.3 or higher. It is made for:
|
|
iPod touch (1st, 2nd, 3rd and 4th generation)
iPhone 5 (al models)
iPhone 4S
iPhone 4
iPhone 3GS
iPhone 3G
iPhone
iPad 3
iPad 2
iPad
|
|
|
|
|
|
|
