Data Acquisition Monitors
VERTIV have discontinued manufacturing the
Watchdog 15 and Watchdog 100 Products.
We have no more inventory on WD15 and WD100.
We do have accessories still available in limited quantities.

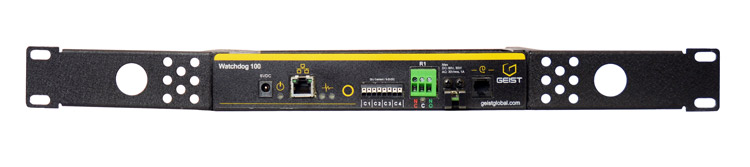

The WatchDog 100 is a self-contained unit with on-board temperature and humidity/dew-point sensors. It has an input capacity of eight external sensors and an output of one NO/NC relay contact for triggering external devices like an auto-dialer.
Like with all other ITWatchDogs environmental monitors, the WatchDog 100 allows users to keep an eye on remote conditions from a secure web interface and receive SNMP, E-mail, text message and voice call* alert notifications when user-adjustable thresholds are exceeded. More........
* Voice call alerts require an auto-dialer which is optional

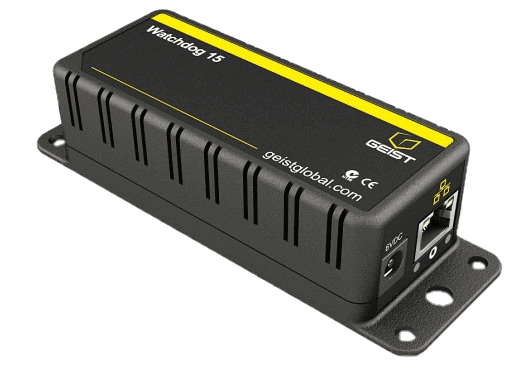

The WatchDog 15 is a self-contained unit with on-board temperature and humidity/dew-point sensors. It has an input capacity of four external sensors.
The WatchDog 15 allows users to keep an eye on remote conditions from a secure web interface and receive SNMP, Email, and text message alert notifications when user-adjustable thresholds are exceeded. More.....

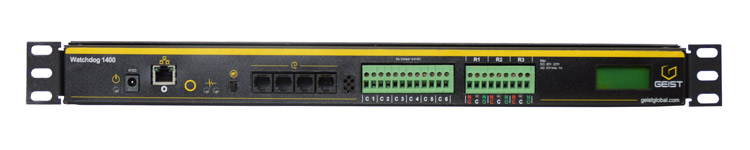

The Watchdog 1400 (Old Name - RelayGoose II) environmental monitor provides Web-based remote surveillance of temperature and additional sensors connected to the unit. It comes equipped with 4 digital and 6 analog sensor ports, LCD display with scrolling measurements, built-in audible alarm and 3 relay output ports.�It is especially useful for monitoring environmental conditions in critical applications such as data centers, server rooms, network closets or other critical facilities. �The relay outputs allow for automatic response upon alarm. More.....

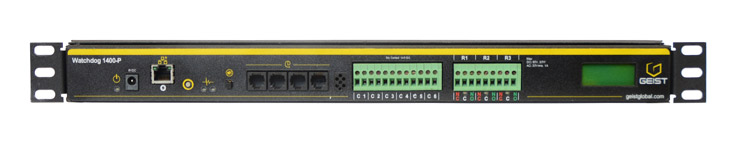

The Watchdog 1400-P [Old Name - RelayGoose IIP] environmental monitor provides Web-based remote surveillance of temperature and additional sensors connected to the unit. It comes equipped with 4 digital and 6 analog sensor ports, LCD display with scrolling measurements, built-in audible alarm and 3 relay output ports. It is especially useful for monitoring environmental conditions in critical applications such as data centers, server rooms, network closets or other critical facilities. The relay outputs allow for automatic response upon alarm.
Built-in Power over Ethernet (PoE)
Built-in PoE converges power and data in between the switch and the Watchdog 1400-P, eliminating the need for electrical wiring. Power adapter is provided for applications without PoE support.

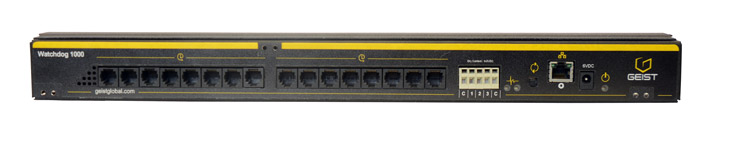

An expanded Watchdog 1000 with 16 external sensor jacks and three I/O ports in a rack mount. Ideal for cabinet monitoring applications. Contains an internal temperature sensor. The RJ-12 receptacles can use remote termperature, humidity, and air flow sensors with up to 600' of aggregate cable length. The three I/O ports can be used for door position sensors, water sensors, or current transformers.
Plug-in wall transformer included. Up to four Web Cameras are supported.
Note: Webcam, door sensors, and other remote sensors are sold separately
Details pertaining to the Watchdog 1000 .......
This add-on accessory presents real time logging and graphing of voltage, amperage, real power, apparent power, power factor and kilowatt-hour to provide trend analysis and power metrics for future planning. The device enables users to set alarm thresholds for above mentioned measurements and remotely reboot locked systems or control system power via the secure user interface from anywhere in the world.
Monitors
Full Product Catalog - 5 Mb
