Turn any environment into a dynamic workspace. The Roll-Up III digitizer is portable and engineered with GTCO CalComp by Turning Technologies exclusive patented Redundant Grid Technology™ for greater durability and ruggedness. Simple setup makes the Roll-Up III ideal for use in the office or on the road.
|
Minimal Setup for Maximum Results
Installation is quick and easy. Built-in USB connectivity allows power to be supplied through a USB port, providing immediate access to a desktop or laptop computer and with a wide selection of applications. Create precise designs with innovative sensing technology.
Dependable Durability
Extremely light weight and mobile, the Roll-Up III can be easily rolled for storage or transported to various locations. Made with resistant state-of-the-art materials, including a tough Lexan® work surface, the digitizer keeps a smooth, flat surface and features dual orientation that allows the controller housing to be configured on the right or left edge of the digitizer.
Greater Functionality
Use a variety of pointing devices, including a pen-shaped stylus for increase precision and accuracy. Fitting for quantity takeoffs, the MaxVu™ cursor features a wide viewing area for proper digitizing.

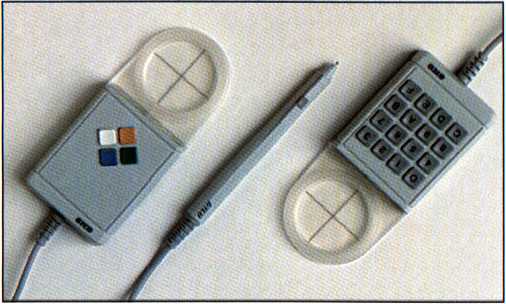

- Corded 16-button MaxVu cursor
Corded 4-button MaxVu cursor - Obsolete and no longer available. Use the 16 Button
- Corded stylus with tip and 2 side switches
RD-PH - PLANS HOLD DOWN (2 CLAMPS) RD-A-84-00352-01
Order Clamps Here:
USB to Serial Adaptor
Looking for a way to connect your GTCO, Calcomp or Summagraphics serial device to the USB port on your PC? Our USB High-Speed Serial Adapter provides a simple and reliable solution. This adapter is recommended by GTCOCalcomp due to its dependability and compatibility. Windows 7 & Windows 10 32/64 bit compatible. This adaptor works with and is recommended for use with the GTCOCalcomp Tabletworks Driver. (Also works with vtablet.com driver)
|
|
Specifications
Platform Support |
PC |
Software Drivers |
Wintab compliant, Microsoft Windows® 95, 98, ME, NT, 2000, XP, Vista, 7 and 8 |
Hardware Interface |
USB standard: RS-232 and QuikRuler port (requires optional power supply) |
Thickness |
0.078 in/2.0 mm |
Roll Diameter |
8 in/203 mm recommended |
Resolution |
Up to 2,540 lines per inch/100 lines per mm |
Proximity |
0.5 in/12.7 mm |
Baud Rate |
Up to 38,400 |
Technology |
Electrostatic (Note: for digitizing applications involving conductive inks; GTCO's Super L™ Series is recommended) |
Output Formats |
GTCO Type 5/5A Binary or ASCII, Summagraphics Microgrid, CalComp 9500 |
Operating Modes |
Point, line, continuous, incremental |
Power Supply |
None required when connected via USB port
When connected via serial cable 120V/60 Hz standard,
100-240V/50-60 Hz optional |
Operating Temperature |
40 to 115°F/5 to 46°C |
Storage Temperature |
0 to 150°F/-18 to 66°C |
Humidity Range |
0 to 90%, noncondensing |
Warranty |
Two-year limited U.S. warranty, free technical support
Extended warranty available - U.S. only |
Included Components |
- Roll-Up III digitizer and controller
- Transducer
- CD with TabletWorks driver and User's Manual
- USB cable
- Shipping/storage tube with insert
- Accessory pouch |
Digitizer Options and Physical Dimensions
Model |
Active Area |
Footprint |
Weight |
Average Shipping Weight |
2024 |
20 x 24 in/508 x 610 mm |
28 x 29 in/711 x 737 mm |
4 lbs./1.8 kg |
13 lbs./5.9 kg |
3036 |
30 x 36 in/762 x 914 mm |
35 x 44 in/889 x 1,118 mm |
6 lbs./2.7 kg |
17 lbs./7.7 kg |
3648 |
36 x 48 in/914 x 1,219 mm |
41 x 56 in/1,041 x 1,422 mm |
7.25 lbs./3.3 kg |
21 lbs./9.5 kg |
Transducer Options
- Corded 16-button MaxVu cursor
- Corded 4-button MaxVu cursor
- Corded stylus with tip and 2 side switches |
Other Options
- Plan hold down clamps
- Deluxe travel case
- QuikRuler LCD module
- Serial interface cable and power supply |
Note: Roll-Up III technology provides outstanding portability and reliability, however the Roll-Up III does not operate reliably with documents printed with conductive inks. Blueprints and copies typically do not contain any conductive inks; however some inkjet printers may use black conductive inks. For these types of documents, we recommend the Super L VI digitizer, which is not affected by conductive inks. Another option is to use a dye-based ink instead.
Digitizer Pricing - Please email [email protected] or
Call: 1-877-902-2979 ext 101 for sales.
Accessories - Pricing
Stylus - LF-A-11-00479-01-R RD-STY-2R3 |
|
4 Button Cursor - LF-A-11-00304-01-R RD-4BC - OBSOLETE |
|
16 Button Cursor - LF-A-11-00305-01-R RD-16R3 |
|
I/O Cable (RS-232) - RD-A-34-00110-02-R RD-IOC |
|
Power Supply & RS232 Kit for Roll Up 3 RD3-RS232-PSKIT |
|
USB to Serial Adaptor USBADPT-KS |
|
Plan Hold Down Clamps (Set of 2) for Roll Up - RD-A-84-00352-01 RD-PH |
|
|
|
