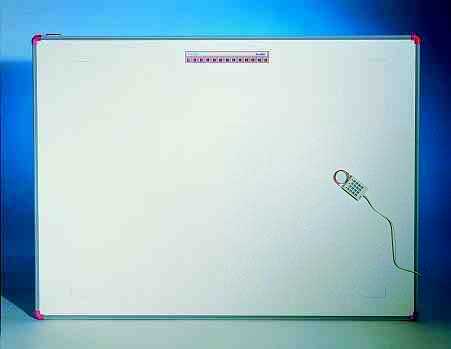

AccuTab Digitizer
(Obsolete - No Longer Available)
Replaced by the
Calcomp DB VI High Accuracy Series for GIS |
 |
|
|
High Performance Digitizer Systems
For GIS and Mapping Professionals...
Superior Data Integrity Guaranteed!
|
| |
US Prices
CDN Prices
Privacy and Security Policy |
| |
|
Canadian Customers please visit our Canadian Web Site for Canadian Pricing etc. https://www.digitizer.ca/
|
| GTCO's AccuTab Digitizer sets a new standard for superior data integrity in a digitizing tablet. From engineering through production, every aspect of the AccuTab series has been designed to provide the highest level of data integrity available today - guaranteed.AccuTab's coordinate resolution, measurement accuracy, repeatability, product reliability, and system compatibility are all backed by GTCO's exclusive five year performance guarantee. |
| Unsurpassed Reliability and Data Integrity |
| |
While many digitizers require periodic recalibration to maintain specifications, AccuTab is accurate by virtue of its design. AccuTab uses the most up-to-date electronic components and technology and will maintain its original data integrity without the need for periodic recalibration, adjustment or maintenance. Best of all, AccuTab is backed by GTCO's exclusive 5 year Performance Guarantee! |
| Compatibility |
| |
The AccuTab is compatible with all leading GIS, Mapping and CAD hardware and software, including Intergraph© MicroStation© and Class One compatibility with ESRI's ARC/INFO© software. |
| High Precision Transducers |
| |
AccuTab Digitizers come standard with a 16 button cursor featuring an optical quality glass reticle with ultra fine etched crosshairs. An optional 16 button illuminated cursor reduces eye strain, improving the operator's digitizing accuracy. |
| Ease of Use |
| |
Initial set up and switching between applications is easy with GTCO's exclusive AccuSet® menu which allows simple one-step digitizer configuration for all leading software applications. |
| Performance Guarantee |
| |
AccuTab Digitizers come with GTCO's exclusive 5 year Limited Performance Guarantee to cover resolution, repeatability, and accuracy. If at any time during the 5 years your AccuTab doesn't perform within specifications, GTCO will repair or replace your AccuTab and return the tablet with a report verifying your AccuTab's performance to specifications. (contact GTCO for a complete copy of the exclusive AccuTab Performance Guarantee) |
| Standard Equipment |
| |
AccuTab Digitizer with Controller
16 Button Cursor with optical glass reticle and ultrafine etched crosshairs
Drivers for ADI, Windows©, Mouse
9 to 25 Pin Adaptor
Power Supply
Pedestal Mounting Brackets
AccuSet Menu
User's Manual
|
| Standard Features |
| |
Thickness 1.34" (34 mm)
Resolution Up to 0.00025" (4000 lpi), 0.006 mm (150 lpmm)
Absolute Accuracy ± 0.005" standard accuracy (± 0.127 mm)
(Written Certification) Optional Accuracies: ± 0.002" (± 0.051 mm)
±0.005" (± 0.127 mm)
Repeatability 1 LSB (least significant bit)
Proximity 0.5" (13 mm) nominal
Output Formats GTCO Type 5/5A Binary and ASCII, Summagraphics Microgrid, CalComp 9500 Interface RS-232 Serial Interface
Self Diagnostics Automatic testing of tablet, drive electronics, and microprocessor
Operating Modes Point, Line, Continuous, Line and Continuous Incremental,
Remote Request
Hardware Interface - USB Standard (RS-232 optional)
Baud Rates 1200 to 38,400
Operating Temp. 41 ° F to 115°F (5°C to 46°C)
Humidity Range 10% - 90%, non-condensing
Storage Temp. 0 ° F to 150°F (-18°C to 66°C)
Altitude Range 0 to 10,000 feet, 0 to 3077 meters
Certification FCC-B, ETC (UL), CE (VDE), CSA
Cursor Switches Elastomeric keypad, rated life over 1 million actuations
Warranty Two Year Limited US Warranty, Free Technical Support
Performance Guarantee Five Year Limited Performance Guarantee
|
| Optional Equipment/Accessories |
| |
Pointing Devices 16 Button Illuminated Cursor, 4 Button ClearVu® Cursor, Red Bullseye Reticle for Cursor, Magnifier, Binary Stylus
Drivers WINTAB/Tabletworks Driver
Accessories Pedestal Mounting Bases
|
| |
Equipment Dimensions |
| Model |
ACTIVE Area |
Footprint |
Avg.Wt. |
Ship Wt. |
Metric Dimensions |
|
|
|
| 2024 |
20" x 24" |
29" x 34" |
23 lbs |
30 lbs |
(A2 , 508 mm x 610 mm) |
( 737 mm x 864 mm) |
(10.5 kg) |
(13.6 kg) |
| 2436 |
24" x 36" |
35" x 48" |
26 lbs |
45 lbs |
(A1, 610 mm x 914 mm) |
( 889 mm x 1219 mm) |
(12 kg) |
(20.4 kg) |
| 3648 |
36" x 48" |
47" x 63" |
40 lbs |
71 lbs |
(A0, 914 mm x 1219 mm) |
(1194 mm x 1600 mm) |
(18 kg) |
(32.2 kg) |
| 4260 |
42" x 60" |
52.5" x 68" |
55 lbs |
104lbs |
(A00, 1067 mm x 1524 mm) |
(1334 mm x 1727 mm) |
(25 kg) |
(47.2 kg) |
|
|
|
|
|
|
