Current Viewing Resistors

Series SDN-414

 T&M Research Products



SERIES SDN-414

CURRENT VIEWING RESISTORS

DESCRIPTION

Miniature terminating type CVR built into a BNC connector case for panel or chassis mounting.

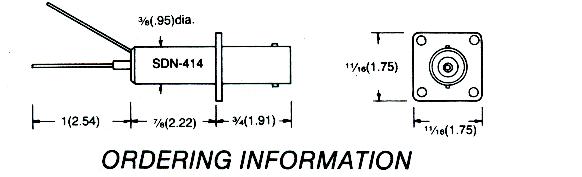

SPECIFICATIONS

SDN-414- 2 Watt Units - 1 5/8 Inch Case


Model  Resistance Ohms  Bandpass MHz  Risetime Nsec  Emax Joules
SDN-414-01  .01  400
SDN-414-025

.025  1200  0.3
SDN-414-05  .05  2000  0.18
SDN-414-10  .1  2000  0.18


When ordering specify model number,wattage, and tolerance.  Example: SDN-414-10, 2 watts, 4%.



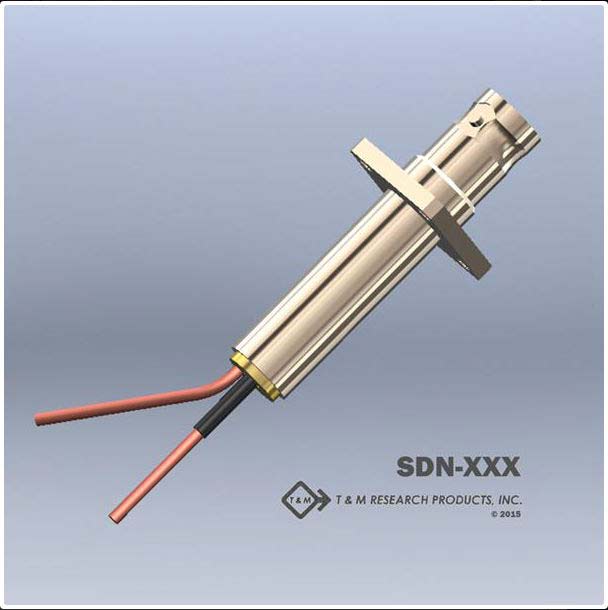

SERIES SDN

DESCRIPTION

Miniature terminating type CVR built into a BNC connector case for panel or chassis mounting.

  This series is an extended resistance range version of the SDN-414 series.



SPECIFICATIONS

2 Watt Units - 1 13/16 Inch Case

Model  Resistance Ohms  Bandpass MHz  Risetime Nsec  Emax Joules
SDN-001  .001  12 30 12
SDN-0025 .0025  12 30 28
SDN-005 .005  400 1 3
SDN-015 .015 1200 0.30 1.5
SDN-10 .10 2000 .18 2
3 Watt Units - 3 Inch Case

 Model  Resistance Ohms Bandpass MHz Risetime Nsec Emax Joules
SDN-25  .25  1200  0.30  5
SDN-50  .50  800  0.45   2.5

4 Watt Units - 4 Inch Case

Model  Resistance Ohms  Bandpass MHz  Risetime nsec  Emax Joules
SDN-100 - OBSOLETE 1.00  800  0.45





When ordering specify model number(SDN,SSDN,SPT), wattage, and tolerance.

Example: SDN-50, 3 watts, 4%.


SSDN Series


SSDN-414-01/024/05/10
Model Resistance Ohms Bandpass MHz Risetime nsec Emax joules
SSDN-414-01 .01 400 1 6
SSDN-414-025 .025 1200 0.3 3
SSDN-414-05 .05 2000 0.18 2
SSDN-414-10 .1 2000 0.18 1

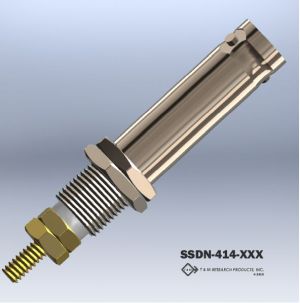

SSDN-414 CVR Image - BNC Connector




3 Watt Units  - 3 Inch Case

Model Resistance Ohms Bandpass Mhz. Risetime nsec Emax joules
SDN-25 .25 1200 0.30 5
SSDN-25 .25 1200 0.30 5
SPT-25 .25 1200 0.30 5
SDN-50 .50 800 0.45 2.5
SSDN-50 .50 800 0.45 2.5
SPT-50 .50 800 0.45 2.5
