Current Viewing Resistors

Series A

 T&M Research Products



Details

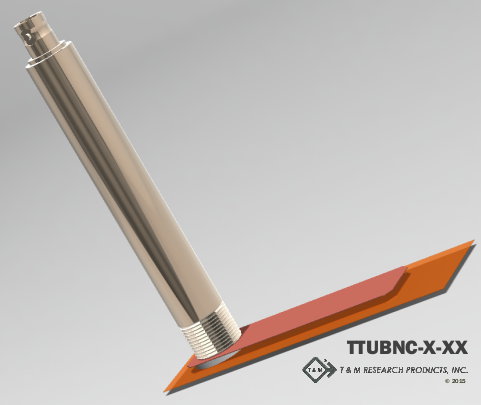

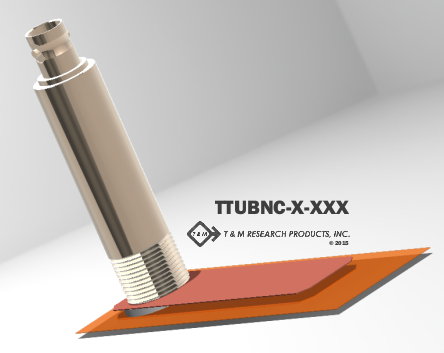

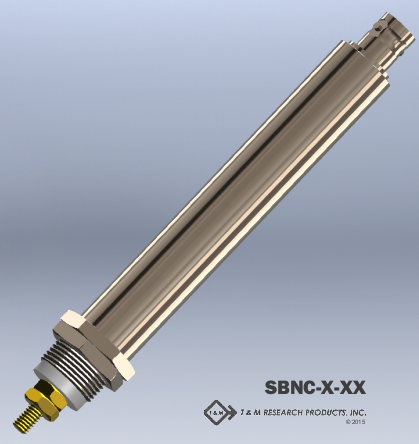

The standard A series comes with a stud input and a BNC output.  It will appear on the quote as: 'SBNC-X-XX'.

Other connector options for input and output should be requested in the comments box of the 'request a quote' window.  For example; stud input and N output will be denoted by: 'SN-X-XX' in the quote response, BNC input and SMA output will be denoted by 'BNCSMA-X-XX' in the quote response.  Custom thread sizes for input stud also available and should be requested in the comments box.

All other questions and concerns in comment box will be addressed in the quote response.


series a

DESCRIPTION

Small terminating type CVR available with BNC, GR, UHF, N, HN and C connectors.

Other connector options available upon request. Standard connections are the "S"

input (8-32 stud with threaded case) BNC output connector.



SPECIFICATIONS

Click on the model number to download the technical drawing in PDF format

4 Watt Units - 2 3/4 Inch Case*

Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
A-2-01 .01 400 1 16
A-5-05 .05 2000 0.18 5
A-2-005 .005 200 2 15
A-4-0025 .0025 48 8 30
A-8-001 .001 12 30 70




5 Watt Units - 2 3/4 Inch Case*

Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
A-1-05 .05 1200 0.30 20
A-2-025 .025 400 1 40
A-5-1 .10 1200 0.30 10
A-4-005 .005 48 8 60





6 Watt Units - 4 9/16 Inch Case*

Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
A-1-1 .10 800 0.45 40
A-2-05 .05 400 1 80
A-5-2 .20 1200 0.30 20



*Case lengths are for the SBNC-X-X model type, case lengths for other connectors will vary slightly.  "S" modification - Current input connection is an 8-32 stud with the case threaded 5/8-24, supplied with two nuts.  Unthreaded case available if specified.




ORDERING INFORMATION

When ordering specify model number, wattage, output connector and tolerance.

Example: SBNC-2-01, 4%

PLEASE CONTACT US TO ORDER OR REQUEST A QUOTE
