ADC-11/10 and ADC-11/12
Do you need a data acquisition device with up to 11 input channels?
- Large number of channels
- No power supply required
- Digital output for control
- Data acquisition software included

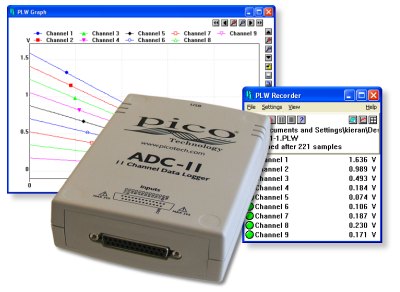

The Pico ADC-11 data loggers provide you with a low-cost answer to your data acquisition needs. The ADC-11 provides you with 11 channels of analog input — all in a small unit that’s easy-to-use.
Resolution and Accuracy
Two different versions of the ADC-11 are available: the ADC-11/10 features 10 bit resolution, whilst the ADC-11/12 has 12 bit resolution — making it suitable for detecting very small signal changes.
With data acquisition the accuracy of your measurements is paramount which is why the ADC-11/10 is accurate to within 1 %, and the ADC-11/12 to within 0.5 %.
USB connection
The USB interface makes the ADC-11 easy to connect to any modern laptop or desktop PC and allows you to connect up to 4 units to one PC — giving you up to 44 channels of data acquisition with a very low cost per channel.
Terminal block
To simplify the connection of your sensors a terminal block is available for the
ADC-11. This connects to the input of the ADC-11 and provides screw terminals to allow you to quickly connect and disconnect your sensors.
No need for power supplies or batteries
The ADC-11 is powered directly by your PC — eliminating the need for batteries or a separate power supply, and making them ideal when you need a portable data acquisition solution.
Control alarms and other devices
The ADC-11 data loggers include digital outputs — these can be used to control alarms or other devices, additionally these outputs can also be used to power sensors such as thermistors (outputs can be controlled using the programming API and cannot be controlled using PicoLog).
Data acquisition software
All products in the Pico data logger range come complete with PicoLog — this powerful, but flexible, data acquisition software allows you to collect, manipulate, analyse, and display and export data.
Updates to PicoLog are available from our website, and you can download a demo of PicoLog to see just how versatile it is.
Low cost data acquisition
If you need a data acquisition product capable of measuring a large number of channels the Pico
ADC-11 data loggers offer you a low cost solution that does not require a power supply, can connect to both USB and parallel ports, and come complete with data acquisition software.
Specifications
| ADC-11/10 (PP241 OR PP239) | ADC-11/12 (PP240 OR PP242) | |
|---|---|---|
| Number of channels | 11 | |
| Digital outputs (3.3 V) |
2 | 2 |
| Sampling rate # | 20 kS/s | 20 kS/s |
| Input type | Unipolar - single ended | |
| Voltage ranges | 0 to 2.5 V | |
| Input connector | D25 Female | |
| AC/DC coupling | DC coupled | |
| Overload protection | ±30 V | |
| Accuracy | 1 % | 0.5 % |
| Input impedance | >1 MΩ | |
| Resolution | 10 bits | 12 bits |
| Environmental | 20-30 °C for quoted accuracy, 0 to 70 °C overall. 20-90 %RH | |
| PC connection | USB 1.1 | |
| Power supply | Powered directly from the PC | |
| Supplied software | PicoScope 5 (oscilloscope, spectrum analyser, meter) PicoLog (data logger) Software Development Kit Software is supplied on CD and is compatible with 32-bit editions of Windows XP (SP2) and Vista. |
|
| Language support (software) | PicoLog: English PicoScope 5: English, French, German, Spanish and Czech |
|
| Language support (documentation) | User’s guide: English Installation guide: English, French, German, Italian, Spanish, Swedish, Dutch, Danish |
|
# Sampling rates are divisible by the number of channels in use.
