Data Acquisition Pico Scopes Oscilloscopes 9300 Series


PicoScope 9300 Series Sampling Oscilloscope

 pico logo

Features and Performance at a Price You Can Afford

 US Prices
CDN Prices

Privacy and Security Policy

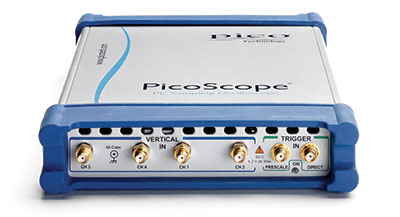

PicoScope 9300

At 20 GHz bandwidth the PicoScope 9300 sampling oscilloscopes address digital and telecommunications applications of 10 Gb/s and higher, microwave applications up to 20 GHz and timing applications with a resolution down to 64 fs. Optional 11 Gb/s clock recovery, optical to electrical converter or differential, de-skewable Time Domain Reflectometry sources (40 or 60 ps) complete a formidable, small-footprint and cost-effective measurement package.

Key specifications:

  • 20 GHz (17.5 ps) bandwidth
  • 1 MS/s sample rate to 32 kS store
  • 0.064 ps, 15 THz effective sample rate
  • 14 GHz prescaled & 2.5 GHz direct trigger
  • Pattern trigger of length 7 to 223-1
  • Jitter <1.8 ps rms 20 ppm delay
  • 16 bit, 60 dB dynamic range


PicoScope 9300 Models Compared

9300 features9300 SpecificationsPDF download

PicoScope 9300 Models Compared
  9301 [PP890] 9302 [PP891] 9311 [PP892] 9312 [PP893]
DISCONTINUED		 9321 [PP894]
Best repl. for 9312		 9341 [PP895]
20 GHz  sampling oscilloscope
Clock recovery (11.3 Gb/s)
Optical Input (9.5 GHz / 11.3 Gb/s)
TDR output (40 ps / 250 mv)
TDR output (60 ps / 2.5 to 6V)
Accessories included
US List Price $14,995 $18,994.80 $18,994.80 SEE 9321 as alternative $29,495.40 $22,395.00
Order Online



PicoScope 9300 Series Specifications -->


Advanced Features of the 9300 Series -->

Oscilloscope and Spectrum Analyzer Software

PicoScope 9301 accessories included

9300 Standard Accessories Kit

  • PicoSample™ 3 software CD
  • Quick Start Guide
  • Power supply, universal input
  • USB 2.0 cable, 1.8 m
  • SMA/PC3.5/2.92 wrench
  • Storage and carry case
  • 2 x Connector saver adaptor 18 GHz 50 Ω SMA
  • LAN cable, 1 m
close

Oscilloscope and Spectrum Analyzer Software

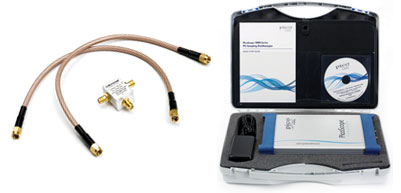

PicoScope 9302 accessories included

9300 Standard Accessories Kit

  • PicoSample™ 3 software CD
  • Quick Start Guide
  • Power supply, universal input
  • USB 2.0 cable, 1.8 m
  • SMA/PC3.5/2.92 wrench
  • Storage and carry case
  • 2 x Connector saver adaptor 18 GHz 50 Ω SMA
  • LAN cable, 1 m

1x 18 GHz Divider Kit, comprising

  • 1x 18 GHz, 6 dB, SMA Divider
  • 2x Precision 30cm SMA Cable
close

Oscilloscope and Spectrum Analyzer Software

PicoScope 9311 accessories included

9300 Standard Accessories Kit

  • PicoSample™ 3 software CD
  • Quick Start Guide
  • Power supply, universal input
  • USB 2.0 cable, 1.8 m
  • SMA/PC3.5/2.92 wrench
  • Storage and carry case
  • 2 x Connector saver adaptor 18 GHz 50 Ω SMA
  • LAN cable, 1 m

2x 18 GHz Divider Kit, each containing

  • 1x 18 GHz, 6 dB, SMA Divider
  • 2x Precision 30cm SMA Cable

2x 18 GHz TDR Kit, each comprising

  • 1x Precision 80 cm SMA Cable
  • 1x 18 GHz, SMA(f-f) within series adapter
  • 1x 18 GHz, SMA(m) reference short
  • 1x 18 GHz, SMA(m) reference load

2x 10 GHz 20dB SMA(m-f) attenuator

close

Oscilloscope and Spectrum Analyzer Software



PicoScope 9312 accessories included
DISCONTINUED SEE 9321 as Replacement.

    9300 Standard Accessories Kit

  •  PicoSample™ 3 software CD
  •  Quick Start Guide
  •  Power supply, universal input
  •  USB 2.0 cable, 1.8 m
  •  SMA/PC3.5/2.92 wrench
  •  Storage and carry case
  •  2 x Connector saver adaptor 18 GHz 50 Ω SMA
  •  LAN cable, 1 m

    2x 18 GHz Divider Kit, each containing

  • 1x 18 GHz, 6 dB, SMA Divider
  • 2x Precision 30cm SMA Cable

    2x 18 GHz TDR Kit, each comprising

  • 1x Precision 80 cm SMA Cable
  • 1x 18 GHz, SMA(f-f) within series adapter
  • 1x 18 GHz, SMA(m) reference short
  • 1x 18 GHz, SMA(m) reference load

    2x 12 GHz N(f) to SMA(m) inter-series adapter

close

Oscilloscope and Spectrum Analyzer Software



PicoScope 9321 accessories included

9300 Standard Accessories Kit

  • PicoSample™ 3 software CD
  • Quick Start Guide
  • Power supply, universal input
  • USB 2.0 cable, 1.8 m
  • SMA/PC3.5/2.92 wrench
  • Storage and carry case
  • 2 x Connector saver adaptor 18 GHz 50 Ω SMA
  • LAN cable, 1 m

1x 18 GHz Divider Kit, comprising

  • 1x 18 GHz, 6 dB, SMA Divider
  • 2x Precision 30cm SMA Cable
close

Oscilloscope and Spectrum Analyzer Software



PicoScope 9341 accessories included

9300 Standard Accessories Kit

  • PicoSample™ 3 software CD
  • Quick Start Guide
  • Power supply, universal input
  • USB 2.0 cable, 1.8 m
  • SMA/PC3.5/2.92 wrench
  • Storage and carry case
  • 4 x Connector saver adaptor 18 GHz 50 Ω SMA
  • LAN cable, 1 m
close
