MSR 175
|
 |
Shock Transportation Data Logger
|
|

Protect your goods!

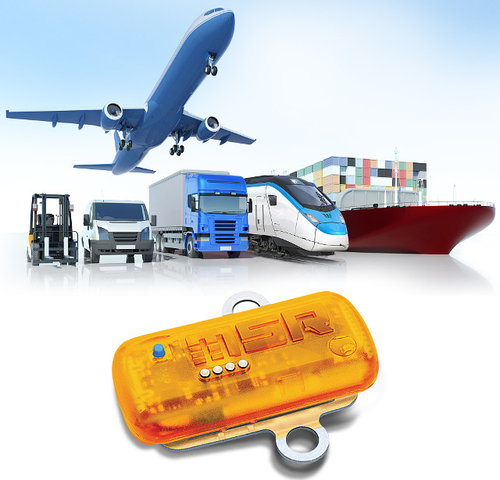

The MSR175 stand-alone data logger uses high-resolution sensors to continuously record what happens to your goods during transportation. The logger data can then be analysed very accurately – be it in order to ascertain damage or to improve transport packaging – using the “MSR ShockViewer” software.
Collecting data for secure transportation
The two 3-axis acceleration sensors integrated in the MSR175 have working ranges of ±15 g and ±200 g. They record shocks and jolts at a measurement frequency of up to 5,000 measurements per second. The installed memory of the logger is capable of storing over 2 million measured values, which is sufficient for more than 1,000 shocks. In addition, the MSR175 data logger measures and records temperature profiles from -20° to 65 °C. Additionally, a second type variant of this data logger is available with internal humidity, pressure and light sensors.
Easy-to-use pc software: Thanks to the new MSR175 Dashboard software which includes NEW report generator, preparing the MSR175 for its mission and reading its measured data via USB is very easy. The data can be analysed and clearly presented in a chart using the intuitive MSR ShockViewer software. In the process, you can analyse critical events at a glance and document them conclusively in a report; a frequency analysis facilitates identifying the causes of shock events.
-> MSR175 With GPS can be viewed at this link

Available in 4 variants, 2 Variants here and 2 on this page [175 with 2 year replaceable battery]
Variant 1 of the MSR175 includes two internal 3-axis acceleration sensors (±15 g and ±200 g) as well as one internal temperature sensor. Rechargeable LiPo-battery 230 mAh
Order code: MSR175B16T2AA5
Variant 2 of the MSR175 includes two internal 3-axis acceleration sensors (±15 g and ±100 g) as well as one internal temperature sensor, one internal humidity sensor, one pressure sensor and one light sensor.
Order code: MSR175B16T6H3P5AA5L2
Variant 2 of the MSR175 includes two internal 3-axis acceleration sensors (±15 g and ±200 g) as well as one internal temperature sensor, one internal humidity sensor, one pressure sensor and one light sensor. Rechargeable LiPo-battery 230 mAh
Order code: MSR175B16T6H3P5AA5L2
Variant 3 of the MSR175 includes two acceleration sensors (±15g and ±200g) 1 temperature sensor and stores over 2 million measured values features a 2 year replaceable battery (Variant 1 & 2 have rechargeable batteries) capable of recording at least 700 shock episodes. [More details here....]
Order Code: MSR175B54T2AA5
Variant 4 of the MSR175 includes two acceleration sensors (±15g and ±200g) 1 temperature, 1 Humidity, Air Pressure and Light sensors and stores over 2 million measured values. Features a 2 year replaceable battery (Variant 1 & 2 have rechargeable batteries) capable of recording at least 700 shock episodes. [More details here....]
Order Code: MSR175B54T6H3P5AA5L2
-> MSR175 With GPS can be viewed at this link

Minimum order quantity per variant: 10 units.
Technical data of the sensors
Measured parameters |
Working range |
Accuracy |
Measurement/Storage rate |
3-axis acceleration |
±15 g and ±200 g (-20… 65 °C) |
±15 g sensor
±0.15 g (0...5 g, 25 °C)
±0.3 g (5...15 g, 25 °C)
200g Sensor
±2 g (0...15 g, 25 °C)
±5 g (15...100 g, 25 °C)
±10 g (100...200 g, 25 °C)
|
up to 6400/s (±15 %) |
Temperature |
-20… 65 °C |
±0.5 °C (-10… 65 °C) |
every 10 min. |
Relative humidity |
0…100% rel. humidity
-20… 65 °C |
±2% rel. humidity
(10…85%, 0… 40 °C)
±4% rel. humidity
(85…95%, 0… 40 °C) |
every 10 min. |
Air pressure absolute |
0…2000 mbar absolute
-20… 65 °C |
±2.5 mbar
(750…1100 mbar
absolute, 25 °C |
every 10 min. |
Light |
0…65,000 lx |
max. sensitivity at 500 nm |
every 10 min. |
DOWNLOAD THE MSR175 DATASHEET! - PDF 1.16 Mb>>>
General technical data
Housing: Design housing PC, encapsulated, IP67
Size & Weight: 47 x 16 x 54 mm (W x H x L), approx. 28 g
Memory capacity: Over 2,000,000 measurement values
Medium: Air, various liquids
Colour: Amber
Key: Start measurement/retrieve status
Power supply: LiPo-battery 230 mAh, charged via the USB connection, recording period up to 8 weeks
Options: Charging station (USB hub) for 7 MSR175 (item number B47002)

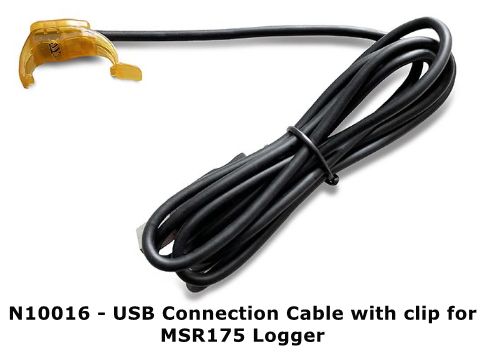

Interface: USB
PC software: free MSR ShockViewer basic version
extensive MSR ShockViewer pro version
Operating conditions: Temperature: -20… 65 °C
Storage conditions:
Temperature: 5… 45 °C (ideal storage condition for the battery)
Humidity: 10…95 % relative humidity, non-condensing
Standards: The MSR175 complies with EU-Directives RoHS/WEEE.
Abridged user manual for the 175 loggers at this link
Download the Latest Version of the 175 Software which includes the NEW REPORT GENERATOR
[This link will allow you to download the software in a compressed .zip file, extract and you can then run the program]
Order your MSR175 Shock Transportation Data Logger here
Order your 175 model 175B16T2AA5 here:
Order your 175 model MSR175B16T6H3P5AA5L2 here:
