Data Acquisition ITWatchDogs/Geist Remote Power Monitor
This add-on accessory presents real time logging and graphing of voltage, amperage, real power, apparent power, power factor and kilowatt-hour to provide trend analysis and power metrics for future planning. The device enables users to set alarm thresholds for above mentioned measurements and remotely reboot locked systems or control system power via the secure user interface from anywhere in the world.

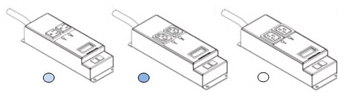

The RPM X2 is available in a number of variations meeting specific voltage, receptacle and plug type needs priced at only $229:
Online Item # |
A |
B |
C |
D |
E |
Part # |
RPM15-515R |
RPM15-C13 |
RPM20-515R |
RPM20-C13 |
RPM20-C19 |
Price |
|
NO LONGER AVAIL |
NO LONGER AVAIL |
NO LONGER AVAIL |
NO LONGER AVAIL |
Amps* |
15 |
15 |
20 |
20 |
20 |
Volts |
120 |
120 or 208 |
120 |
120 or 208 |
120 or 208 |
Receptacle Type / QTY |
5-15R / 2 |
C-13 / 2 |
5-15R / 2 |
C-13 / 2 |
C-19 / 2 |
Digital Input |
1 |
1 |
1 |
1 |
1 |
Power Switching |
YES |
YES |
YES |
YES |
YES |
10' Power Cord |
1 |
1 |
1 |
1 |
1 |
IEC or NEMA Plug Connector |
5-15P |
C-14 |
5-20P |
C-20 |
C-20 |
Twist-Lock Plug |
Optional |
N/A |
Optional |
N/A |
N/A |
Mounting Brackets |
YES |
YES |
YES |
YES |
YES |
* Maximum load per outlet is 12 amps
The RPM X2 is the perfect solution for a simple and economical means of determining how much power a specific device or power strip is consuming to help keep an eye on overall energy usage and prevent overloading of power circuit breakers. Alert notifications via SNMP traps, E-mail, SMS and voice call* can be set for when current starts to reach capacity.
With the RPM X2, facility managers are further given the ability to measure energy usage per individual client by setting friendly names per outlet. To achieve accurate results, amount of electricity used is measured and logged without the burden of continuous polling. Kilowatt-hour usage can easily be obtained per specified time frame.
Features include 'plug and play' capability providing quick and easy installation, an LCD display for local current monitoring, a resettable kilowatt-hour meter and the ability to set alarm thresholds via the environment monitor. The unit comes equipped with an extra digital sensor port. When the RPM X2 is plugged into another environmental monitor, it retains outlet friendly names, kilowatt-hour hours and each outlet's on/off state.

The RPM X2 has been UL and c-UL Listed per UL 60950 safety specifications and global configurations carry the CE Mark for Low Voltage and Emissions Directives and FCC Part 15 Class A regulation. Standard off-the-shelf, modified and custom systems are available to meet client specifications.
*Auto-dialer required
The RPM X2 is NOT a standalone device. It is supported by the MiniGoose II, MiniGoose XP II, WeatherGoose II, SuperGoose II, RelayGoose II and upcoming environmental monitors.
Article Written by TMS Net
Product Data Sheet
|
|
|
|
|
