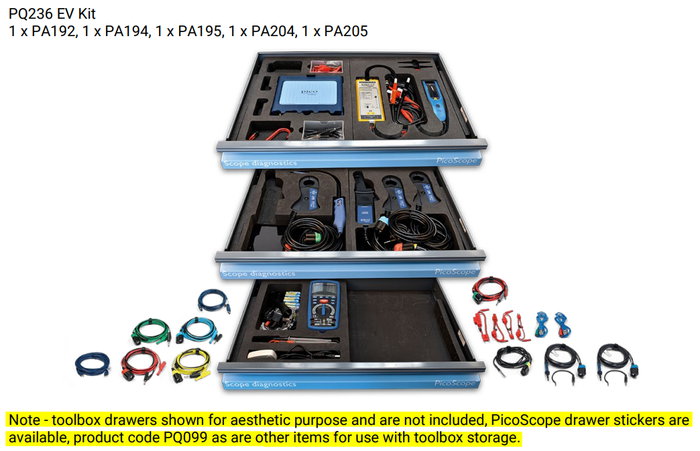

Today Pico Technology launches the new PicoScope 4425A Electric Vehicle (EV) kit. Designed to cover all vehicle types and powertrains, it provides workshops with a future proof system that handles vehicles incorporating high-voltage batteries and motor systems.
This latest version of the PicoScope 7 beta has many new features, including PicoDiagnostics, 30 languages and Full graph mode. Steve has written more about all the individual features and how to use them in this forum post.
Continuing with our mission to make vehicle diagnostics easier and faster…the new CAN Test Box gives you easy access to the 16 pins of the diagnostic connector that is fitted to all modern vehicles. Depending on the configuration of the vehicle, this may allow you to check power, ground and CAN Bus signal quality. With the test leads supplied you can connect your PicoScope lab scope to the CAN Test Box to monitor signals such as the CAN High and Low. More.....
These products have been designed to be compatible with many toolbox providers.
The foam trays come in two sizes: 185 mm(W) x 390 mm(D), and 370 mm(W) x 390 mm(D) depending on function. Both sizes include a removable 20 mm strip so they will fit in 370 mm deep trays. Available either pre-packed with various kit options, or empty if you have your kit already.
In addition to these foam trays we also have our trolley boom available for arranging your diagnostic station.

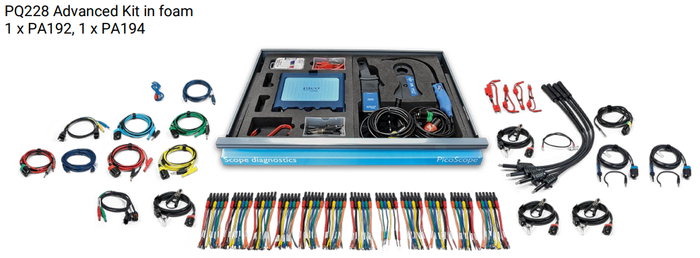

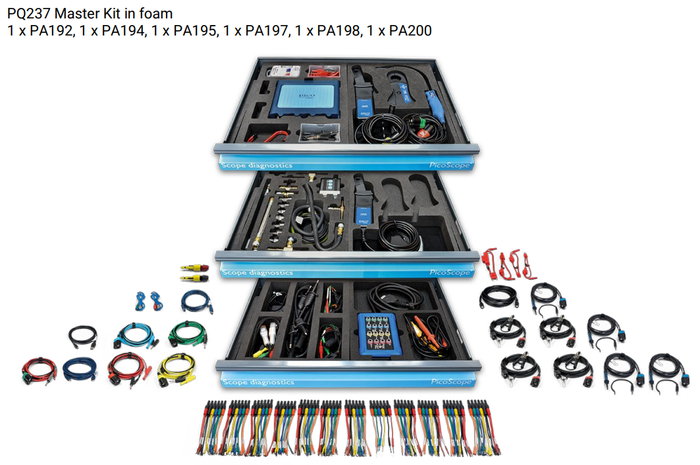

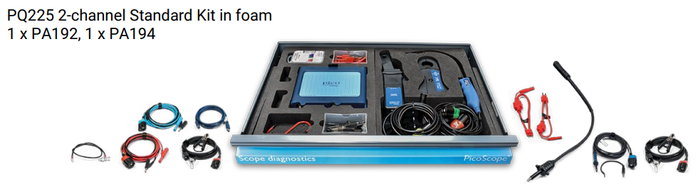

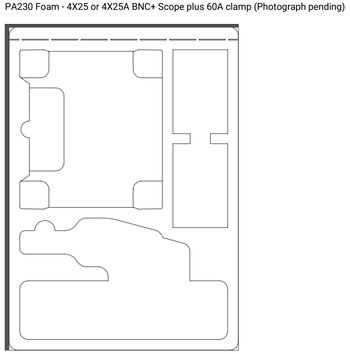

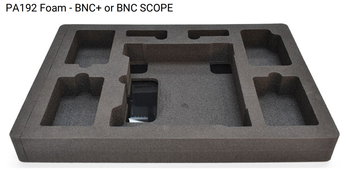

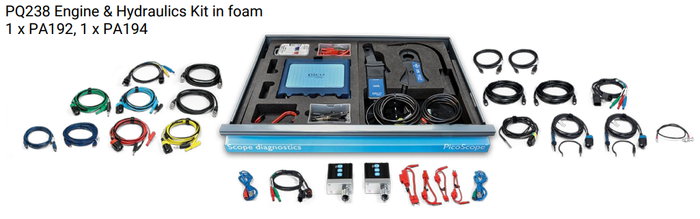

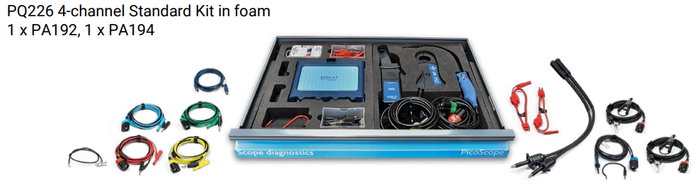

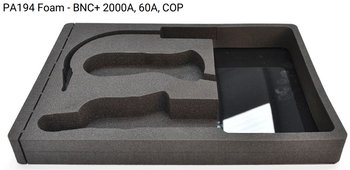

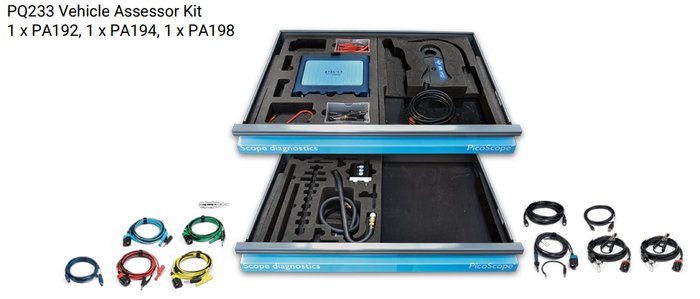

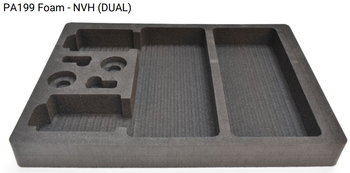

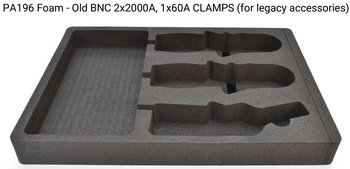

Foam Options for New 4425A PicoBNC Scopes and Accessories

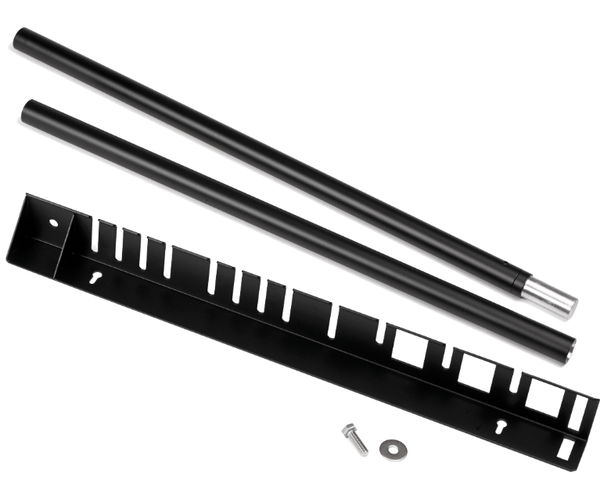

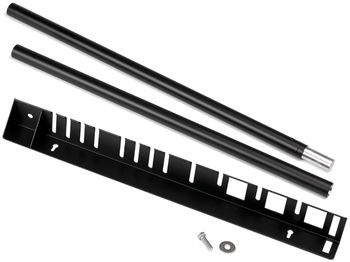

PicoScope boom kit PP985
The PicoScope Boom Kit allows you to store your PicoScope and all your commonly used leads conveniently while allowing for quick access.
The Boom has slots for three current clamps and up to nine cables.

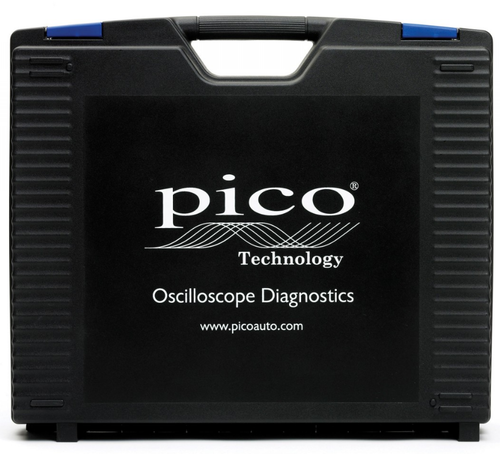

The Automotive Carry Case, as supplied with our top-of-the-range automotive diagnostic kits. This case is suitable for PicoScope 4225 and 4425 scopes.
If you require a carry case for an older product such as the PicoScope 4223 or 4423, please contact us.

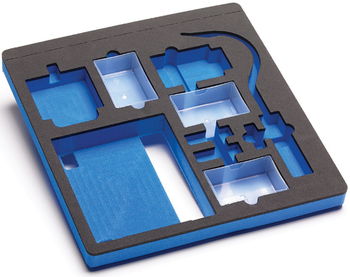

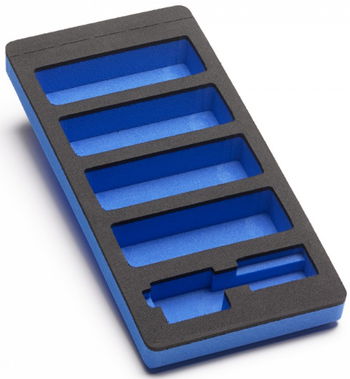

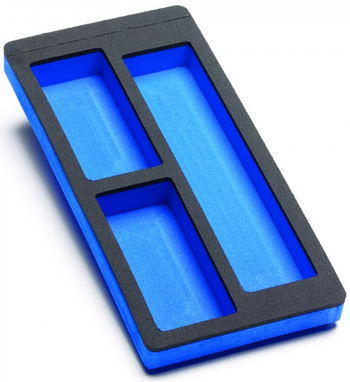

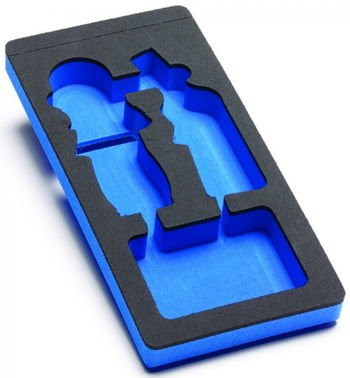

Foam tool tray for Automotive scope and accessories
This foam tool tray has space for your:
Back-pinning probe set
2 x 10:1 attenuators
JCASE fuse extension
COP and signal probe

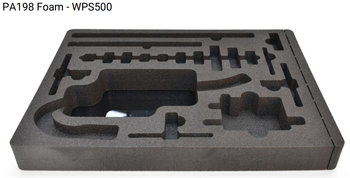

Foam tray for WPS500X and accessories
Foam tray for your WPS500X and all accessories in the PP939 kit, plus 3 pressure taps, 3 optional compression adaptors and a spare compression hose.

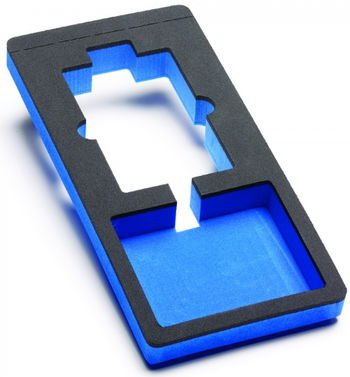

Foam tray for 2 current clamps
Foam tool tray comprising of one space for the TA018 20 / 60 A DC (low amps) current clamp, and one universal space for the TA167, TA189 or TA234.

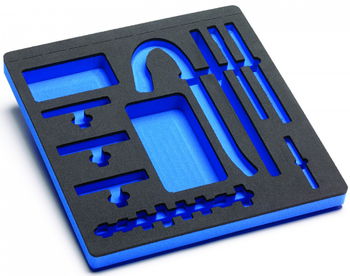

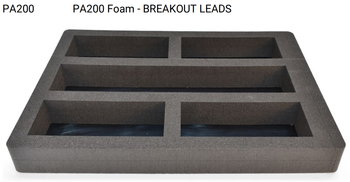

Foam tray for breakout leads and fuse extensions
Foam tray for your PP943 breakout lead kit, and space for both theTA034 and TA035 fuse extension leads.
Foam tray for HT Extension leads
Foam tray for your PP400 HT extension lead set, and two additional spaces for breakout leads.

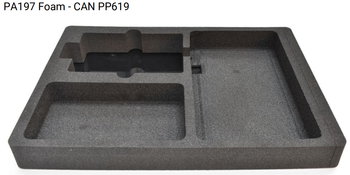

Foam tray for TA069 CAN test box
Foam tray for your TA069 CAN test box.
