Pico - Motorcycle Diagnostic Tool Kit

Replaced by PQ178 - Standard Kits (4 Channel)

(Features related to M/C Troubleshooting are now incorporated into the Standard Kit)
Pico Technology Logo

    motorcycle diagnostics










With our new Motorcycle Diagnostics Kit you can find that problem fast, and cut out the guesswork and head-scratching!

manuals   Brochures and manuals

Please note:

To make our Vehicle Diagnostics Kits even greater value for money we have now replaced our car and bike kits with one ‘all purpose’ kit that can be used on all vehicles. The kit includes everything that was provided in the original Motorcycle Diagnostics Kit and the software features a separate menu for motorcycle specific tests.

Pico Model PQ177 replaces the 2 Channel Motorcycle kit and the PQ178 Repalces the 4 Channel Kit.


For the Pico Motorcycle Diagnostics Kit we took the same award-wining technology that we use in our car and truck diagnostic tools and added our own motorcycle-specific software. The result: an inexpensive diagnostics tool that is suitable for use on any modern motorcycle.

At the core of the kit is the PicoScope automotive oscilloscope. This PC Oscilloscope turns your laptop or desktop PC into a powerful motorcycle diagnostics tool for fault-finding the increasing number of sensors, actuators and electronic circuits found on today’s bikes.

Easy to set up and use

This powerful and flexible motorcycle diagnostic tool connects to, and is powered by, the USB port of your PC. It has been designed to be easy-to-use, and so is equally suitable for both novice and expert users.


Value for money

The Pico Motorcycle Diagnostics Kit does not require harnesses for different makes and models of bikes, and software updates can be downloaded for free — making the kit a powerful and cost-effective diagnostic tool.




  • Suitable for use on any modern motorcycle
  • Ideal for both individuals and garages
  • Easy to use
  • Detailed and accurate measurements
  • Built-in reference library of standard tests
  • Customize your kit with your own waveform library
  • Free software updates for life
  • 24 month warranty





The ideal tool for motorcycle diagnostics

The Pico Motorcycle Diagnostics Kit is your ideal tool for fault-finding on today’s bikes. The easy to use PicoScope software means that even if you’re a complete beginner you can get started straight away, and using it you can test every fuel injection and engine management component from crank and cam sensors to injectors and ignition signals.

Interested in maintaining or repairing bikes? Then the Pico Motorcycle Diagnostics Kit is the tool you need.

Kit Contents

The Motorcycle Diagnostics Kit (PP602 See the new PQ177 & PQ178) contains the following items:

  • PicoScope 4225 & 4425 automotive oscilloscope
    (PP541 is the same with a 4 Channel Scope instead of the 2 channel)
  • 60 A  DC current clamp
  • 600 A  AC/DC current clamp
  • 20:1 attenuator
  • 2 x Multimeter probes (1 black, 1 red)
  • 2 x Small crocodile clips (1 black, 1 red)
  • 2 x Dolphin clips (1 black, 1 red)
  • Insulation piercing probes
  • Acupuncture probe set
  • 2 x TA000 BNC to 4 mm test leads
  • 2 x Secondary ignition pickup leads
  • 2-pin break out lead
  • PicoScope Automotive For Motorcycles software CD
  • Quick start guide
  • Carry case




“At Pico we have listened to the feedback from motorcycle repair shops and specialists, we understand the problems, and now we have built this product specially for you!”










4 Channel 4423 (PP541)


NOW PART OF THE REGULAR
4 Channel Standard Kits - PQ178

 2 Channel 4223 (PP602)

NOW PART OF THE REGULAR
​2 Channel Standard Kits - PQ177

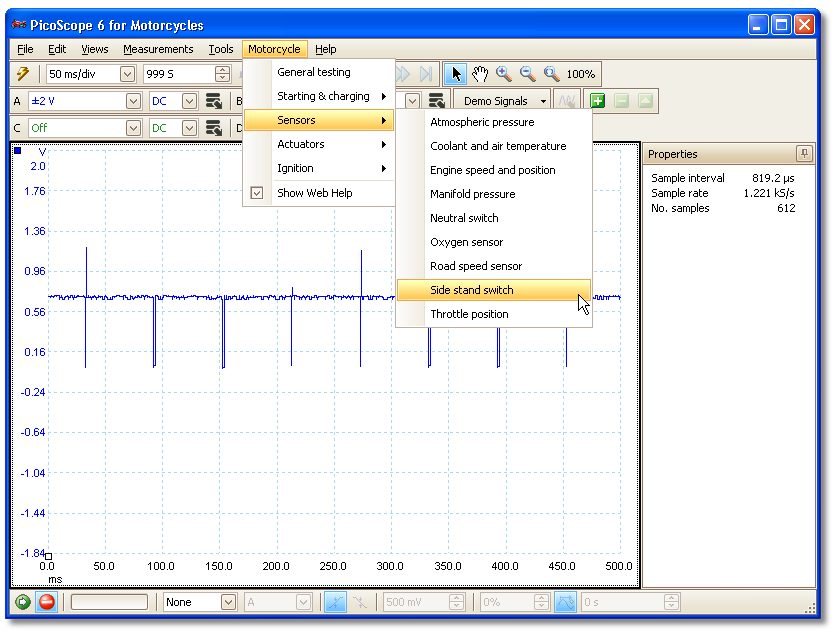

PicoScope Automotive For Motorcycles



Included as part of the Motorcycle Diagnostics Kit is the motorcycle version of the powerful PicoScope Automotive diagnostics software.

With PicoScope Automotive even beginners can quickly perform advanced diagnostic checks. Simply select the sensor or circuit to be tested and the software will automatically load the required settings and give you full details of how to connect the oscilloscope, along with advice on what the waveform should look like, and general technical information on the component being tested.

The preset tests and help topics in PicoScope Automotive for Motorcycles are centered around popular modern bikes, and were written by bikers, for bikers.

You can also customize your own kit by adding your own library of waveforms to PicoScope Automotive.

With its family Windows user interface, automated measurements, extensive preset tests and help topics, and the ability to save and print waveforms, PicoScope Automotive is a versatile motorcycle diagnostic tool that is perfect for both beginner and expert alike.

Note: Before installing the software we recommend you visit Microsoft Windows Update to make sure you have the latest service pack and critical updates for the version of Windows that you are running.

PC Requirements

Minimum Processor: Pentium II processor, or equivalent
Memory: 64 MB (XP) / 512 MB (Vista) minimum
Disk space: 300 MB minimum
Operating system: Microsoft Windows XP SP2 or Vista
Ports: USB 1.1 compliant port
Recommended Processor: 2 GHz Pentium IV processor, or equivalent
Memory: 256 MB (XP) / 1 GB (Vista)
Disk space: 1 GB
Operating system: Microsoft Windows XP SP2 or Vista
Ports: USB 2.0 compliant port
