3000 Series High Performance - OBSOLETE

Replaced by new 3200D Series

Oscilloscope Feature Matrix

US Prices
CDN Prices

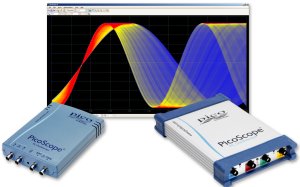

The PicoScope 3000 Series are the highest–performance USB–powered oscilloscopes available. These 2– and 4–channel oscilloscopes have 8–bit resolution and are accurate to within 3%. This combined with their large memory, high sampling rates and high bandwidths make them ideal for use in all areas of test and measurement — from manufacturing and repair, to research and development.

Mixed–Signal Oscilloscopes (MSOs) are also available. PicoScope MSOs have two analogue channels and 16 digital input channels — perfect if you want to view digital and analogue signals at the same time.

The PicoScope 3000 series also includes thePicoScope 3425. This has differential inputs that allow you to measure signals that are not referenced to ground.

PicoScope 3000 Series Oscilloscopes include a free 5–year warranty

Product		Channels	Bandwidth	Sampling Rate	Buffer Memory	Resolution (Enhanced)	Price From
PicoScope 3204A/B		2 External triggerAWG	60 MHz	500 MS/s	8 MS	8 bits (12 bits)
PicoScope 3204 MSO		2 16 digital &AWG	60 MHz	500 MS/s	8 MS	8 bits (12 bits)
PicoScope 3205A/B		2 External trigger &AWG	100 MHz	500 MS/s	32 MS	8 bits (12 bits)
PicoScope 3205 MSO		2 16 digital &AWG	100 MHz	500 MS/s	32 MS	8 bits (12 bits)
PicoScope 3206A/B		2 External trigger &AWG	200 MHz	500 MS/s	128 MS	8 bits (12 bits)
PicoScope 3206 MSO		2 16 digital &AWG	200 MHz	500 MS/s	128 MS	8 bits (12 bits)
PicoScope 3404A/B		4 External trigger &AWG	60 MHz	1 GS/s	8 MS	8 bits (12 bits)
PicoScope 3405A/B		4 External trigger &AWG	100 MHz	1 GS/s	32 MS	8 bits (12 bits)
PicoScope 3406A/B		4 External trigger &AWG	200 MHz	1 GS/s	128 MS	8 bits (12 bits)
PicoScope 3425		4 (differ­ential)	5 MHz	20 MS/s	512 kS	12 bits (16 bits)
PicoScope 3207A		2 External Trigger& Func. Gen	250 Mhz	1 GS/s	256 MS	8 bits (12 bits)
PicoScope 3207B		2 External Trigger & AWG	250 Mhz	1 GS/s	512 MS	8 bits (12 bits)
