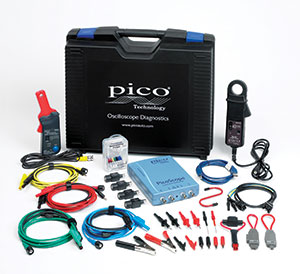

This kit is based on the award–winning 4–Channel Standard Kit but has been configured especially for diesel engines.

The 4–Channel Diesel Kit is centred around thePicoScope 4423 Automotive Oscilloscope. The PicoScope 4423’s fast sampling rate supports the capture and viewing of FlexRay and CANbus signals, whilst its memory depth of 32 megasamples means that complex waveforms, such as common rail diesel signals, can be recorded without sacrificing horizontal resolution.

The Pico 2000 A  current clamp is included as standard in the 4–Channel Diesel Kit. With a DC range of 0–2000 amps this current clamp is ideal for measuring the high currents drawn by the starter motors of commercial vehicles.

PicoScope 4423	1
Channels	4
Accuracy	±1%
Memory	32 M samples
Maximum sampling rate	80 MS/s
60 A  AC/DC current clamp	1
2000 A  AC/DC current clamp	1
Premium test leads	4
2–pin break–out lead	1
20:1 attenuator	4
Backpinning probe set	1
Multimeter probe (black)	2
Multimeter probe (red)	2
Small crocodile/gator clip (black)	1
Small crocodile/gator clip (red)	1
Battery Clip (Red)	1
Battery Clip (black)	1
Flexible backpinning probe (red)	1
Flexible backpinning probe (black)	1
Shrouded to Unshrouded Adapter (red)	2
Shrouded to Unshrouded Adapter (black)	2
Fuse extension leads	1
Fuse extension leads - JCASE	1
S–hook	1
Automotive software CD-ROM	1
Training resources DVD	1
Automotive Quick Start Guide	1
USB cable 4.5m	1
Carry case	1
