4425a 4 channel Master kit [PQ194]

Our Automotive Test Master Kit has been designed to give our customers a way of buying everything they could need in one kit. While there is always more you can buy to add to your toolbox, in this instance we've put together our most comprehensive kit to-date. Our Master Kit consists of an upgraded and extended Advanced Kit, in a new larger tougher carry case and our WPS500X Maxi Kit in a spereate case. The kit also includes our Connector breakout lead kit B, our Fuse extension lead kit, insulation piercing probes and an assorted pack of Gear Ties.

The new heavy duty Master Kit carry case (PA210) also includes foam cut-out locations for your PicoDiagnostics NVH kit (sold seperately).

The combination of our kits and software make vehicle diagnostics intuitive and logical. Each kit comes with a variety of accessories to test a multitude of vehicle components, help and advice for these are available in our PicoScope 6 Software. Our PicScope Master Kit will allow you to undertake an endless list of diagnostic signals from your test vehicle.

Order your Master Kit in Case here [PQ194]:	Order your Master Kit with foam trays [PQ237]:	Order your Master Kit in case with foam trays [PQ282:

The kits listed here are identical except for the fact that the PQ194 is the kit with a rugged hard Plastic Case. The PQ273 is the same kit but is supplied with just the foam trays to allow you to store your items in many tool trays in your shop, no case and finally, the PQ282 gives you both the hard plastic case as well as the required foam trays.

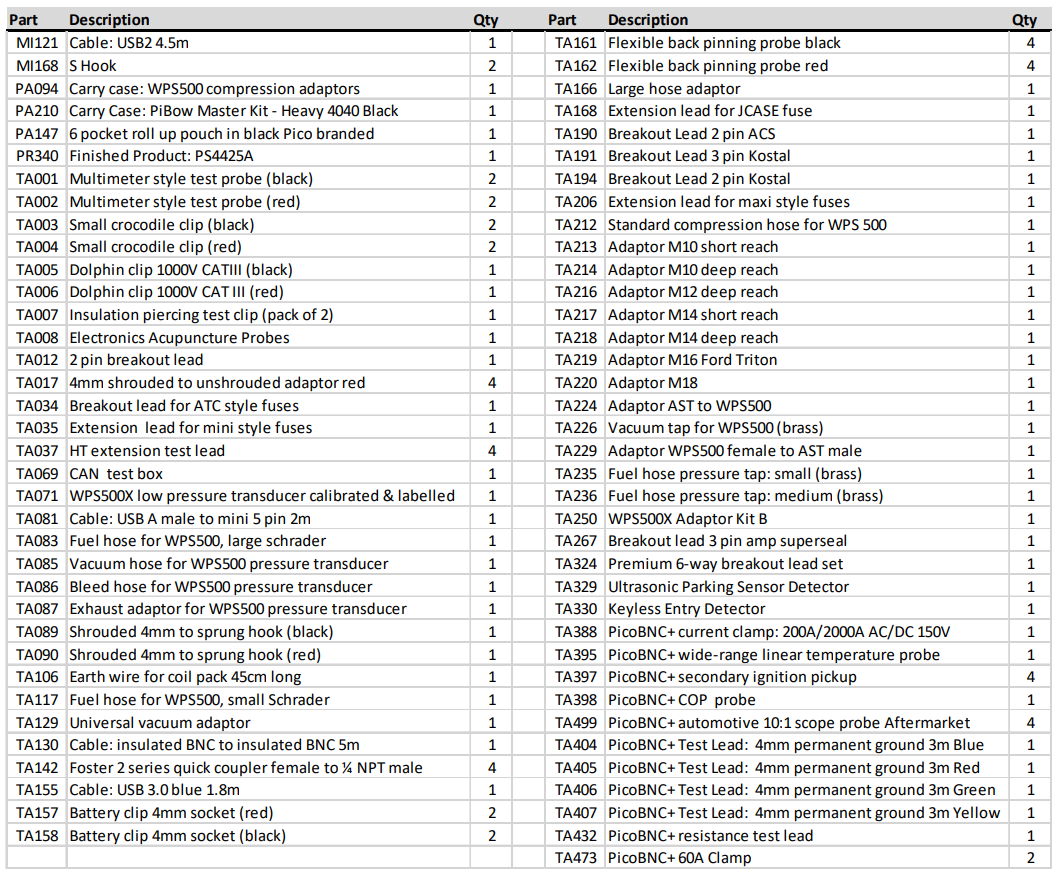

PN	DESCRIPTION	QTY
DO157	WPS500X pressure transducer manual	1
DO336	PicoScope 4225A and 4425A Safety Guide	1
MI121	USB 2.0 Cable: PicoScope - blue, 4.5m	1
MI168	S hook	2
PA038	QuadroPack telescopic plastic case	2
PA094	WPS500X carrying case	1
PA210	Carry Case:4425A Heavy Duty Case	1
PQ174	PicoScope 4425A 4ch Scope only, w/USB cable	1
TA310	Multimeter Style Test Probe - black	2
TA311	Multimeter Style Test Probe - red	2
TA003	Small crocodile clip - black	2
TA004	Small crocodile clip - red	2
TA005	Large Dolphin Clip 1000v CATIII - black	1
TA006	Large Dolphin Clip 1000v CATIII - red	1
TA008	Back-Pinning Probe set	1
TA012	2 wire break out lead	1
TA016	4mm shrouded to unshrouded adaptor black	1
TA017	4mm shrouded to unshrouded adaptor red	4
TA034	ATC/ATO Fuse Extension Lead	1
TA035	Mini Fuse Extension Lead	1
TA037	HT extension lead	4
TA069	CAN test box only (no Adaptors)	1
TA071	WPS500X	1
TA081	Charging Cable: USB A male to mini 5 pin 2m	1
TA083	Fuel pressure test hose for WPS500, large Schrader valve	1
TA085	Vacuum hose adapter for WPS500X	1
TA086	Bleed hose for WPS500X pressure transducer	1
TA087	Exhaust adapter for WPS500X	1
TA089	Shrouded 4mm to Sprung hook - black	1
TA090	Shrouded 4mm to Sprung hook - red	1
TA106	Earth Wire for coil pack 45cm long	1
TA117	Fuel pressure test hose, small Schrader valve	1
TA129	Universal vacuum hose adapter	1
TA130	Cable: insulated BNC to insulated BNC 5m	1
TA142	Foster 2 series 1/8"" coupler w/valve, male NPT	1
TA157	Battery clip 4mm socket (red)	2
TA158	Battery clip 4mm socket (black)	2
TA161	Flexible back pinning probe (black)	4
TA162	Flexible back pinning probe (red)	4
PN	DESCRIPTION	QTY
TA166	Large hose adapter	1
TA168	JCASE Fuse Extension Lead	1
TA190	2-pin ACS Connector breakout lead	1
TA191	3 pin Kostal Connector breakout lead	1
TA194	2 pin Kostal Connector breakout lead	1
TA206	Maxi Fuse Extension Lead	1
TA212	Standard compression hose (for WPS500X, w/universal tip)	1
TA213	M10 Short Reach Adaptor for Standard Compression Hose	1
TA214	M10 Deep Reach Adaptor for Standard Compression Hose	1
TA216	M12 Deep Reach Adaptor for Standard Compression Hose	1
TA217	M14 Short Reach Adaptor for Standard Compression Hose	1
TA218	M14 Deep Reach Adaptor for Standard Compression Hose	1
TA219	M16 Ford Trition Adaptor for Standard Compression Hose	1
TA220	M18 Short Reach Adaptor for Standard Compression Hose	1
TA224	Adaptor AST to WPS500X compression hose	1
TA229	Adapter for WPS500X to AST equipment	1
TA250	WPS500X Adaptor Kit B	1
TA267	3-pin AMP superseal connector breakout lead	1
TA329	Ultrasonic parking sensor detector	1
TA330	Keyless entry carrier signal detector	1
TA388	PicoBNC Current Clamp: 2000A AC/DC	1
TA395	PicoBNC wide-range linear temperature probe	1
TA397	PicoBNC Secondary Ignition Pickup	4
TA398	PicoBNC Coil On Plug (COP) & Signal Probe	1
TA404	PicoBNC Test Lead: 4mm permanent ground, 3m Blue	1
TA405	PicoBNC Test Lead: 4mm permanent ground 3m, Red	1
TA406	PicoBNC Test Lead: 4mm permanent ground 3m, Green	1
TA407	PicoBNC Test Lead: 4mm permanent ground 3m, Yellow	1
TA432	PicoBNC Resistance Test Lead	1
TA473	PicoBNC Current Clamp: 60A AC/DC	2
TA514	PicoScope Professional Breakout Lead set	1
TA506	PicoBNC 10:1 Attenuating Test Lead	4
TA513	Set of 5 Pico Insulation piercing probes	1
PP972	Vacuum tap for WPS500X	1
PP973	Fuel hose pressure tap for WPS500X (small)	1
PP974	Fuel hose pressure tap for WPS500X (Medium)	1

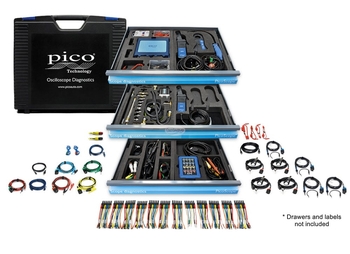

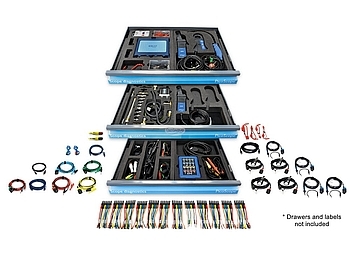

PQ237 Master Kit in foam	PQ282 Master Kit with case and foam

PicoScope 4425A 4 channel Master Kit in case

PicoScope 4425A 4 channel
Master Kit in case
