MSR175 Data Logger for shock and temperature:

2 acceleration sensors ±15 g/±200 g
·1 temperature sensor
· stores over 2 million measured values
· replaceable battery

Product features MSR175, type MSR175B54T2AA5:

High-speed shock logger with 2 acceleration sensors (±15 g and ±200 g)
Measurement frequency of up to 6,400 measurements/s; can record at least 700 shocks
1 internal temperature sensor included, measurement frequency/storage rate every 10 min.
Installed memory is capable of storing over 2 million measured values
3 measurement/storage intervals can be selected; setting of limit values

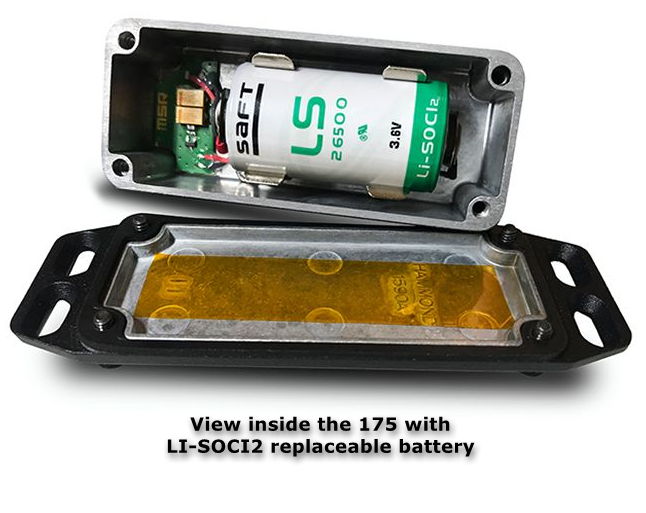

Replaceable Li-SOCI2 battery, battery operating time at least 2 years
Coloured LED for status indication
MSR175 software package with Dashboard software for easy start-up of the data logger, MSR ReportGenerator for
automatic report generation and MSR ShockViewer (basic version) for detailed analysis of shock events

Ideal for long-term monitoring during transportation

With its replaceable battery, the MSR175 is an ideal logger for long duration monitoring of transports. The two 3-axis acceleration sensors integrated in the MSR175 shock logger have working ranges of ±15 g and ±200 g. They record shocks and jolts at a measurement frequency of up to 6,400 measurements per second. The installed memory of the logger is capable of storing over 2 million measured values, which is sufficient for at least 700 shocks. In addition, the MSR175 data logger measures and records temperature profiles from -20° to 65 °C.

Easy-to-use pc software: Start the logger, evaluate the data, save costs

You can start a recording cycle by means of the user-friendly MSR175 Dashboard PC software, which allows you to configure the loggers with just a few mouse clicks. Subsequently, the measured data recorded by the MSR175 data logger can be quickly transferred to a computer via the USB port. A single click on the MSR Report Generator is sufficient to quickly call up a compact, summarised report on the measured data, for example for documentation purposes. For a detailed measured data analysis of the relevant shock events, the MSR ShockViewer analysis software, which is integrated in the MSR175 software package as a free basic version is at your disposal.

You need more advice? Contact us!

Housing:	Design housing PC, encapsulated, IP65
Size & Weight:	49 x 39 x 122 mm (W x H x L), approx. 180 g
Memory capacity:	Over 2,000,000 measurement values
Medium:	Air
Colour:	Amber, Black
Key:	Start measurement/retrieve status
Power supply:	Replaceable Li-SOCI2-battery (3.6 V, 7700 mAh), battery operating time of at least 2 years
Interface:	USB
Software package:	MSR175 Dashboard, MSR ReportGenerator, MSR ShockViewer (basic version). System requirements: Windows XP/Vista/7/8/10, USB port
Operating conditions:
Temperature:	-20... 65 °C
Storage conditions:
Temperature: Humidity:	5... 45 °C (ideal storage condition for the battery) 10...95 % relative humidity, non-condensing
Standards:	The MSR175 complies with EU-Directives RoHS/WEEE.

Measured Parameters	Working Range	Accuracy	Measurement/Storage Rate
3-Axis acceleration	±15 g and ±200 g (-20... 65 °C)	±15 g sensor ±0.15 g (0...5 g, 25 °C) ±0.3 g (5...15 g, 25 °C) ±200 g sensor ±2 g (0...15 g, 25 °C) ±5 g (15...100 g, 25 °C) ±10 g (100...200 g, 25 °C)	up to 6400/s (±15 %)
Temperature	-20.... 65 °C	0.5 °C (-10… 65 °C)	every 10 mins
Relative humidity	0...100 % rel. humidity -20… 65 °C	±2 % rel. humidity (10…85 %, 0… 40 °C) ±4 % rel. humidity (85…95 %, 0… 40 °C)	every 10 mins
Air pressure, absolute	0…2000 mbar absolute -20… 65 °C	±2.5 mbar (750…1100 mbar absolute, 25 °C	every 10 mins
Light	0.......65,000 lx	max. sensitivity at 500nm	every 10 mins

MSR175 software package (link to msr.ch)

Available in 4 variants, 2 variants with rechargeable batteries
and
2 variants with replaceable Li-SOCI2 batteries

Variant 1 of the MSR175 includes two internal 3-axis acceleration sensors (±15 g and ±200 g) as well as one internal temperature sensor. Rechargeable LiPo-battery 230 mAh
Order code: MSR175B16T2AA5

Variant 2 of the MSR175 includes two internal 3-axis acceleration sensors (±15 g and ±200 g) as well as one internal temperature sensor, one internal humidity sensor, one pressure sensor and one light sensor. Rechargeable LiPo-battery 230 mAh
Order code: MSR175B16T6H3P5AA5L2

Variant 3 of the MSR175 includes 2 acceleration sensors (±15g and ±200g) 1 temperature sensor and stores over 2 million measured values features a 2 year replaceable battery (Variant 1 & 2 have rechargeable batteries) capable of recording at least 700 shock episodes. [More details here....]

Order Code: MSR175B54T2AA5

Variant 4 of the MSR175 include2 acceleration sensors (±15g and ±200g) 1 temperature, 1 Humidity, Air Pressure and Light sensors and stores over 2 million measured values. Features a 2 year replaceable battery (Variant 1 & 2 have rechargeable batteries) capable of recording at least 700 shock episodes. [More details here....]

Order Code: MSR175B54T6H3P5AA5L2

Power Pack - N10023 - 5000mAh allows one to use the 175 Data Loggers for extended period of time

What is special about the MSR PowerPack compared to other power units is that the MSR PowerPack switches off when the battery is fully charged and switches on again a day later.

This means that there is no loss due to leakage current via the USB.

However, whether the number of shock events is sufficient for your application is wholly dependant on the threshold value. The level of the threshold value depends, among other things, on the permissible critical acceleration that may act on the transported goods. On the other hand, a low threshold value shortens the recording time.
In our experience, the estimated maximum number of shock events is between 1000 - 1350 events.

Order Code: N10023
