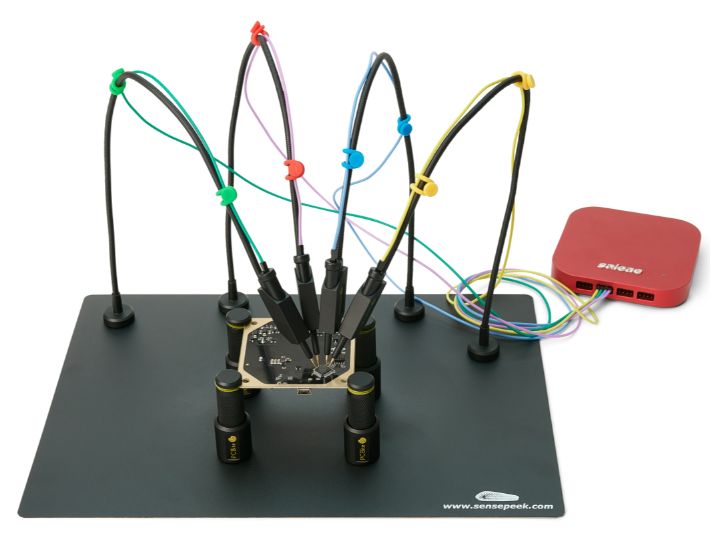

PCBite kit with 2 x SQ200 200 MHz and
4 x SQ10 handsfree Probes.
The ultimate kit that includes everything you need to hold your PCBs during soldering, inspection and handsfree measurements with your multimeter, logic analyzer, oscilloscope or prefered tool.
All six included handsfree probes are from the new and improved SQ series.
All included probes are insulated and can also be used handheld.
This kit contains the 200 MHz bandwidth oscilloscope probes. Other bandwidths are available both as separate probes or in complete kits to match your oscilloscope or measurement needs.
1x PCBite Kit with 4 x SQ10 probes and test wires (Article 6003)
The new SQ series of handsfree probes from Sensepeek have a lower point of gravity making them even more stable compared with the original SP series of handsfree probes. All probes in the SQ series are also insulated and can be used handheld as any traditional probe but their full potential is used when measuring handsfree.
The SQ series of oscilloscope probes also includes more ground options, have probe tip protection, longer cable and support for oscilloscopes with automatic scaling (10:1)
All the loved features of handsfree measurement, exchangeable fine pitch spring tipped test needle, color-coded cable holders and the minimalistic design is maintained to make traditional sized and handheld probes obsolete.
Both length and weight of the SQ probes are perfectly balanced to be used with the included PCB holders and base plate which is a must for handsfree function.
The probe holder comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition.
One side of the included baseplate is matte and the other is mirror polished. The mirror polished surface makes it easy to see components on the circuit board underside. For added protection during measurement the included insulation cover can be mounted on one of the surfaces.
See user guide included articles (links below) for more details and specifications.
