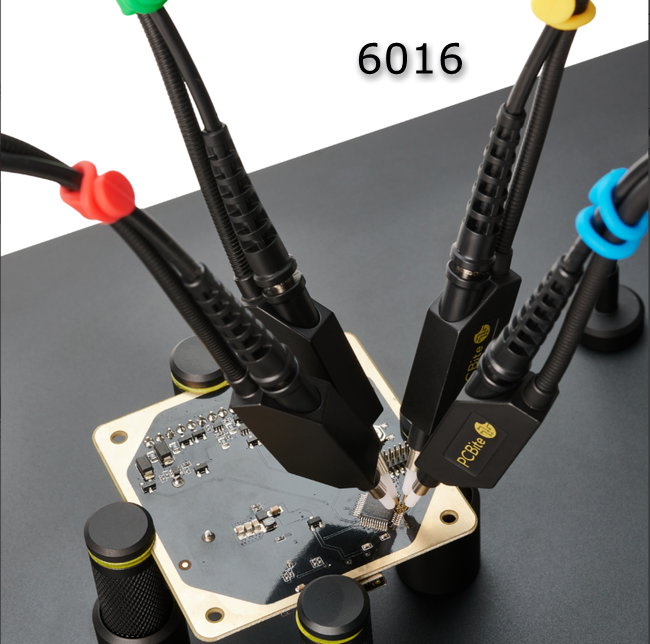

Article no.: 6016
INCLUDES:
- 4× PCBite PCB holders
- 1x Set of yellow insulation washers for the PCB holders
- 1x Large Base plate (A4) (Close to letter size)
- 1x Insulation cover for the base plate (A4)
- 1x Micro fiber cloth
- 2x SQ200 - 200 Mhz handsfree oscilloscope (Article 6014)
The new SQ series of handsfree probes from Sensepeek have a lower point of gravity making them even more stable compared with the original SP series of handsfree probes. All probes in the SQ series are also insulated and can be used handheld as any traditional probe but their full potential is used when measuring handsfree. The SQ series of oscilloscope probes also includes more ground options, have probe tip protection, longer cable and support for oscilloscopes with automatic scaling (10:1) All the loved features of handsfree measurement, exchangeable fine pitch spring tipped test needle, color-coded cable holders and the minimalistic design is maintained to make traditional sized and handheld probes obsolete. Both length and weight of the SQ probes are perfectly balanced to be used with the included PCB holders and base plate which is a must for handsfree function. The probe holder comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition. One side of the included baseplate is matte and the other is mirror polished. The mirror polished surface makes it easy to see components on the circuit board underside. For added protection during measurement the included insulation cover can be mounted on one of the surfaces.
See user guide in Media Tab above for specifications.
