PCBite 4020 Magnifier

PCBite Logo



PCBite 3X Magnifier
[4020]

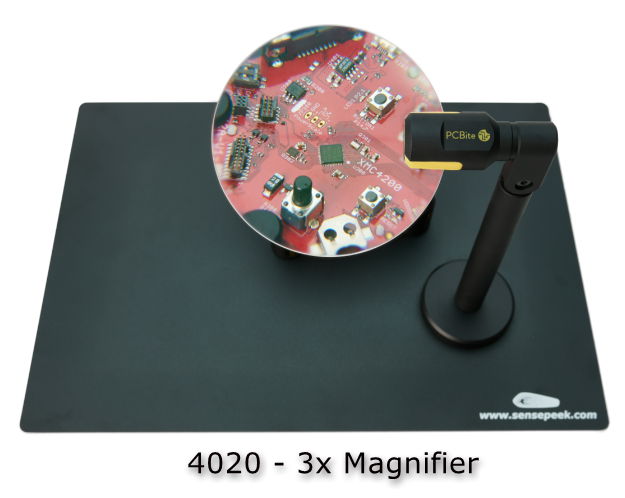

PCBite Magnifier enlarges your target and makes it easier to see during soldering, inspection and measurements. Especially useful when placing PCBite hands free probes on fine pitch SMD components during measurements.



Article no.: 4020

3x magnification edgeless lens for increased visibility of the work surface and AR coating (anti-reflection) to reduce reflections from nearby light sources. Optimized design, magnification and focal point for use together with the PCBite PCB holders and baseplates included in all PCBite kits.

Can also be used handheld but not standalone without a metal surface as base. At the bottom of the magnifier foot there is a strong magnet perfectly balanced in strength. A low friction bottom cap protects the magnet and the baseplate to make the magnifier easy to slide when repositioning or removing the magnifier from the baseplate.

Friction based adjustment of lens tilt and rotate positions takes away the need for annoying and complicated set screws. Premium build quality made from CNC machined aluminum matching the look and feel of the rest of the PCBite family of products.

INCLUDES:
  • 1 x 3X Magnifier (4020)





Files and media

User Guide 4020 Magnifier Rev1.0
Full Size Images



4020 Magnifier for PCBite Systems










Buy your 4020 3X Magnifier Here:
