PCBite 4003 Kit

4003 4 x SP10 Probes 4003 4 x SP10 Probes 4003 4 x SP10 Probes
PCBite Logo

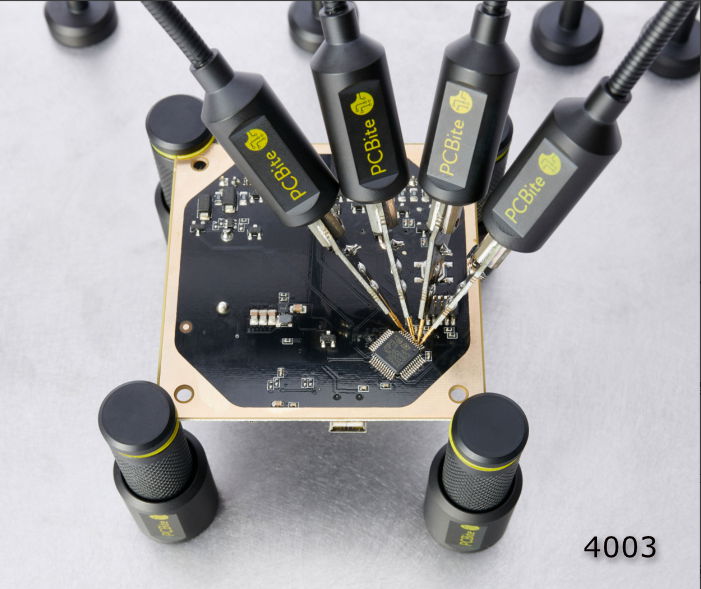

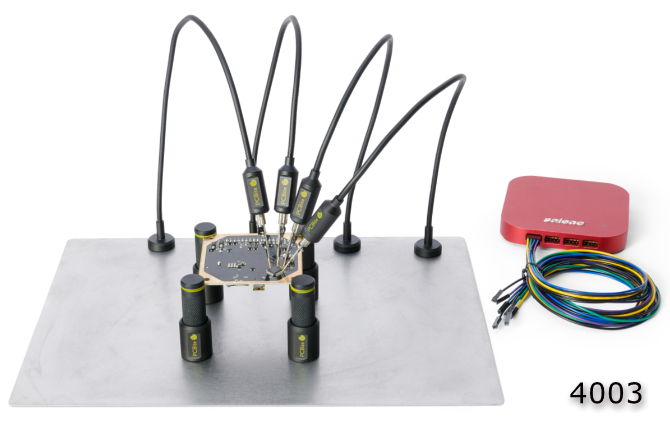

PCBite kit with 4x SP10 probes and test wires

The first truly hands-free probe! Makes instant measurements or long triggering sessions a breeze.



Article no.: 4003

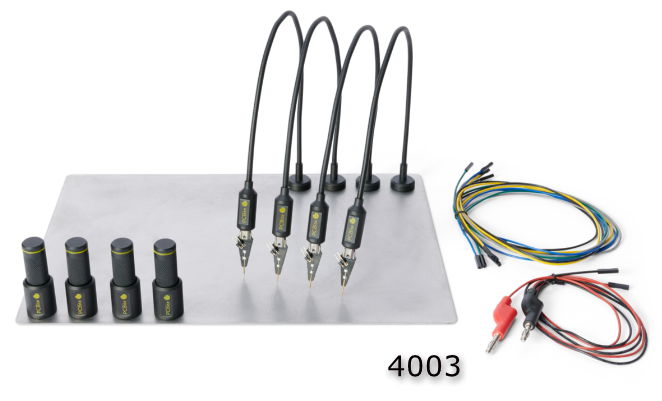

INCLUDES:
  • 4× SP10 probes with pin tipped test needles
  • 4x Extra Test Needles
  • 4 x PCBite Holders
  • 1x Set of yellow insulation washers
  • 5x Dupont to dupont test wires
  • 2x Banana to dupont test wires
  • 1x Micro fiber cloth
  • 1x Large Base Plate (A4)

No more soldering wires to connect your probe or complicated tools to setup, just positioning the probe needle on any test point or component in the signal path and release. Saves time and frustration during development, verification and repairs. The minimalist design and the spring loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals. The probe is steady but yet flexible made for instant measurements or total hands-free operations together with your multimeter, logic analyzer or prefered tool. The dual pin header connector fits directly on a 2.54mm (0.100”) connector. The SP10 comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition. See user guide for specifications. See user guide for specifications.



Files and media

User Guide SP10 Rev1.0
