ETR-USB2 - USB Cat 5 Extender

quatech logo

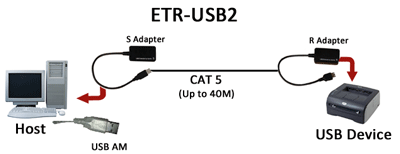

 etr-usb2 diagram

BUY
US Prices
CDN Prices

Privacy and Security


Description

Enable to extend regular USB Signals over Cat5 cable. Using a transmitter and receiver, the USB signals can be extended to a range of 40 meters.

Features:

  • Host side: USB A Male connecter / RJ45 Transmitter end
  • Device side: USB A Female connector / RJ45 Receiver end
  • USB 1.0 based, compatible with USB 2.0
  • Transfer rate: 1.5Mbps and 12Mbps
  • Physical: ABS
  • Dimension: 67.5 x 38 x 28 mm
  • Operating temperature: -40°C to 85°C
  • Storage temperature: -65°C to 150°C

 Specifications:

Host side: USB A Male connector / RJ45 Transmitter end
Device side: USB A Female connector / RJ45 Receiver end
Transfer rate: 1.5Mbps and 12Mbps
Physical: ABS
Dimensions: 67.5 x 38 x 28 mm
Operating temperature: -40°C to 85°C
Storage temperature: -65°C to 150°C


Download PDF Datasheet
