The TA368 is a flexible AC current probe utilizing the Rogowski principle and featuring a built-in integrator. Equipped with the Pico D9 probe interface, it is designed exclusively for use with the PicoScope 4444 True Differential Oscilloscope, which powers the probe and automatically sets the PicoScope software to the correct range and units.

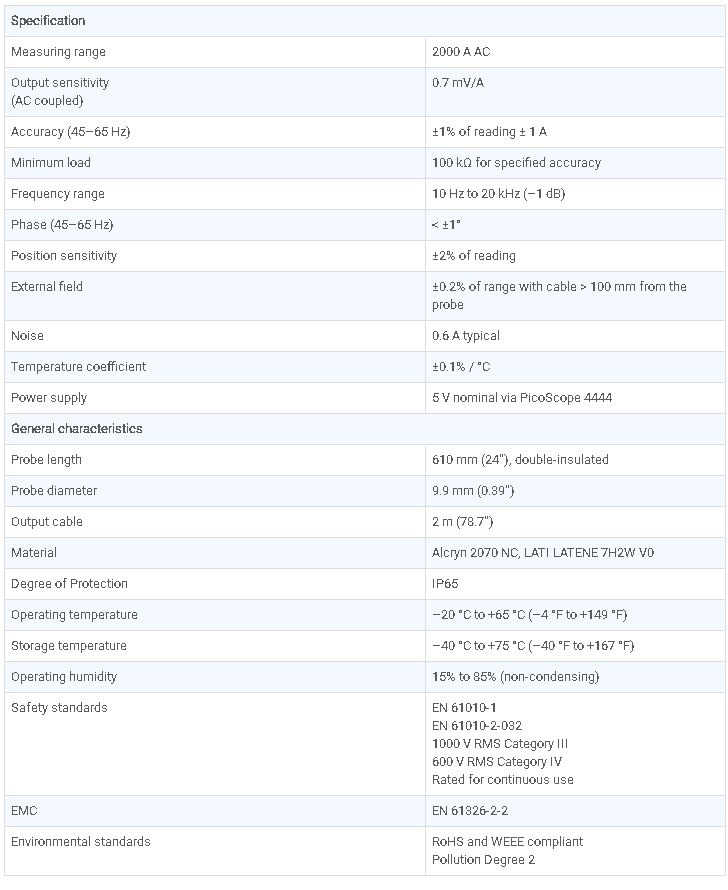

The probe can be used to measure currents up to 2000 A from very low frequencies to 20 kHz. The flexible and lightweight measuring head allows quick and easy installation in hard-to-reach areas and with large conductors. The built-in integrator gives a voltage output directly proportional to the primary current. Documentation: TA368 2000 A D9 Flex Current Probe User’s Guide Specifications:  |
||||||
 |
 |
|||
|
|
|
 |
