RH-02
Pico Technology supplies a range of easy to use PC based temperature and humidity logging products. The units simply plug into the serial (or USB via the adapter) port of a PC (desktop or laptop) and require no power supply.

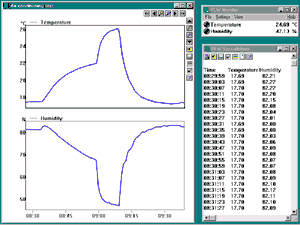

Used with PicoLog data logging software, they replace costly chart recorders and complicated ‘plug in’ data acquisition boards. These PC based temperature data loggers allow your computer to display and record temperatures. PicoLog can collect data at rates from one sample per second to once per hour and upto 1 million samples can be recorded. Data can be displayed in graphical or spreadsheet format, both during and after data collection.
RH-02 Temperature and Humidity PC Data Logger
Features
Records temperature and humidity
High accuracy
No Sensors required
No power supply required
The Pico RH-02 measures and records humidity and temperature on a PC. It uses built in sensors that are calibrated to give highly accurate measurements.
The RH-02 is very easy to use: just plug into the serial port of your PC and you are ready to take measurements. It is supplied with PicoLog data logging software and software drivers for users who wish to write their own software.
Specification
Temperature
Humidity
Range
-20 to 70°C (sensor) 0 to 70°C (converter)
0 to 95% non condensing
Response time
10 seconds
15 seconds (slowly moving air)
Accuracy
±0.2°C (0 to 70°C)
±2.5% (0-90%)
Resolution
0.01degC
0.01%
Physical dimensions
100 x 135 x 35 mm (converter) 45 x 72 x 28 mm (sensor) Sensor to converter cable : 3 meters
Conversion time
2 sec
Output connector
D9 to serial port, cable supplied
Supplied software
PicoLog for Windows (3.x, 95/98/ME, NT/2000, XP) Drivers & examples C, pascal, Delphi, Visual Basic, HP VEE and LabVIEW. A macro is also provided to collect data directly into an Excel spreadsheet
