PicoScope 4224 IEPE Oscilloscope Specifications - PP695

Pico Logo

US Prices
CDN Prices

Privacy and Security

Listed here are the specifications for the PicoScope 4224 IEPE. This advanced version of the PicoScope 4224 features an IEPE interface making it compatible with industry-standard IEPE accelerometers and microphones.

Oscilloscope
Mode Passive Probe Mode IEPE Interface Mode
Bandwidth DC to 20 MHz
(10 MHz on ±50 mV range)
1.6 Hz to 20 MHz
(10 MHz on ±50 mV range)
Output not applicable 4 mA up to 24 V ±5%
Channels 2
Vertical resolution 12 bits
Enhanced vertical resolution 16 bits
DC accuracy ±1% of full scale
Rise time 17.5 ns (calculated) on all ranges except 50 mV;
35 ns (calculated) on 50 mV range
Sensitivity 10 mV/div to 4 V/div
Input ranges (full scale) ±50 mV to ±20 V in 9 ranges
Input characteristics 1 MΩ in parallel with 22 pF 1 MΩ in parallel with 1 nF
Input type Single-ended, BNC connector
Input coupling Software selectable AC/DC AC
Overload protection ±100 V
Maximum sampling rate (single shot) 80 MS/s
Maximum sampling rate
(continuous streaming mode)
1 MS/s (Record length limited to 20 MS in PicoScope, unlimited when using the supplied API)
Buffer memory 32 M samples shared between active channels
Waveform buffer Up to 10000 waveforms
Timebase ranges 100 ns/div to 200 s/div
Timebase accuracy 50 ppm with ≤ 10 ps jitter
Triggers
Source Any input channel
Basic triggers Auto, repeat, single, rapid, none
Advanced triggers Rising edge, falling edge, edge with hysteresis, pulse width, runt pulse, dropout, windowed
Maximum pre trigger delay 10 x "per division" timebase setting
Maximum post trigger delay 50 s
Spectrum Analyser
Bandwidth 20 MHz
Frequency range DC to 20 MHz
Maximum number of bins 1,048,576
Display modes Magnitude, peak hold, average
Window types Blackman, Gaussian, triangular, Hamming, Hann, Blackman-Harris, flat-top, rectangular
PC Requirements
Minimum Processor: Pentium II processor, or equivalent
Memory: 64 MiB (XP) / 512 MiB (Vista) / 1 GiB (Win 7) minimum
Operating system: 32 or 64-bit edition of Microsoft Windows XP SP2, Vista or Windows 7
Ports: USB 2.0 compliant port
Recommended Processor: 2 GHz Pentium IV processor, or equivalent
Memory: 256 MiB (XP) / 1 GiB (Vista / Win 7)
Operating system: 32 or 64-bit edition of Microsoft Windows XP SP2 (or above), Vista or Windows 7
Ports: USB 2.0 compliant port
Environmental
Operating environment
Temperature range
Humidity

0 °C to 45 °C (20 °C to 30 °C for quoted accuracy)
5% to 80% RH, non-condensing
Storage environment
Temperature range
Humidity

-20 to 60°C
5 to 95% RH, non-condensing
Physical Dimensions
Dimensions 200 x 140 x 35 mm (approx 7.9 x 5.5 x 1.4 in)
Weight <500 g (approx 1.1 lb)
Software
PicoScope 6 for Windows PicoScope 6 is your complete test and measurement lab in one application. Features include:
Capture modes - oscilloscope, spectrum and persistence modes
Channel maths - calculate the sum, difference, product, inverse or create your own custom function using standard arithmetic, exponential and trigonometric functions
Automated measurements
Scope mode: AC RMS, cycle time, DC average, duty cycle, falling rate, fall time, frequency, high pulse width, low pulse width, maximum, minimum, peak-to-peak, rise time and rising rate
Spectrum mode: frequency at peak, amplitude at peak, total power, total harmonic distortion (THD), total harmonic distortion plus noise (THD N), spurious-free dynamic range (SFDR), signal noise distortion to signal noise ratio (SINAD), signal to noise ratio (SNR) and intermodulation distortion (IMD)
Export data formats - Comma separated values (CSV), tab delimited (TXT), windows bitmap (BMP), graphics interchange format (GIF), portable network graphics (PNG), MATLAB 4 format (MAT)
Full details on PicoScope 6
Software development kit A growing collection of drivers and example code for various programming languages
Language support
Software
PicoScope 6

Full support for English, French, Italian, German and Spanish. Menus and dialogs only for Dutch, Hungarian and Simplified Chinese.
Documentation
User's guide
Programmer's guide

English, French, German, Italian, Spanish
English
General
Additional hardware (supplied) USB 2.0 cable, user manuals, software CD-ROM
PC interface USB 2.0 (USB 1.1 compatible)
Power requirements Powered from USB port
Compliance FCC (EMC), CE (EMC and LVD), RoHS compliant
Total Satisfaction Guarantee In the event that this product does not fully meet your requirements you can return it for an exchange or refund. To claim, the product must be returned in good condition within 14 days.
Warranty 5 years
Price - PP695

Buy the PP695 - IEPE Oscilloscope Online




IEPE InterfaceThe PicoScope 4224 is available with an optional internal IEPE (integrated circuit piezoelectric) interface allowing for the direct connection and powering of industry standard accelerometers and microphones.
When disabled the channels can be used as normal oscilloscope inputs. When IEPE is enabled (each channel has independent control via software) the input is AC coupled and a 24 V, 4 mA signal is output to power external sensors.
The high resolution and dynamic range of the 4224 makes it ideal for use with accelerometers and microphones. Having the IEPE interface built in makes for a compact, portable solution.

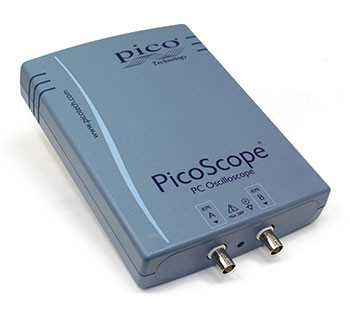

4224 IEPE PicoScope
