Accessories for PicoScope 9200 Sampling Oscilloscopes
US Prices | CDN Prices
The accessories listed here are ideal for use with PicoScope 9200 Sampling Oscilloscopes. (They can also be used with other high-frequency oscilloscopes with SMA input connectors.)
Quick Links:
Features:

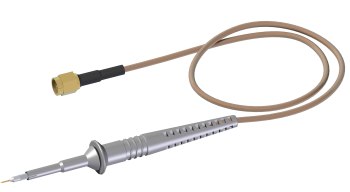

Small size - 2.5 mm diameter at the probe tip
New IC contact system for 0.5 to 1.27 mm pitch
Interchangeable spring contact tip
Ideal for measurements of SMT components
Coaxial design
Low input capacitance
TA061 Specifications
Connector type
SMA
Attenuation
10:1
Input resistance
500 Ω
Input capacitance
2 pF
Input coupling of the measuring instrument
50 Ω
System bandwidth (-3 dB)
1.5 GHz
Risetime (10% - 90%)
240 ps
Rated voltage
12 V DC incl AC pk
Cable length
1.3 m (approx 4 ft 3 in)
Weight (probe only)
48 g (approx 1.7 oz)
Operating temperature
0 °C to 50 °C
Storage temperature
-40 °C to 71 °C
Lead time
In stock
Price
A range of kits containing accessories and spare parts for the TA061 are available.
TA064 spring contact tips TA065 advanced accessory kit TA066 basic accessory kit TA067 standard accessory kit TA068 solid probe tips
Coding rings (set) 3x4 colours
1
Ground blade 2.5
1
Ground lead 15 cm
1
1
1
Ground spring 2.5
1
IC-Cap 2.5 0.5 mm pitch; green
1
IC-Cap 2.5 0.65 mm pitch; blue
1
IC Cap 2.5 0.8 mm pitch; grey
1
IC Cap 2.5 1.0 mm pitch; brown
1
IC Cap 2.5 1.27 mm pitch; black
1
Insulating cap 2.5
1
1
PCB adapter kit 2.5
1
Self-adhesive Cu pad 2 x 2 cm
2
Solid tip CuBe 0.5 mm
1
1
1
5
Spring tip gold plated 0.5 mm
5
1
1
1
Sprung hook 2.5
1
1
1
Price

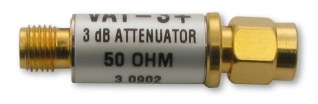

Typical performance:
Frequency (MHz) Attenuation (dB) Return loss (dB)
0.03
3.02
56.17
50.00
3.00
52.32
100.00
3.00
46.96
500.00
3.05
36.37
1000.00
3.10
32.48
2000.00
3.19
31.52
3000.00
3.31
35.67
4000.00
3.43
26.35
5000.00
3.58
19.50
6000.00
3.81
15.77
Typical performance:
Frequency (MHz) Attenuation (dB) Return loss (dB)
0.03
6.06
47.85
50.00
6.01
52.94
100.00
6.02
47.09
500.00
6.10
38.55
1000.00
6.15
34.41
2000.00
6.23
34.50
3000.00
6.33
39.05
4000.00
6.39
24.30
5000.00
6.52
18.08
6000.00
6.94
14.73
Price:
Features:
Very wideband, DC to 4200 MHz
Low insertion loss, 0.1 dB typical
Excellent amplitude unbalance, 0.02 dB typical
Rugged shielded case
TA079 Specifications
Frequency range
DC to 4200 MHz
Isolationu /2u /2 to fu
Insertion lossu /2u /2 to fu
Typical
Maximum
Phase unbalanceu /2u /2 to fu
Amplitude unbalanceu /2u /2 to fu
Impedance
50 Ω
Operating temperature
-55 °C to 100 °C
Storage temperature
-55 °C to 100 °C
Power input (as a splitter)
750 mW maximum
Internal dissipation
375 mW maximum
Compliance
RoHS compliant
Lead time
Low stock - order soon
Price
Note: fu = upper frequency.
For use with the optical-to-electrical converter on the PicoScope 9221A and 9231A
Reduces peaking and ringing
Choice of filter depends on the bit rate of the signal under analysis
Cat No Bit Rates Price
TA120
51.8 Mb/s (OC1/STM0)
TA121
155 Mb/s (OC3/STM1)
TA122
622 Mb/s (OC12/STM4)
TA123
1.250 Gb/s (GBE)
TA124
2.488 Gb/s (OC48/STM16) /
