PicoScope 6000C&D Series

Ultimate Performance. Ultimate Value For Money

Oscilloscopes and digitizers in the PicoScope 6000 Series give you both ultimate performance and ultimate value for money. If you need a high–performance USB oscilloscope or a high–speed USB digitizer the PicoScope 6000 Series is for you.


USB 3.0 Oscilloscopes (USB 2.0 Compatible)

With 4 channels, up to 500 MHz bandwidth and 5 GS/s real–time sampling, the PicoScope 6000 Series are the ultimate USB oscilloscopes.

A quantum leap in PC–based test equipment, the PicoScope 6000 Series offer world–beating performance together with all the features you would expect from a PicoScope oscilloscope.

Finalist in the 2012 “Best in Test” awards

NOTE: The 6000 C & D Series have been replaced by the new and improved 6000E series

Product	Channels	Bandwidth	Sampling Rate	Buffer Memory	Resolution (Enhanced)	Price
PicoScope 6402C  PP884	4 AUX input & Func Gen	250 MHz	5 GS/s	256 MS	8 bits (12 bits)
PicoScope 6402D  PP885	4 AUX input & AWG	250 MHz	5 GS/s	512 MS	8 bits (12 bits)
PicoScope 6403C  PP886	4 AUX input & Func Gen	350 MHz	5 GS/s	512 MS	8 bits (12 bits)
PicoScope 6403D  PP887	4 AUX input & AWG	350 MHz	5 GS/s	1 GS	8 bits (12 bits)
PicoScope 6404C  PP888	4 AUX input & Func Gen	500 MHz	5 GS/s	1 GS MS	8 bits (12 bits)
PicoScope 6404D  PP889	4 AUX input & AWG	500 MHz	5 GS/s	2 GS	8 bits (12 bits)

Notes:

• AWG = Arbitrary Waveform Generator, Func Gen = Function Generator
• Quoted sampling rates are for single–channel use.
• * US Dollar and Euro prices are approximate.

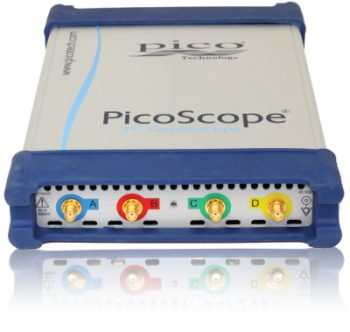

USB Digitizers

PicoScope USB Digitizers accept electrical signals in the frequency range of DC to 1 GHz, sample them at up to 5 GS/s and convert them to 8–bit digital values. The resulting data can be used in a wide variety of applications including research and development, debugging, instrumentation and testing.

PicoScope 6000 Series Digitizers have comparable features and specifications to traditional digitizers, but are cheaper, take up less space and their USB interface removes the need for a specialised mainframe.

PicoScope 6000 Series Digitizers include a free 5 year warranty

Product	Channels	Bandwidth	Sampling Rate	Buffer Memory	Resolution (Enhanced)	Price
PicoScope 6407	4 AUX Input & AWG	1 GHz	5 GS/s	1 GS	8 bits (12 bits)

Notes:

• Quoted sampling rates are for single–channel use.
