Accessories for the 2205 MSO

(Mixed Signal Oscilloscope)

• 20-way digital cable^#
• 60 MHz  passive oscilloscope probe^#
• Active differential oscilloscope probes
• PicoScope carry case
• Test clips^#

^# These accessories are supplied if you purchase the PicoScope 2205 MSO Kit.

MI007: 60 MHz  Oscilloscope Probe x1/x10

This high quality general purpose oscilloscope probe, has a 60 MHz  bandwidth. A two position slide switch allows attenuation of either x1 or x10 to be selected.

Comprehensive List of Passive Probes.......

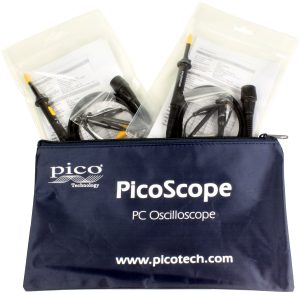

TA208

Buy 2 x MI007 oscilloscope probes and get
a FREE protective case [TA208]

Buy a set of two 60 MHz  oscilloscope probes and you can carry and store your probes in style with a free protective case.

In stock

Buy Online:


Active Differential Oscilloscope Probes

Our active differential probes let you use a conventional earthed oscilloscope to measure signals that are not referenced to ground, including mains voltages. They can also be used to measure and observe the waveforms of three-phase supplies or the gate and control signals of semiconductor circuits. They are ideal for investigating motor speed controls, uninterruptible power supplies, switch mode power supplies and process controllers.

TA136: 20-Way Digital Cable

This cable makes it easy for you to connect the digital channels of your PicoScope 2205 MSO to the signals you want to analyze.

• Digital inputs: 16
• Ground connections: 4
• Length: 25 cm  (approximately 9.8 in)

In stock

Buy Online:


TA139: Test Clips

A pack of ten test clips for use with the TA136 digital cable.

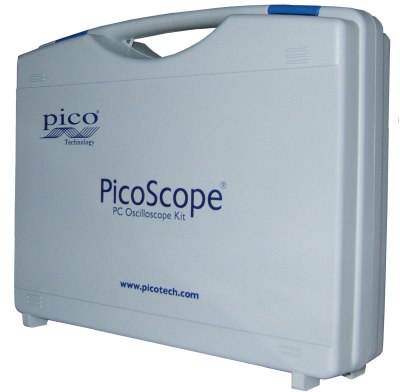

PicoScope Carry Case - OBSOLETE

The PicoScope carry case can be used to protect your PicoScope Oscilloscope when used in the field, and to safely store it when it's not needed.

The case uses foam to securely hold the PicoScope 2202, 3200 range and 4000 Series in place, preventing movement and providing cushioning to prevent damage. Space is also proved to store leads and scope probes.

Note: the PicoScope carry case is also supplied with our oscilloscope kits.

External dimensions: approximately 340 x 270 x 83 mm (13.4 x 10.6 x 3.3 in)

NO LONGER AVAILABLE -  MI136:
