WPS600C pressure transducer
With high accuracy and a wide measuring range, the WPS600C Hydraulic Pressure Transducer connects to your PicoScope for convenient analysis and diagnosis of pressurized systems.
- Accurately measure up to 600 bar (8700 psi)
- Ultra-fast 100 microsecond response time (0% to 90% of full scale)
- Internal rechargeable LiPo battery
- Industry-standard M16 x 2 test point connector
- Auto zeroing
- High noise immunity
- Temperature compensated
Not for continuous operation
Due to the wide range of hydraulic fittings in use we do not supply any specific adaptors or hoses for use with this product. Those provided with the low pressure WPS500X are not suitable for use with the higher pressure hydraulic systems.
We recommend contacting your regular hydraulic hose supplier for any additional fittings or custom hose assemblies you may require to suit your specific system.
Pressure ranges
Two pressure ranges for increased versatility
The two pressure ranges of the WPS600C allow accurate measurement and diagnosis of permanent and non-permanent automotive and industrial hydraulic systems.
Range 1
The first range, 0 to 600 bar (approximately 8700 psi) gives you high resolution and accuracy for high-pressure tests in hydraulic systems.
Range 2
The second range measures from 0 to 60 bar (approximately 870 psi). This range is ideal for low-pressure hydraulic systems and oil pumps.
| Range |
Pressure range |
Accuracy |
Response time |
Output scaling |
| 1 |
0 to 600 bar
0 to 8700 psi |
1% of scale |
100 µs |
1 V/100 bar
1 V/1450 psi |
| 2 |
0 to 60 bar
0 to 870 psi |
1% of scale |
100 µs |
1 V/10 bar
1 V/145 psi |
What’s in the pack?

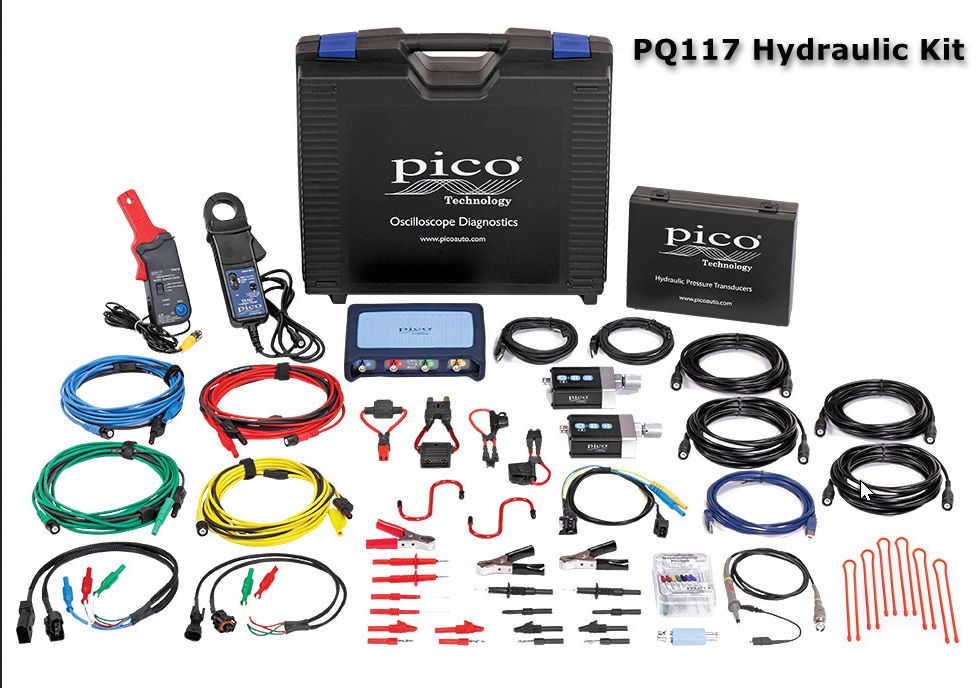

Diesel diagnostics kit
| 1 |
PicoScope 4425 4 channel automotive oscilloscope |
1 |
20 A /60 A AC/DC current clamp |
| 1 |
Standard (ATC) fuse extension lead |
2 |
Shrouded to Unshrouded Adapter (red) |
| 1 |
Maxi fuse extension lead |
1 |
Automotive software CD-ROM |
| 1 |
10:1 attenuator |
1 |
USB cable 1.8m |
| 1 |
Backpinning probe set |
4 |
Premium test leads |
| 2 |
Small crocodile/gator clip (black) |
1 |
JCASE Fuse extension lead |
| 2 |
Battery Clip (black) |
1 |
60 MHz oscilloscope probe x1/x10 |
| 2 |
Small crocodile/ gator clip (red) |
2 |
Flexible backpinning probe (black) |
| 1 |
Automotive Quick Start Guide |
2 |
Multimeter probe (red) |
| 1 |
200 A/2000 A AC/DC current clamp |
1 |
Battery Clip (Red) |
| 1 |
Mini (ATC) fuse extension lead |
2 |
Shrouded to Unshrouded Adapter (black) |
| 1 |
2–pin break–out lead |
1 |
Training resources DVD |
| 2 |
Flexible backpinning probe (red) |
1 |
Carry case |
| 2 |
Multimeter probe (black) |
2 |
S-Hook |
More information on the Diesel diagnostic kit

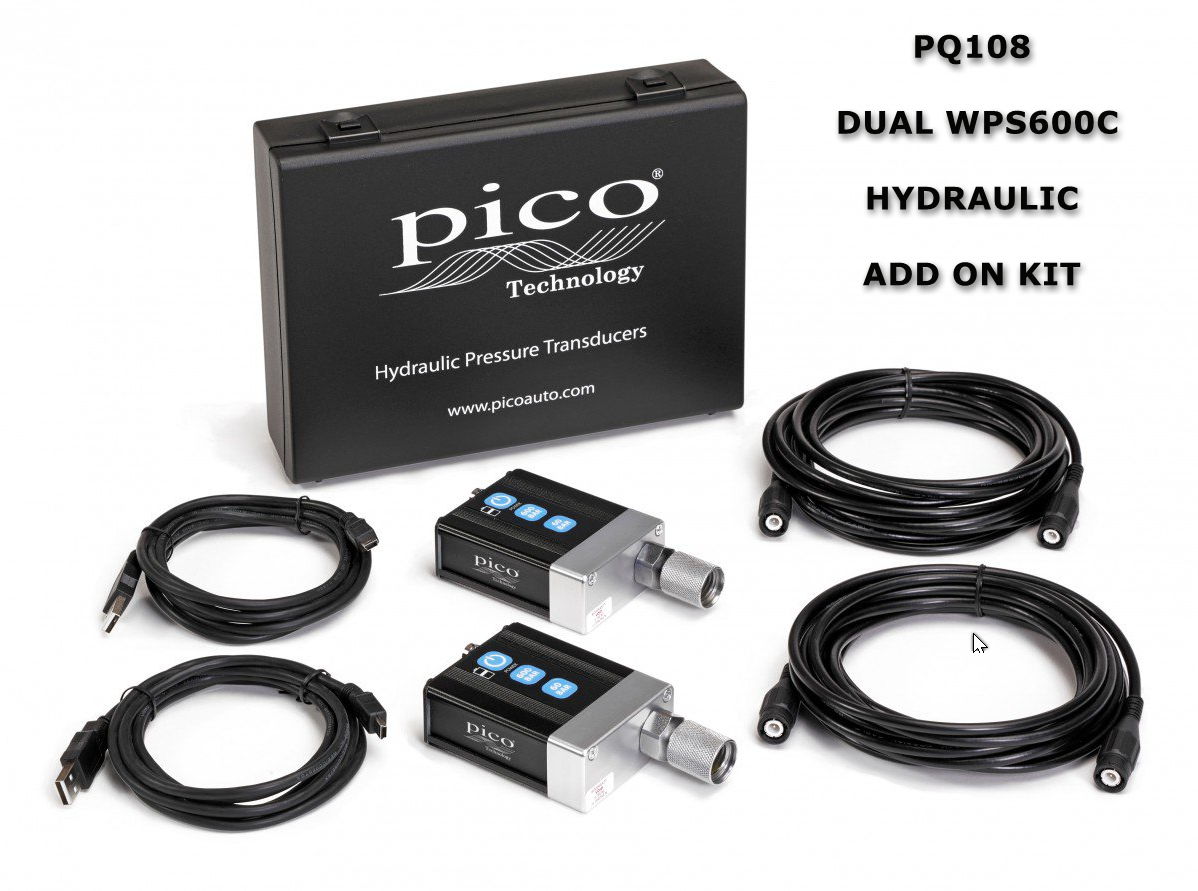

Dual WPS600C add on kit
| 2 |
WPS600C pressure transducer |
1 |
Carry case |
| 2 |
USB charging cables |
2 |
BNC to BNC 2 M cables |
| 1 |
User’s Guide |
|
|
The Engine and Hydraulics diagnostics kit also includes a box of 18" gear ties and a pair of 5M long TA130 BNC to BNC cables in additon to those normally shipped with the Dual Hydraulics add on kit.
Nothing compares to the WPS600C
It is not unusual to require a different pressure transducer for each diagnostic test you want to run. The WPS600C eliminates this need by giving you one ultra-high resolution transducer that can be used for a multitude of hydraulic diagnostics applications. With two pressure ranges and a rechargeable Li-Po battery, all enclosed in a durable housing the WPS600C is the cost-effective answer to pressure analysis.
When price, performance and versatility matter, there is nothing that compares to the WPS600C Pressure Transducer.
