PT-100 Temperature Sensors and Probes

Platinum resistance thermometers (PRTs) offer excellent accuracy over a wide temperature range (from -200 to 850 °C). Sensors are interchangeable between different manufacturers, and are available in various accuracy ratings and packages to suit most applications. Unlike thermocouples, it is not necessary to use special cables to connect to the sensor.

We supply a range of Class A, Class B and tenth–DIN sensors. Specialist manufacturers can provide sensors with 0.001 at 0 °C accuracy (at a price). Please note that the accuracy specifications stated below relate to the SENSOR ONLY. It is necessary to add the sensor error to the PT-104 error.

For more information please see our application note on choosing PT100 sensors.

• General purpose / low–cost probes
• Immersion probes
• Insertion probes
• Air probes

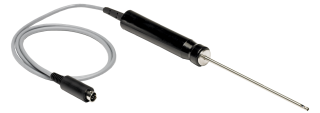

General Purpose / Low–Cost PT100 Probes

Probe type	SE011
Temperature range	-30 to 200 °C
Accuracy	±0.15 °C @ 0 °C
Dimensions Length Diameter Cable	150 mm 6 mm 2 m
Material	Stainless steel probe, PVC cable
Handle	No
Price

Immersion PT100 Probes

Probe type	SE012
Temperature range	-50 to 250 °C
Accuracy	±0.03 °C @ 0 °C
Dimensions Length Diameter Cable	150 mm 4 mm 2 m
Material	Stainless steel probe, PTFE cable
Handle	No
Price

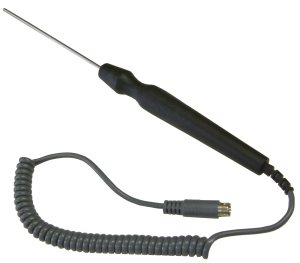

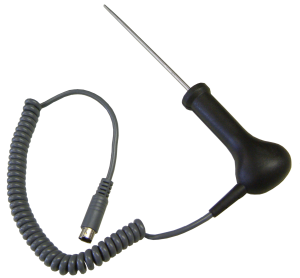

Insertion PT100 ProbesColumn►

Probe type	SE015
Temperature range	-75 to 250 °C
Accuracy	±0.15 °C @ 0 °C
Dimensions Length Diameter Cable	120 mm 3.3 mm 1 m
Material	Stainless steel probe, PVC cable
Handle	Yes
Price

Air PT100 Probes

Probe type	SE017
Temperature range	-75 to 250 °C
Accuracy	±0.15 °C @ 0 °C
Dimensions Length Diameter Cable	120 mm 3.3 mm 1 m
Material	Stainless steel probe, PVC cable
Handle	Yes
Price
