SC76 Differential Pressure Sensor

logo
  US Prices
CDN Prices

Privacy and Security Policy
sc76
sc76 sc76

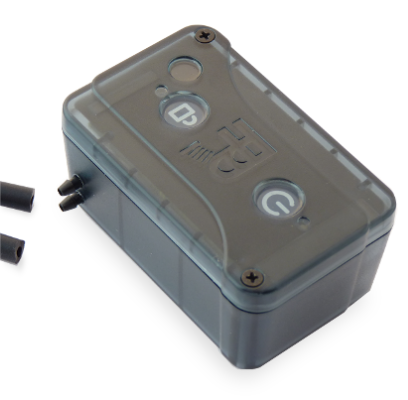

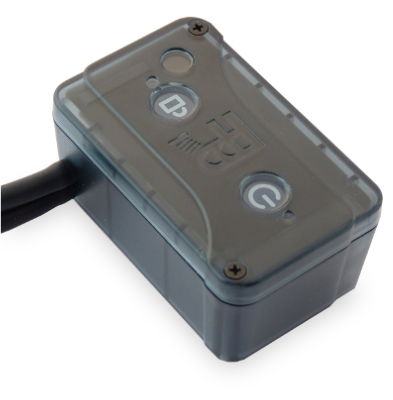

The SC76 Differential Pressure Sensor can monitor the differential pressure between two air spaces. The two nipple fittings on the case can be connected to airspaces using the included tubing, allowing the sensor to measure differential pressure between the two sources. Differential pressure requirements are typically found in hospital clean rooms, operating rooms, and construction areas. Air handlers, filtration systems and other pitot tube sensors also require differential pressure measurements.



What's Included:

  • SC76 Differential Pressure Sensor
  • 2 AAA batteries (installed)
  • 2' (0.7m) of extra rubber tubing (5/32" OD)


Features:

  • Measures ±1 psi (±6.9 kPa) differential pressure
  • Low power design - Battery powered sensor provides installation location flexibility
  • Long battery life expectancy – 7-10 years
  • Compact size convenient for easy installation
  • Industry leading data storage – up to 120 Billion points
  • Powerful DataRecorder software included to chart, log, monitor all individual sensors
  • HaloCloud service for access to remote sensor data and configuration from anywhere including from Tablets, Smart Phones, Remote PCs
  • Programmable individual sensor alarm set points and alarm notification via email or Text message with HaloCloud service
  • Complete setup requires one System Gateway (GWx series). Add sensors as needed with scalable system and gateways capable of handling hundreds of sensors at a single location
  • Compliant to RoHS Directive 2002/95/EC


Application Examples:

  • Energy Management, Auditing, Monitoring, Analytics
  • HVAC Systems
  • Filtration System Monitoring
  • Environmental Data Acquisition and Studies
  • Medical /Pharmaceutical
  • Hospitals
  • Greenhouses
  • R&D
Model Number SC76
Measurement Channels Differential pressure
Sensor Internal differential pressure sensor
Measurement Range ±1 psi (±6.9 kPa)
Units psi, kPa, mbar, in H20
Sample Rate 10 Hz to 32 Hrs
Sensor Response Time (90%) Approx. 1 sec
Resolution 0.001 psi (6.9 Pa)
Calibrated Accuracy ±0.03 psi (±0.2 kPa)
Digital I/O Channels N/A
Temporary Sensor Memory 1000 data points
Long -term Memory (using Gateway): Up to 120 billion data points
LED Indicator Green, power and programming indicator
Required Interface Package Gateway (GWx series)
Wireless Data Security AES-256 Encryption
Radio Power 250mW
RF Carrier Frequency 902-928 MHz
RF Transmit Data Rate Auto-adjusting 32-196kbps
Hopping Channels 25
Modulation GFSK
Transmit Power 20dBm
Receiver Sensitivity -110dBm typical
Range (Line of sight) Up to 1700’ (0.3 Miles)
Range (Typical indoors) Up to 150'
Power Requirements AC power or battery (std 2/3AA lithium)
Typical Battery Life 4 months
Enclosure Material Ruggedized polycarbonate plastic
Upgradable Firmware Yes
Indoor/Outdoor Indoor
Operating Environment -40~ 85°C (-40~ 185°F); 0~95%RH non-condensing using optional lithium batteries (supplied alkaline batteries -15~ 55°C)
Dimensions 70x45x22 (mm) (2.76" x 1.77" x 1.73")
Weight 6oz. with batteries
Approvals US(FCC), CA(IC)
Warranty One (1) year parts and service
