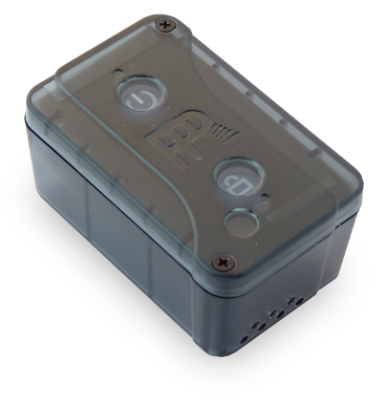

The SC75 CO2 Sensor can measure indoor CO2 concentrations in order to determine indoor air quality (IAQ). The SC75 offers a dual-mode power option, allowing the sensor to use an AC wall adapter for best performance, or up to 4 months operation using the built-in battery at a slower sample rate. By placing SC75 sensors in building spaces, ASHRAE IAQ performance can be easily monitored and verified.
|
What's Included:
- SC75 CO2 Sensor
- 1/2AA lithium battery (installed)
- A/C wall transformer
Features:
- Measures 0-5% ambient CO2 levels
- Dual power options: either AC wall powered, or battery powered
- With AC wall power, provides down to 5 second sample rate
- With battery power, provides down to a 2 minute sample rate
- Low power design - Battery powered sensor provides installation location flexibility
- Battery life expectancy – 4 months operating on only battery power
- Compact size convenient for easy installation
- Industry leading data storage – up to 120 Billion points
- Powerful DataRecorder software included to chart, log, monitor all individual sensors
- HaloCloud service for access to remote sensor data and configuration from anywhere including from Tablets, Smart Phones, Remote PCs
- Programmable individual sensor alarm set points and alarm notification via email or Text message with HaloCloud service
- Complete setup requires one System Gateway (GWx series). Add sensors as needed with scalable system and gateways capable of handling hundreds of sensors at a single location
- Compliant to RoHS Directive 2002/95/EC
Application Examples:
- Energy Management, Auditing, Monitoring, Analytics
- HVAC Systems
- Building Air Quality
- Environmental Data Acquisition and Studies
- Medical /Pharmaceutical
- Hospitals
- Employee Safety
- Greenhouses and Plant Growth Solutions
- R&D
| Model Number |
SC75 |
| Measurement Channels |
CO2 |
| Sensor |
Internal 0-5% CO2 NDIR sensor |
| Measurement Range |
0-5% (0-5000ppm) |
| Units |
%, ppm |
| Sample Rate |
10 Hz to 32 Hrs |
| Sensor Response Time (90%) |
Approx. 3 min |
| Resolution |
0.02% (±20ppm) |
| Calibrated Accuracy |
±0.1% (±100ppm) |
| Digital I/O Channels |
N/A |
| Temporary Sensor Memory |
1000 data points |
| Long -term Memory (using Gateway): |
Up to 120 billion data points |
| LED Indicator |
Green, power and programming indicator |
| Required Interface Package |
Gateway (GWx series) |
| Wireless Data Security |
AES-256 Encryption |
| Radio Power |
250mW |
| RF Carrier Frequency |
902-928 MHz |
| RF Transmit Data Rate |
Auto-adjusting 32-196kbps |
| Hopping Channels |
25 |
| Modulation |
GFSK |
| Transmit Power |
20dBm |
| Receiver Sensitivity |
-110dBm typical |
| Range (Line of sight) |
Up to 1700’ (0.3 Miles) |
| Range (Typical indoors) |
Up to 150' |
| Power Requirements |
A/C power or battery (std 1/2AA lithium) |
| Typical Battery Life |
4 months without A/C power (10 years with A/C power) |
| Enclosure Material |
Ruggedized polycarbonate plastic |
| Upgradable Firmware |
Yes |
| Indoor/Outdoor |
Indoor |
| Operating Environment |
-40~ 85°C (-40~ 185°F); 0~95%RH non-condensing using lithium batteries |
| Dimensions |
70x45x22 (mm) (2.76" x 1.77" x 1.73") |
| Weight |
6oz. with batteries |
| Approvals |
US(FCC), CA(IC) |
| Warranty |
One (1) year parts and service |
