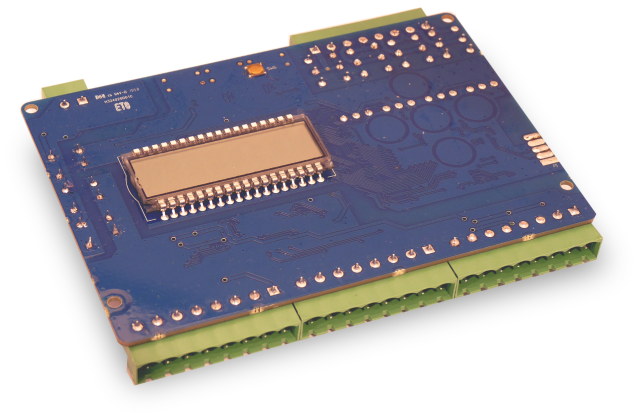

The RP2 wireless controller provides 4x 240V/10A relay outputs, 5 universal outputs (0-10V), and one 4-20mA output. For inputs, is accepts 3 universal inputs, 4 AC voltage detectors, and one 4-20mA input to provide a single controller device capable of controlling simple machines or systems. The RP2 can seamlessly communicate with any of our other wireless products to provide remote reading or control capability, as well as allowing system integrators to integrate a wide variety of sensor or control types.

Control program templates can be developed using a Javascript-style language API. Program templates can then be utilized by any user for installation in any system. We also provide programming services for our customers, and can quickly provide customized programming for any application.


What's included
  • RP2 Wireless Controller

Features
  • 4x 240V/10A relay outputs
  • 5x universal outputs (0-10V)
  • 1x 4-20mA output
  • 3x universal inputs (0-10V)
  • 1x 4-20mA input
  • 4x AC voltage detector inputs (RP2 only)
  • Infinite expandability with our entire wireless product line
  • Compact size convenient for easy installation
  • HaloCloud service for complete remote access and configuration from anywhere including from Tablets, Smart Phones, Remote PCs

Application Examples

  • HVAC equipment control
  • Machinery control
  • PLC replacement
  • Advanced alarming
  • Automation integration
  • Simple HMIs for systems




Specifications




Model Number RP2
Measurement Channels Voltage, current
Sensors 3x universal inputs (<= 10V), 1x 4-20mA input, 4x AC detectors (24V-240V)
Controls 4x 240V/10A relays, 5x universal outputs (0-10V), 1x 4-20mA output
Sample Rate 10 Hz to 32 Hrs
Resolution 0.01V, 0.02mA
Calibrated Accuracy ±0.02V, ±0.04mA
Digital I/O Channels N/A
Temporary Sensor Memory 1000 data points
Long-term Memory (using Gateway): Up to 120 billion data points
Display 8 position LCD
Interface 5 button keypad
Required Interface Package Gateway (GWx series)
Wireless Data Security AES-256 Encryption
Radio Power 250mW
RF Carrier Frequency 902-928 MHz
RF Transmit Data Rate Auto-adjusting 32-196kbps
Hopping Channels 25
Modulation GFSK
Transmit Power 20dBm
Receiver Sensitivity -110dBm typical
Range (Line of sight) Up to 1700’ (0.3 Miles)
Range (Typical indoors) Up to 150'
Power Requirements 24V AC or 24V DC
Enclosure Material ABS (black), Kydex (black)
Upgradable Firmware Yes
Indoor/Outdoor Indoor
Operating Environment -40~ 85°C (-40~ 185°F); 0~95%RH non-condensing using optional lithium batteries (supplied alkaline batteries -15~ 55°C)
Dimensions 70x45x22 (mm) (2.76" x 1.77" x 1.73")
Weight 5oz. with batteries
Approvals US(FCC), CA(IC)
Warranty One (1) year parts and service
