Kvaser Memorator Light HS v2

EAN

73-30130-01058-1

Designed for troubleshooting any CAN-based (controller area network) system, the Kvaser Memorator Light HS v2 is an easy-to-use tool for logging serial data, with no software setup required. With an autobaud function that determines CAN bus bit rate, the Kvaser Memorator Light can be attached to any high-speed CAN bus without configuration. All CAN bus traffic is logged in a circular buffer, overwriting the oldest data when the buffer becomes full. A separate circular buffer keeps track of error frame conditions and the message traffic that occurs near the conditions.



Major Features:



  • Single high-speed CAN channel (compliant with ISO 11898-2).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports bit rates from 50 Kbit/sec up to 1 Mbit/sec.
  • Autobaud function determines CAN bus bit rate.
  • Always in silent mode - log bus traffic without interfering.
  • Fixed 1GB internal storage.
  • Two FIFO buffers; one logs all messages on the bus, the other buffer logs approximately 1000 messages before and after an error frame.
  • Built-in real time clock (calendar) with battery backup.
  • LEDs alert the user to device status.

The Kvaser Memorator Config Tool provides easy access to the recorded data when connected to the device via a USB port. The tool supports multiple formats used by popular analysis software. In addition, the extraction software allows the user to clear and reinitialize the device's memory.





Tech Specs



BITRATE

50-1000 kbps

TEMP RANGE

-40 - 85 °C

MESSAGES PER SECOND RECEIVE

20000 mps

WEIGHT

150 g

LENGTH

127 mm

HEIGHT

22 mm

CHANNELS

1

CERTIFICATES

CE, RoHS

INTERFACES

USB

CATEGORIES

Interfaces, Dataloggers, PC INTERFACES, CAN

OS

Linux, Win 7, Win Vista, Win 10, Win 8

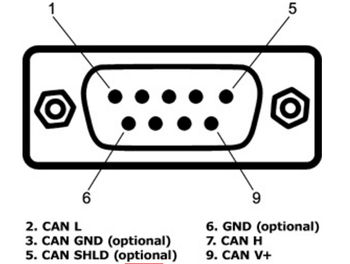

CONNECTORS

DSUB 9

INTERNAL MEMORY

1

GALVANIC ISOLATION

No

ERROR FRAME GENERATION

No

ERROR COUNTERS READING

No

SILENT MODE

Yes

MATERIAL

PC-ABS

SOUND

No

TIMESTAMP R (µ)

2 µs

MESSAGES PER SECOND SENDING

20000 mps



CURRENT CONSUMPTION

Up to 3W
