By using a Virtual CAN Bus, we separate the control task from other tasks. The distributed embedded control system can be developed using standard CAN Controllers and transceivers in a traditional way with well proven tools.
Other tasks such as encryption, transmitter authentication, re-flashing, etc. can be developed by experts in these fields and carried out by using other protocols. With modern technology, the different tasks can run in parallel and simultaneously communicate on the same physical layer.
It is a great advantage to separate the control problems from other problems. The control problem can be solved once and for all by the control experts and other problems by experts in their respective technology fields.

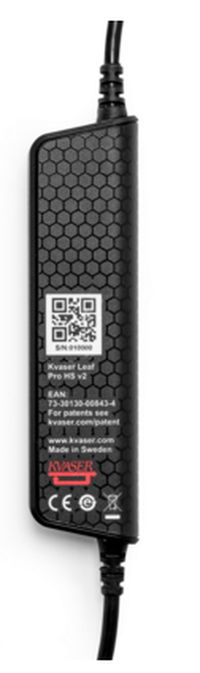

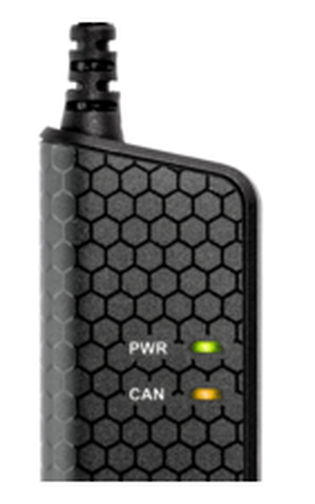

Kvaser Leaf Pro HS v2 is an evolution of the Leaf family that bring programmability to user’s fingertips, as well as CAN with Flexible Data-Rate (CAN FD). Kvaser’s Pro versions boast a high transmit capability that meets the needs of CAN FD frames. It also supports customisation using Kvaser’s t programming language. For example, users can run a t program to speed up file transfer protocols or to emulate ECUs and other devices by generating traffic and handling protocols. This model has a standard 9-pin DSUB, bus is also available with a 16-pin OBDII connector. Please see Kvaser Leaf Pro HS v2 OBDII for details.
• Supports CAN FD.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
• Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
• Simultaneous operation of multiple devices.
Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus.
A free of charge, general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Windows 2000 or later is recommended but Windows 98 should also work.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
