Kvaser Logo

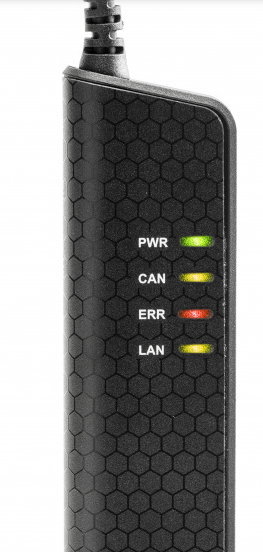

Kvaser Ethercan HS

EAN: 73-30130-00976-9

The Kvaser Ethercan HS is a powerful, real-time Ethernet to CAN interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world. Built-in Power over Ethernet (PoE) eliminates the need for a separate power cable when you can't power the device from the CAN bus.

Kvaser’s Ethercan product range makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or WAN, using the standard Kvaser CANlib API. Users of the Kvaser Ethercan HS can also choose to connect to the device using the built-in REST API for web-enabled devices, such as smartphones.
As a programmable interface, the Kvaser Ethercan HS is suited to advanced applications, such as ECU reflashing. For example, a t program could be created to process CAN messages locally in the device, removing the latency of WiFi and/or Ethernet
.




Datasheet (A4) Datasheet (US letter) Installation Guide



Major Features



  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Networked CAN interface with Kvaser t programmability.
  • Supports Kvaser REST API, enabling CAN data exchange with a variety of web-enabled devices.
  • Time stamp accuracy of 25 µs.
  • Ethernet connection has auto-MDIX, so it automatically detects and adjusts for the Ethernet cable being used.
  • Built-in Power over Ethernet (PoE) - receives data and power over the Ethernet cable.
  • Also receives power over CAN so the Ethercan can be powered through devices such as the Kvaser DB9-Power Inlet.
  • Small, lightweight plastic housing with galvanic isolation.
  • Fully compatible with J1939, CANopen, NMEA 2000R and DeviceNet.
  • Includes Ethercan Factory Reset Device. This device provides the ability to reset the Ethercan's IP address to factory defaults at the push of a button.
  • Supports Windows Vista or later.







Tech Specs

BITRATE

40-1000 kbps

BUFFERS

On Board Buffer



CATEGORIES

PC Interfaces

CERTIFICATES

CE, RoHS



CHANNELS

1

CONNECTORS

DSUB 9

CURRENT CONSUMPTION

PoE (Power over Ethernet) IEEE 802.3af or
CAN 9V to 35V DC



ERROR COUNTERS READING

No

ERROR FRAME GENERATION

No



GALVANIC ISOLATION

Yes

HEIGHT

17 mm

INTERFACES

Ethernet RJ45

LENGTH

165 mm



MATERIAL

PA66

MESSAGES PER SECOND RECEIVE

20000 mps

MESSAGES PER SECOND SENDING

20000 mps

SILENT MODE

No

SOUND

No

TEMP RANGE

-20 - 70 °C

OS

Win 7, Win Vista, Win 10, Win 8

TEMP RANGE

-20 - 70 °C
WEIGHT

120 g






Downloads

DRIVER
Kvaser DIADEM driver This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. VERSION
V4.1.0
Kvaser Drivers for Windows Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus.
VERSION
V5.27.776
FIRMWARE
Kvaser Firmware Update Tool Firmware Update tool for most Kvaser devices. VERSION
V4.16.779
KVASER SOFTWARE
Kvaser CANKing A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus. VERSION
V6.10.753
DEVELOPMENT KITS AND TOOLS
Kvaser CANlib SDK Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C , C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately. VERSION
V5.27.776
Kvaser LabView VI Library for CAN Library for National Instrument's LabView version for all Kvaser CAN hardware. VERSION
V6.1.0
DOCUMENTATION
Kvaser Ethercan Light HS Users Guide User's guide for Ethercan Light VERSION
V2.1.190303
Kvaser Remote Device Configuration XML Format Description of the XML configuration format for Kvaser Remote devices. VERSION
V4.8.190303
Python module The Canlib module is a Python wrapper for Kvaser CANlib SDK VERSION V1.9.909
