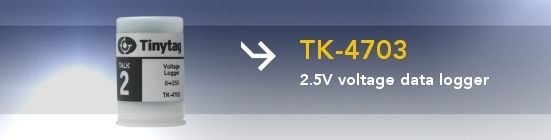

TK-4703 DC Voltage Logger

US Prices
CDN Prices

Privacy and Security

Supplied with an input cable, this logger can measure voltages up to 2.5V DC and can be connected to many industry standard devices, such as CO2 sensors and current clamps, enabling the logging of a wide range of process parameters.

The unit is particularly useful when space is at a premium.


Features

  • Voltage recorder
  • 16,000 readings capacity
  • High accuracy and reading resolution
  • Fast data offload
  • Low battery monitor
  • User-programmable alarms
  • User-replaceable battery
  • USB or serial download cables


acrobat logo  Download Datasheet

You will also need...
Software
Data Logger Software - Image

Tinytag Explorer, Windows software to configure, offload and analyse data from all Tinytags. The software is provided as a site licence and can be bundled with the appropriate download cable for your logger.

Connection

Data Logger Connection - Image    cab-0005-usbThere are two cables available to download data from this logger. The preferred option, the CAB-0005-USB, can connect to any of your computer's USB ports. If you have an older computer, a CAB-0005 serial cable is also available.


  Services

Calibration
Data Logger Calibration - Image

Optional UKAS traceable calibration certificates for this single channel data logger can be purchased, for more details visit Tinytag calibration.
