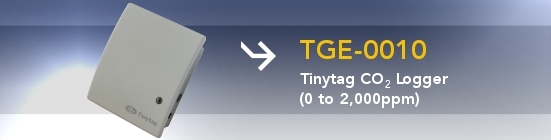

The TGE-0010 CO2 logger has a reading range of 0 to 2,000ppm which is ideal for many building monitoring applications. The logger is mains powered and suitable for monitoring in offices and workplaces, and also commonly used in schools to ensure that rooms are well ventilated and CO2 levels do not exceed recommended limits.
Tinytag CO2 data loggers use a self-calibrating NDIR (Non-Dispersive Infrared) sensor to accurately monitor carbon dioxide levels.
The TGE-0010 is priced at ~$540.00
A starter pack that includes this CO2 data logger, the Tinytag Explorer Software and a download cable is available for ~$580.00
For more information on CO2 monitoring, please see this application sheet: CO2 Monitoring.
Features
- Reading range 0 to 2,000ppm
- <± (50ppm 2% of measuring value) accuracy
- 0.1ppm reading resolution
- Self-calibrating to ensure accuracy
- Mains powered (UK, EU & US adaptor supplied)
- Discreet design for unobtrusive deployment
- Flashing red LED indicates if power supply interrupted
- User-defined upper ppm level limit will trigger LED
Download Datasheet Enquire now
You will also need...
Software
Tinytag Explorer, Windows software to configure, offload and analyse data from all Tinytags. The software is provided as a site licence and can be bundled with the appropriate download cable for your logger.
Connection
There are two cables available to download data from this logger. The preferred option, the CAB-0005-USB, can connect to any of your computer's USB ports. If you have an older computer, a CAB-0005 serial cable is also available.
Services
Calibration
Optional UKAS traceable calibration certificates for this single channel data logger can be purchased, for more details visit Tinytag calibration.
|
