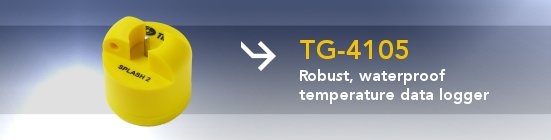

Waterproof high temperature data logger

-30 to 105°C
The TG-4105 is a waterproof temperature data logger able to withstand temperatures up to 105°C. It monitors from -30 to 105°C and is suited to applications such as washer disinfectors and industrial dishwashers. It has a robust, high visibility yellow case with a short external probe for fast response times.

This logger requires Tinytag Explorer software and an inductive pad (ACS-3030) - see below

Inductive
Submersible


Features
  • Fast response time
  • Submersible temperature recorder
  • Waterproof to 15m
  • 32,000 reading capacity
  • User-programmable logging interval
  • 2 user-programmable alarms
  • Delayed and trigger-start options
  • 3 stop options
  • Low battery warning
















Tinytag Explorer Software

This is the easy to use Windows program needed to configure the logger and present the data. The Tinytag Explorer software licence allows unlimited users on one site

Find out more about the Tinytag Explorer software


Connection Required - AC-3030


The ACS-3030 inductive pad is the offload connection for Tinytag Splash 2 and Aquatic 2 data loggers; ideal for use in wet or harsh environments, it is also compatible with the Transit 2 logger. It plugs into the PC via a USB cable facilitating the offloading of multiple loggers without the need to directly connect a cable to the logger.

The inductive pad is also available bundled with Tinytag Explorer software as a Software Pack.








Calibration Certificates


You have the option of purchasing calibration certificates with our loggers. Standard measurement points are 0 and 30°C for temperature, 20 and 80 % RH (at 25°C) unless specified otherwise. If you don't order calibration, we guarantee the accuracy figures on our datasheets at the point of purchase.

Find out more about Tinytag calibration
