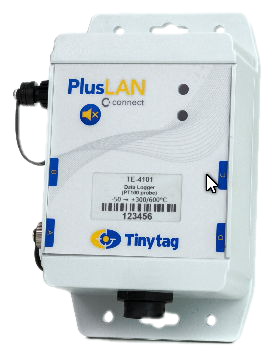

Tinytag Plus LAN

TE-4101

logo

US Prices
CDN Prices

Privacy and Security Policy

Very high temperature Ethernet data logger for use with a PT100 probe

-50 to 600°C

This data logger uses one of the Tinytag PT100 probes for very high temperature monitoring. PT100 probes monitor from -50 to 300/600°C making the unit a versatile solution for many high temperature industrial and process applications. It plugs directly into a network point and sends data via the LAN for immediate viewing in the Tinytag Explorer Connect software.


The logger is supplied with: a PoE injector, and an RJ45 shroud.

LAN loggers can be mixed and matched with Tinytag Plus Radio and Ultra Radio data loggers within an application to meet particular site layout and infrastructure requirements.


See data sheet for restrictions on domestic use.



tgp-4017 sheet download Data Sheet | tgp-4017 sheet download Application Notes  |tgp-4017 sheet download Manual



Introduction to Tinytag Connect

Tinytag Connect is a central data management feature for Radio and LAN loggers giving users on a network remote access to data being recorded. Data is presented in the Tinytag Explorer Connect software: a viewing pane presents a global view of the monitoring application: information from multiple points can be easily accessed by any permitted user on a LAN, or over the internet by setting up VPN access to the computer running the system.

Connect functionality enables multiple loggers to be configured and downloaded simultaneously, and they record locally in the event of communications problems ensuring no data is lost. Alarm warnings, either audible or sent via email enable corrective action to be initiated.

Tinytag LAN loggers also operate as individual standalone devices without Connect functionality, sending their data from their location via a network point for viewing on a PC in the standard Tinytag Explorer software.

Find out more about Tinytag Connect

Features

  • LAN/Ethernet connectivity
  • Uses a PT100 probe
  • PoE with battery back-up
  • Easy to install
  • Robust data communications
  • Local recording
  • High accuracy and reading resolution
  • Remote alarm signalling
  • Case waterproof to IP67


Tinytag PT100 High Temperature Probes

Suitable for very high temperature applications including oven and process monitoring, PT100 probes monitor from -50 to either 300°C or 600°C and are waterproof to IP68.






Tinytag Explorer Software

This is the easy to use Windows program needed to configure the logger and present the data. The Tinytag Explorer software licence allows unlimited users on one site.

Find out more about the Tinytag Explorer software





Calibration Certificates

You have the option of purchasing calibration certificates with our loggers. Standard measurement points are 0 and 30°C for temperature, 20 and 80 % RH (at 25°C) unless specified otherwise. If you don't order calibration, we guarantee the accuracy figures on our datasheets at the point of purchase.

Find out more about Tinytag calibration


Buy TE-4101 Online: PLEASE CALL US TO ORDER!
