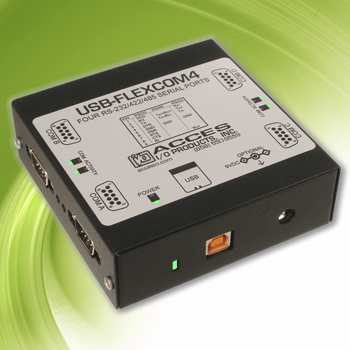

USB-FLEXCOM4

USB to 4 RS232/422/485 Ports

Features

• Four-port serial communications adapter for USB 1.1 and USB 2.0 host ports
• Supports field selectable RS-232, RS-422 or RS-485 protocols, per port
• Includes type FT232BM UART with 384-byte receive/128-byte transmit FIFO buffers
• Speeds up to 921.6kbps simultaneously
• Power LED and individual port activity LEDs next to the USB and each COM connector
• All required power drawn from USB port, no external power adapter required
• Compact, low profile enclosure

FACTORY OPTIONS

• -OEM Board only version with no enclosure
• -HDR OEM board with 10-pin vertical male headers instead of DB9s
• -DIN DIN rail mounting bracket
• -RoHS Available in a RoHS compliant version.

APPLICATIONS

• Multiple POS peripherals
• Barcode scanners
• Scales
• Date-entry terminals
• Data acquisition and automation modules

• Description
• Specifications
• Manuals / Software
• Ordering Information

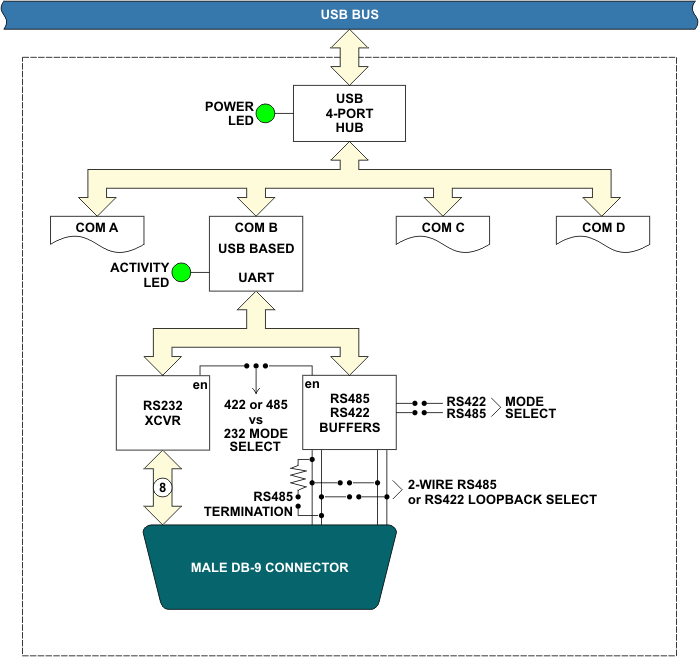

This flexible serial communications adapter was designed for effective multipoint transmission in any one of three modes on each channel. These modes are RS232, RS422 and RS485 (EIA485) protocol.

OEM USB/104 FORM FACTOR

The OEM (board only) version is perfect for a variety of embedded applications. What makes the OEM option unique is that its PCB size and mounting holes match the PC/104 form factor (without the bus connections). This allows our rugged USB to quad-serial port board to be added to any PCI-104 or PC/104 stack by connecting it to a simple USB port usually included on-board with embedded CPU form factors such as EBX, EPIC, and PC/104. This is especially important since many newer CPU chipsets do not support ISA and have plenty of USB ports. The USB-FLEXCOM4 OEM board can also be installed using standoffs inside other enclosures or systems.

ACCESSORIES

The USB-FLEXCOM4 is available with optional cable assemblies and screw terminal adapter board ADAP9.

SOFTWARE

The USB-FLEXCOM4 is plug-and-play which allows quick connect or disconnect whenever you need additional I/O on your USB port. The USB-FLEXCOM4 is supported for use in most USB supported operating systems and includes a free Linux and Windows 98se/Me/2000/XP/2003 compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, C Builder, and Visual C for Windows. Also incorporated is a graphical setup program in Windows. Embedded OS support include Windows Xpe.

OEM Version

Communications Interface

• Serial Ports: COM A through COM D via four male DB9 connectors
• Character length: 5, 6, 7, or 8 bits
• Parity: Even, odd or none
• Stop Interval: 1, 1.5, or 2 bits
• Serial Data Rates: Up to 921.6k for RS-422 and RS-485 modes, asynchronous RS-232 speeds up to 230.4kbps.
• Receiver Input Sensitivity: 200 mV, differential input
• Common Mode Rejection: 12V to -7V
• Transmitter Output Drive: Up to 60 mA, with thermal shutdown
• Bus Type USB 2.0 Full-Speed
• USB Connector: Type B, high-retention
• Embedded USB Connector 5-pin header, Molex part number 53047 Mating connector housing is Molex part number 51021 0500 -OEM VERSION

  Environmental

• Operating Temperature: 0 °C. to 60 °C
• Storage temperature: -50 °C. to 120 °C
• Humidity: 5% to 95%, non-condensing
• Power Required: 5VDC at approximately 110 mA (plus loads up to an additional 240 mA) from USB bus
• Size: Board Dimension: 3.550 x 3.775 inches (PC/104 size & mounting)
• Box Dimension: 4.00 x 4.00 x 1.25 inches

  DB-9 Male Pin for each of Ch A-D	RS-232 Signals (Industry Standard)	RS-485 Signals (2 Wire)	RS-422 Signals (Also 4wire RS485)
  Ch x pin 1	DCD		RX-
  Ch x pin 2	RX	TX /RX	TX
  Ch x pin 3	TX	TX-/RX-	TX-
  Ch x pin 4	DTR
  Ch x pin 5	Gnd	Gnd	Gnd
  Ch x pin 6	DSR
  Ch x pin 7	RTS
  Ch x pin 8	CTS
  Ch x pin 9	RI		RX
