Active Oscilloscope Probes

 Pico Logo

This range includes high-voltage probes that extend the input range of your scope, and high-frequency probes that boost its input impedance for more accurate measurements.
All active probes require a power supply or batteries. Our battery-powered probes are supplied complete with batteries, while optional AC adaptors are available for the externally powered types. Read our application note: Choosing the right Pico Technology active differential probe.
For making differential measurements from millivolts to 1000V CAT III also consider the PicoScope 4444 differential input oscilloscope


US Prices
CDN Prices

Privacy and Security Policy

Passive probes are located here.....

eBook: Choosing the right Active Differential Probe...     Mobile Version...


High voltage active differential probes



Product Price

100 MHz 1400 V differential oscilloscope probe 100:1/1000:1
TA042



100 MHz 700 V differential oscilloscope probe 10:1/100:1
TA043



15 V AC power adaptor for TA046 active probe
PS009



25 MHz 1400 V differential oscilloscope probe 20:1/200:1
TA057



25 MHz 700 V differential oscilloscope probe 10:1/100:1
TA041



50 MHz 70 V differential oscilloscope probe 10:1
TA058



70 MHz 7000 V differential oscilloscope probe 100:1/1000:1
TA044



9 V AC power adaptor
PS008



Battery pack for active differential probe
TA047



Lemo power cable for Pico TA04x and TA05x active differential probes
TA331






High bandwidth active probes


Product Price


200 MHz 20 V differential oscilloscope probe 10:1
TA045


800 MHz 15 V differential oscilloscope probe 10:1
TA046



TETRIS 1000 1 GHz high-impedance active oscilloscope probe 10:1
TA112



TETRIS 1500 1.5 GHz high-impedance active oscilloscope probe 10:1
TA222



TETRIS 2500 2.5 GHz high-impedance active oscilloscope probe 10:1
TA223





Need more than 2.5 GHz?


Consider our range of PicoConnect 900 high bandwidth passive probes. Low-invasive ultra low tip capacitance means that for high bandwidth applications our passive probes provide less loading on your circuit than active probes costing many times more.



25 MHz, 700 V Differential oscilloscope probe x10/x100 (TA041)

The TA041 is an active differential oscilloscope probe. The probe permits the measurement of signals which are not referenced to earth using a conventional earthed oscilloscope. This enables mains voltages to be tested. It is possible to measure and observe the waveforms of three phase supplies or the gate/control signals of semiconductor circuits. It is ideal for investigation of motor speed controls, uninterruptible power supplies, switch mode power supplies and process controllers.



25 MHz, 700 V Differential oscilloscope probe x10/x100

Specifications

Model TA041 (MI053)
Attenuation ranges 10:1 / 100:1
Differential Voltage Range ±70 V (DC Peak AC) or 70 V RMS (1/10)
±700 V (DC Peak AC) or 700 V RMS (1/100)
Common Mode Voltage Range ±700 V (DC Peak AC) or 700 V RMS (1/10 and 1/100)
Absolute Maximum Voltage (Differential or Common-Mode) ±1400 V (DC Peak AC) or 1000 V RMS CAT III(1/10 and 1/100)
Bandwidth DC to 25 MHz (-3 dB)
Accuracy ± 2%
Rise time 14ns
Input impedance 4 MΩ / 5.5 pF each side to ground
Power requirements 4 x AA cells or 6 V / 60 mA DC mains adapter


Accessories

  • Power supply (UK, EU)


25 MHz, 1400 V Differential oscilloscope probe x20/x200 (TA057)

The TA057 is a CAT III rated differential oscilloscope probe that can measure up to ±1400 volts.


25 MHz, 1400 V Differential oscilloscope probe x20/x200

Specifications

Model TA057
Bandwidth 25 MHz
Common mode ±1400 V
Differential ±140 V, ±1400 V
Battery power Internal
Attenuation 20:1, 200:1
Input impedance 4 MΩ / 5.5 pF
Safety rating CAT III


Accessories

  • Power supply (UK, EU)


50 MHz, 700 V Differential oscilloscope probe x10 (TA058)

The TA058 is a CAT I rated differential oscilloscope probe that can measure up to ±70 volts.

50 MHz, 700 V Differential oscilloscope probe x10


Specifications

Model TA058
Bandwidth 50 MHz
Common mode ±700 V
Differential ±70 V
Battery power Optional (TA047)
Attenuation 10:1
Input impedance 1.6 MΩ / 7 pF
Safety rating CAT I


Accessories

TA047 battery pack

Optional TA047 battery pack

  • Power supply (UK, EU)
  • Battery pack
  • Probus power adapter



70-100 MHz, 700-7000 V Differential oscilloscope probes (TA042, TA043, TA044)

differential oscilloscope probes

The TA042, TA043 and TA044 are active differential oscilloscope probes. They let you use a conventional earthed oscilloscope to measure signals that are not referenced to ground, including mains voltages. They can also be used to measure and observe the waveforms of three-phase supplies or the gate and control signals of semiconductor circuits. They are ideal for investigating motor speed controls, uninterruptible power supplies, switch mode power supplies and process controllers.

Specifications

  TA042 TA043 TA044
Description 100 MHz 1400 V differential probe 100 MHz 700 V differential probe 70 MHz 7000 V differential probe
Attenuation 100:1, 1000:1 10:1, 100:1 100:1, 1000:1
Differential voltage ranges 140 V DC peak AC
100 V RMS
70 V DC peak AC
70 V RMS
700 V DC peak AC
500 V RMS
1400 V peak AC
1000 V RMS
700 V DC peak AC
500 V RMS
7000 V DC peak AC
5000 V RMS
Common mode range 1400 V DC peak AC
1000 V RMS
700 V DC peak AC
500 V RMS
7000 V DC peak AC
2500 V RMS
Bandwidth 100 MHz 100 MHz 70 MHz
Accuracy 2% 2% 2%
Rise time 3.5 ns
Input impedance 4 MΩ / 7 pF each side to ground 4 MΩ / 7 pF each side to ground 10 MΩ / 10 pF each side to ground
Power requirements 4 x AA cells (supplied) 4 x AA cells (supplied) 4 x AA cells (supplied)
Safety rating to GND 1400 V DC peak AC
1000 V RMS
CAT III

1000 V RMS
CAT III
7000 V DC peak AC
2500 V RMS
CAT I
Safety rating between inputs 1400 V DC peak AC
1000 V RMS CAT III
1000 V RMS CAT III 7000 V DC peak AC
5000 V RMS
Test prod rating 1000 V CAT III 1000 V CAT III 1000 V CAT I
Price

* US Dollar prices are approximate.

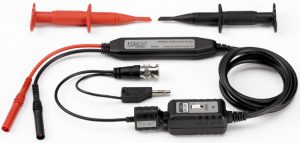

200 MHz, 60 V Differential oscilloscope probe x10 (TA045)

The TA045 is a precision differential probe designed for low-noise applications. An optional battery pack and Probus power adapter are also available.


200 MHz, 60 V Differential oscilloscope probe x10



zoom View Larger Image

Specifications

Model TA045
Bandwidth 200 MHz
Common mode ±60 V
Differential ±20 V
Battery power Optional (TA047)
Attenuation 10:1
Input impedance 500 kΩ / 7 pF



800 MHz, 30 V Differential oscilloscope probe x10 (TA046)

The TA046 is a high-bandwidth differential probe. With a fast 800 MHz bandwidth it is ideal for measuring high-speed differential signals.





800 MHz, 30 V Differential oscilloscope probe x10

Specifications

Model TA046
Bandwidth 800 MHz
Common mode ±30 V
Differential ±15 V
Attenuation 10:1
Accuracy ±2 %
Input impedance 100 kΩ / 2 pF





1-1.5 GHz,  20 V  TETRISTM Active Oscilloscope Probes x10

 TETRISTM active oscilloscope probes can probe adjacent square pins in 2.54 mm  pitch simultaneously. The probe's housing is T-shaped so that multiple probes can be positioned next to each other, allowing multiple measurements to be taken at the same time.  Tetris probezoom View larger image

1 MΩ || 0.9 pF

TETRIS Active Oscilloscope Probe Specifications
  TETRIS 1000 TETRIS 1500 TETRIS 1500
Catalogue number TA112 TA113 TA222
Attenuation 10:1 10:1 10:1
Bandwidth 1 GHz 1.5 GHz 1 GHz *
Input impedance 1 MΩ 1 MΩ 1 Meg Ohm
Input capacitance 0.9 pF 0.9 pF 0.9 pF
Working voltage 20 V 20 V 20V
Cable length 1.3 m 1.3 m 1.3 m
User manuals

(*) with >500 MHz oscilloscope
