Current Viewing Resistors

Series K

 T&M Research Products

DESCRIPTION

Terminating type CVR with threaded stud and mounting flange input connections.



SPECIFICATIONS

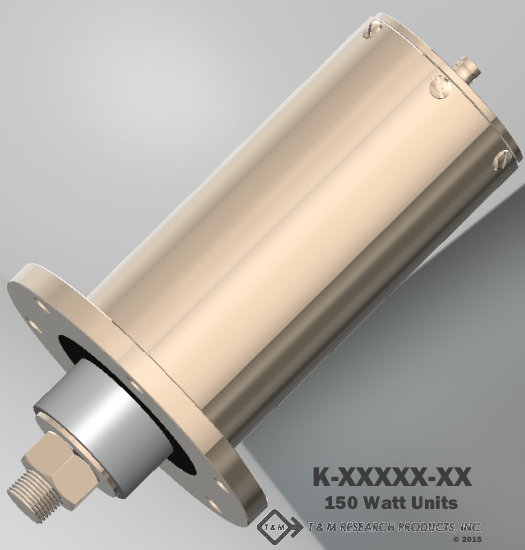

150 Watt Hi-Wattage Units - 10 Inch Overall Length

Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
K-500-1 .01 800  0.45 500
K-1000-2 .005 200 2 1000
K-2000-4 .0025 48 8 2000
K-4000-8 .00125 12  30 4000
K-5000-10 .001 8  45 5000
K-8000-16 .000625 3.2  113 8000
K-10,000-20 .0005 2.2  164 10000
K-16,000-32 .0003 1  250 16000
K-20,000-40 .00025 0.58  872 20000
K-32,000-64 .00015  0.25 2000  32000

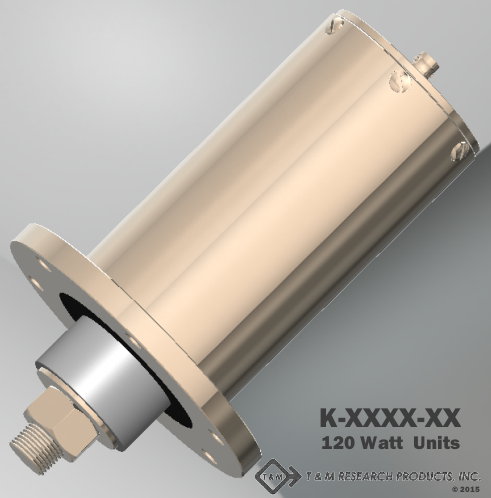

120 Watt Hi-Wattage Units - 9 1/8 Inch Overall Length

Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
K-1600-4 .002  48 8  1600
K-3200-8 .001  12 30  3200
K-6400-16 .0005  3.2 113  6400
K-12,800-32 .00025 1 250  12800
K-16,000-40 .0002  0.58 872  16000
K-21,000-64 .0001 0.25 2000   32000





Model

Hi-Wattage

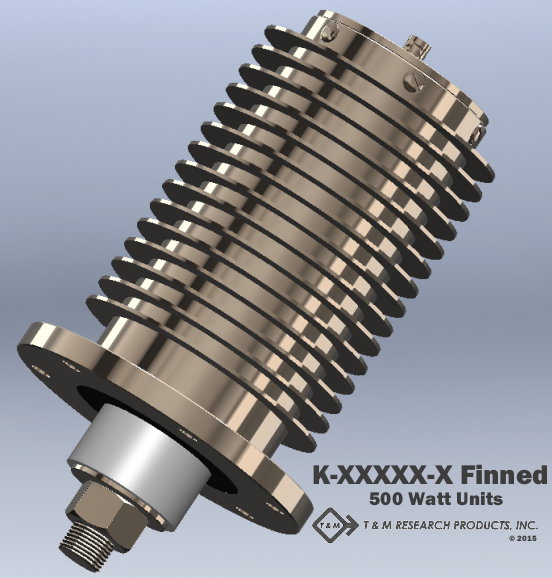

Finned Model

10" 150 Watt 500 Watt
9 1/8" 120 Watt 400 Watt

The Hi-Wattage model is standard.  The wattage's stated are based on heavy current connections with unconfined mounting.  The case temperature should not exceed 140 degrees F (60 degrees C).  Additionally the Finned Models require 200 cubic feet(5.6 cubicmeters) per minute air flow over their cases.  The ambient temperature should not exceed 86 degrees F (30 degrees C).  Operation above this temperature the wattage rating should be derated accordingly.





ORDERING INFORMATION

When ordering specify model number, wattage, output connector and tolerance.

Example:K-5000-10, 150 Watts, BNC, 4%.
