SMARTSTART CELLULAR ROUTERS


Low cost SmartStart LTE Cat.1 and Cat.4 cellular routers and gateways connect Ethernet, RS-232 and I/O devices to a cellular network. Typical applications include remote installations like kisoks, point of sales equipment and lottery terminals.

For Industrial IoT and consumer focused high speed data applications.

  • Power consumption similar to 2G devices. Optimized for solar and battery powered applications. Low Power Mode drops power consumption to 40 mW, and can be triggered by timers, low voltage detection or I/O.
  • Automatic fallback to 2G or 3G in areas where LTE is not yet available.
  • Ethernet, serial RS-232 and I/O for connecting a wide array of field assets with DIN rail or wall mounting.
  • Resilient wireless or wired connections.
  • Enhanced memory to host custom software applications and a wide variety of protocols.
  • Easy deployment, mass maintenance and troubleshooting with our SmartWorx Hub™ remote management and monitoring tools
  • Full range of LTE communications capabilities, including video streams.
Please CONTACT US for a QUOTE


Antennas and power supply are not included.
Please be sure to choose the right fit for your project from the accessory tab.

DETAILS


INTELLIGENT

  • Download our User Modules for specialized functions. Use the router as an AT Modem Emulator, a Modbus RTU/TCP gateway and more
  • Create your own Linux scripts for additional special functions.
  • Create multiple software configurations for each router, and switch between them at any time
  • Upgrade router configuration and firmware from your central server, allowing for simultaneous mass reconfiguration of every router on the network
  • Use a secure Web interface to configure and manage the SmartFlexTM from remote locations.
  • Low power consumption mode for solar and battery power applications



POWERFUL

  • Full support for LTE
  • 256 MB flash memory, 512 MB RAM and 128kB M-RAM
  • Upload speeds of up to 50 Mbit/s and download speeds of up to 100 Mbit/s -- easily handles video applications



SAFE AND SECURE

  • Real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP.
  • Support for DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions



RUGGED AND RELIABLE

  • Dual SIM card ports for automatic failover*
  • Designed and manufactured for use in tough environmental conditions
  • Extended operational temperature range from -40 °C to 75 °C
  • 10-60 VDC operation with transient and reverse polarity voltage protection
  • Industrial certifications



Model No. Description   Price
 SL30200110 SmartStart 1ETH,RS-232,I/O,2SIM
SL30200110-SWH  SmartStart 1ETH,RS-232,I/O,2SIM,SW HUB
SL30210110  SmartStart 1ETH,RS-232,I/O,2SIM,WIFI
 SL30210110-SWH SmartStart 1ETH,RS-232,I/O,2SIM,WIFI, SW HUB
SL30400110 EMEA: LTE FDD Cat.4, UMTS, GPRS,EDGE, 1xETH, 1xRS232, DI/DO, 2xSIM
SL30400110-SWH EMEA: LTE FDD Cat.4, UMTS, GPRS,EDGE, 1xETH, 1xRS232, DI/DO, 2xSIM, SmartWorx HUB
SL30410110 EMEA: LTE FDD Cat.4, UMTS, GPRS,EDGE, 1xETH, 1xRS232, DI/DO, 2xSIM, WiFi
SL30410110-SWH EMEA: LTE FDD Cat.4, UMTS, GPRS,EDGE, 1xETH, 1xRS232, DI/DO, 2xSIM, WiFi, SmartWorx HUB

Please CONTACT US for a QUOTE


SPECIFICATIONS

  • Powerful processor enough to handle the full range of LTE communication
  • 1x Ethernet 100 Mbps - RJ45, 10/100 Mbps, 1.5kV RMS
  • 1x RS232 port – DB9 Female
  • Two SIM card holders on the rear side of the router (given DIN holder on back side) – 2 Mini SIMs (2FF)
  • 1x I/O – 1x Digital Input On Voltage: 2.7V to 36VDC (4-Way Molex moni-fit connector)
  • Input voltage range is from 9 Vdc to 36 Vdc (4-Way Molex moni-fit connector)
  • Power consumption with WiFi – Average / Peak / Sleep Mode – 2,7 / 5.5 W / 40 mW
  • Power consumption without WiFi – Idle / Average / Peak / Sleep Mode – 2,1 / 4.8 W / 40 mW
  • Current with WiFi / without WiFi – 0.65 A Max / 0.55 A Max
  • Temperature range with WiFi – Operating / Storage – -25 to 55 °C / -40 to 85 °C
  • Temperature range without WiFi – Operating / Storage – -40 to 75 °C / -40 to 85 °C
  • Humidity – Operating / Storage (non condensing) – 0 to 95 % / 0 to 95 %
  • Cold Start – -40 °C
  • Operating Altitude – 2000 m / 70 kPa
  • Enclosure Rating – IP30
  • LED Indicators – PWR, DAT, WAN, ETH
  • 2x ANT – R-SMA connectors, WiFi antenna – *optional – R-SMA connector
  • Enclosure Dimensions – 87x30x127mm (150mm including wall month sides)
  • Weight – 187g
  • Wi-Fi 802.11 b/g/n – *optional (AP/STA) 10 clients supported (-40 to 75 °C)
  • Support of IPv6, Easy firmware





DOWNLOADS



Datasheet | Quick Start Guide | Manual




ACCESSORIES


Model No. Product Name and Description Price
SBD25  DIN Clip - SmartStart
AW-A2458G Antenna WiFi 2.4 & 5.8 GHz
RPS-MO4-M Power Supply, SmartStart, 12V/1A

Please CONTACT US for a QUOTE


APPLICATIONS AND RELATED INFORMATION


NEW INTELLIGENT 4G LTE ROUTER & GATEWAY

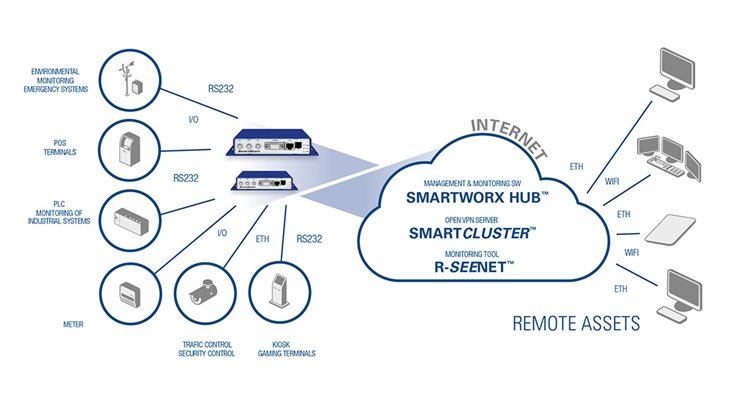

The SmartStart™ LTE Cat.4 family of cellular routers and gateways are the perfect way to connect RS-232 and Ethernet devices to a cellular network. Industrial M2M and IoT applicationsinclude Ethernet lottery machines, ATM stations, kiosk locations, gaming terminals along with RS-232 traffic controllers, meters, UPS systems, PLCs and much more.






The processor is powerful enough to handle the full range of LTE communications capabilities, including video streams. The internal memory provides ample storage for custom scripts, software applications and a wide variety of protocols. In addition to its Ethernet and RS-232 ports, SmartStart™ has built-in digital I/O connectivity. Competing routers in the same price range generally provide only Ethernet or RS-232. StartSmart™ provides all three.

SmartStart™ provides best-in-class power consumption combined with LTE performance, and is optimized for solar and battery powered applications. Low Power Mode extends battery life by dropping power consumption to 40 mW, and can be triggered by timers, low voltage detection or I/O. SmartStart™ is the industry’s only cellular gateway with power consumption equivalent to 2G devices. It is DIN rail and panel mountable.

The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.

SmartStart™ is an excellent fit for applications that are migrating to LTE technology. SmartStart’s™ provides fallback to 3G/2G technologies to ensure that connectivity is reliable in areas where LTE is still under development. This future proofs your existing installations and protects your investment. You can upgrade your systems according to your own schedule, asSmartStart™ will continue to connect your legacy devices, even after the cellular providers sunset their 2G and 3G cellular networks.

SmartStart™ is easy to install using SmartWorx HUB™, a full featured configuration and monitoring tool. Our VPN configuration tool, SmartCluster™, makes it easy to configure multiple routers via the same VPN tunnel.


INTELLIGENT MANAGEMENT SOFTWARE

SmartStart™ is easy to install using SmartWorx HUB™, a full featured configuration and monitoring tool. Our VPN configuration tool, SmartCluster™, makes it easy to configure multiple routers via the same VPN tunnel.

Please CONTACT US for a QUOTE
