 SERIES R

T&M Research Products

CURRENT VIEWING RESISTOR

DESCRIPTION

Terminating CVR with threaded stud and mounting flange input current connections.  BNC output signal connector standard.

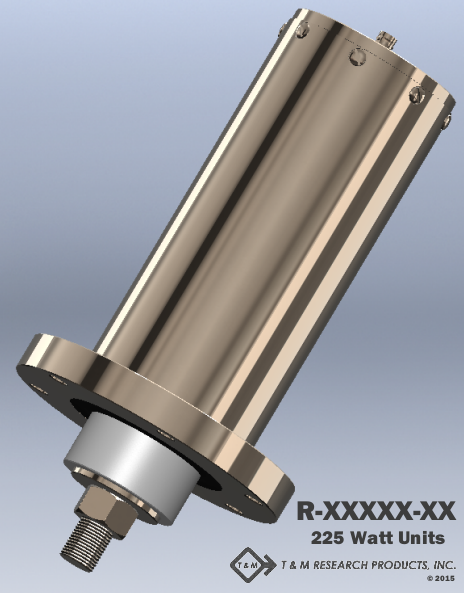

225 Watt Hi-Wattage Units - 12 3/4 Inch Overall Length, 3 3/4 Inch Dia.

Model

Resistance ohms

Bandpass MHz.

Risetime nsec.

Emax joules

R-700-1

.01

800

.45

700

R-1400-2

.005

200

2

1400

R-2800-4

.0025

48

8

2800

R-5600-8

.00125

12

30

5600

R-7000-10

.001

8

45

7000

R-11,200-16

.000625

3.2

113

11,200

R-14,000-20

.0005

2.2

164

14,000

R-22,400-32

.0003

1

250

22,400

R-28,000-40

.00025

.58

872

28,000

R-44,800-64

.00015

.25

2000

44,800

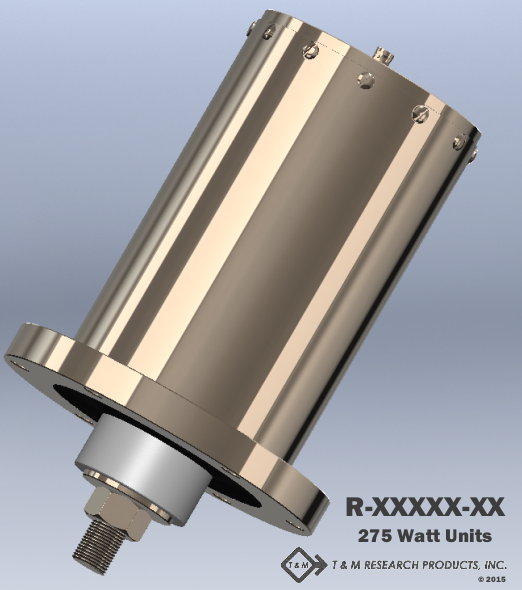

275 Watt Hi-Wattage Units - 11 Inch Overall Length, 5 Inch Dia.

Model

Resistance ohms

Bandpass MHz.

Risetime nsec.

Emax joules

R-7500-8

.001

12

30

7500

R-15,000-16

.0005

3.2

113

15,000

R-30,000-32

.00025

1

250

30,000

R-60,000-64

.000125

.25

2000

60,000





Model

Hi-Wattage

Finned

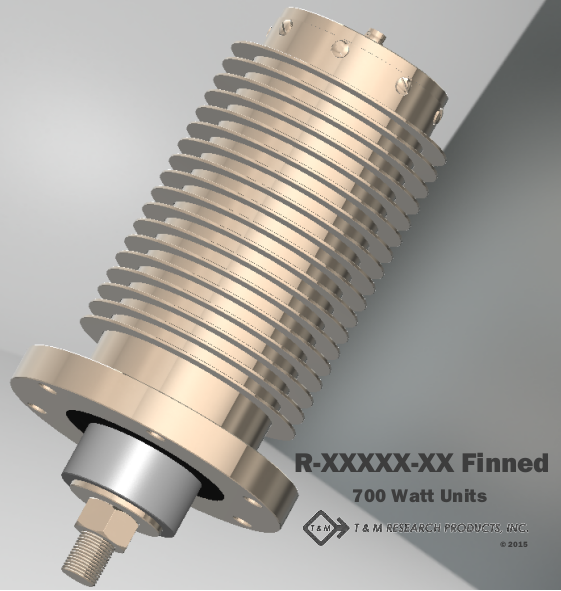

12 3/4" 225 watt 700 watt

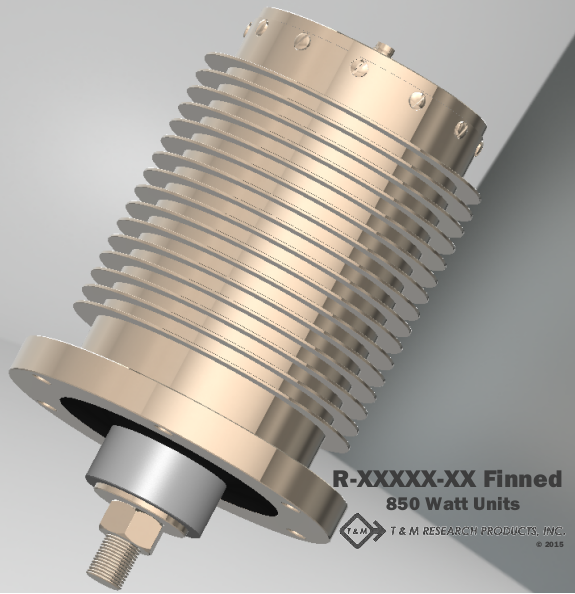

11" 275 watt 850 watt



The Hi-Wattage model is standard.  The wattage's stated are based on heavy current connections with unconfined mounting.  The case temperature should not exceed 140 degrees F (60 degrees C).  Additionally the Finned Models require 300 cubic feet(8.6 cubicmeters) per minute air flow over their cases.  The ambient temperature should not exceed 86 degrees F (30 degrees C).  Operation above this temperature the wattage rating should be derated accordingly.



R Series Shunt



ORDERING INFORMATION

When ordering specify model number, wattage, output connector and tolerance.

Example:R-14,000-20, 225 Watts, BNC, 4%.
