CADPro (Discontinued)

(See DB6-1212 )

Calcomp Logo

CADPro Graphics Tablet



US Prices
CDN Prices

Privacy and Security Policy







Product Features
Product Summary
Current Models
What's in the Box



Product Specifications
Detailed Brochure (pdf)


OBSOLETE and no longer available

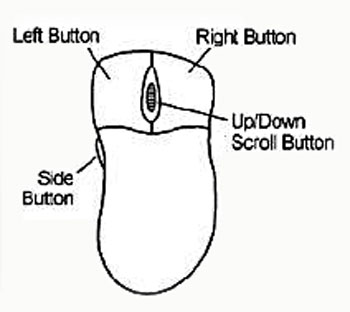

  CadPro 4 Button Cursor CadPro 4 Button Sketch with button Descriptions







Productivity is critical for CAD designers.  With the CADPro small format digitizer and TemplateWorks productivity-boosting software, power and performance are incomparable. The optimal desktop size and programmable pointing devices provide a comfortable environment and enable the swift execution of commands.   Utilizing CADPro and TemplateWorks, the demanding CAD professional will produce high-precision, quality designs--faster.



Product Features     up.gif (1140 bytes)

  Compatible with Windows and Mac platforms



•  Industry’s highest resolution and accuracy at 4,000 lines per inch/150 lines per mm resolution and accuracy to ± 000.8 in/0.203 mm with standard configuration



•  Ergonomic, programmable 16-button cursor



•  Cordless transducer options - 4-button cursor, 5-button mouse, click tip pressure-sensing pen



•  Easy set-up and configuration – no power supply, plug-and-play design, easy-to-install driver, RS-232 and USB interfaces



•  Complete with TemplateWorks software – the CAD productivity tool



•  Programmable button macros and tablet mapping for speed and efficiency

Product Summary     up.gif (1140 bytes)



CADPro, the superior, small-format digitizer offers all the features CAD users value most in input devices. With an active area of 6"x9", native USB support and a small tablet footprint, CADPro is ideal for desktop CAD and graphics use. CADPro’s programmable pointing devices include the standard cordless 16-button cursor, and optional 4-button cursor, 5-button mouse or pen stylus. CADPro’s patented digital technology delivers the industry’s highest input resolution of 4,000 lines-per-inch and 0.008" accuracy. In addition, the digital, no-trackball feature of the cursor and mouse eliminates cleaning, skipping and loud clicking to ensure smooth fast tracking..

The CADPro does not require a power supply and set-up is simple with easy-to-use tablet drivers, plug-n-play design and dual interface support (RS-232 and USB). The customization and performance specifications are optimal for the serious CAD professional.

TemplateWorks software is included with every purchase of CADPro. AutoCad users wishing to use CADPro for menueing will be required to purchase the VTABLET driver. The user is truly ‘heads-up’ and focused on their work, without the distraction of switching between their design and the application software.

CADPro – essential tool for creative, effective and productive CAD performance.



Current Models     up.gif (1140 bytes)

Model #: CP-36090-16
Active Area: 6x9 in/152x229 mm
Width: 12 in/304.8 mm
Height: 11.25 in/285.8 mm
Depth: 0.6 in/15.24 mm
Weight: 1 lb/0.45 kg


What's In The Box      up.gif (1140 bytes)

  CADPro tablet

•  Cordless 16-button cursor

•  CD-ROM with: TabletWorks driver software and control panel

•  Warranty registration card and quick start sheet


Product Specifications      up.gif (1140 bytes)

Detailed  Brochure

Adobe Acrobat Reader required to view brochure.Click on Acrobat icon to download latest version...



 Your ALT-Text here
Summary Specs
Platform Support PC and Mac
Hardware Interface RS-232 and Universal Serial Bus (USB) standard
Software Drivers Microsoft mouse emulation, Microsoft Windows 95, 98,NT, 2000, Me, XP and Vista. (Tabletworks Download from here...)
Resolution 4,000 lines per inch/150 lines per mm
Accuracy ± 000.8 in/0.203 mm with standard configuration
Proximity 0.4 in/10.16 mm
Baud Rate Up to 38,400
Data Rate Up to 200 coordinate pairs per second
Technology Electromagnetic
Output Formats CalComp Advanced Function Technology (AFT)
Operating Modes Prompt, point, run, line, track, increment, mouse, delta, and grid update
Power Supply None required
Power Requirements = 6mA (RS232),
= 25mA (USB)
Certification FCC-B, DOC-B, VCCI Class B, EN55024:98, EN55022
Operating Temperature 50 to 104 degrees F/10 to 40 degrees C
Storage Temperature -40 to 158 degrees F/-40 to 70 degrees C
Humidity Range 0 to 95%, noncondensing
Operating Altitude Up to 15,000 ft/4,600 m
Storage Altitude Up to 50,000 ft/15,200 m
Warranty One-year
