SERIES M

CURRENT VIEWING RESISTORS

DESCRIPTION

Terminating type CVR with threaded stud and mounting flange input connections.



SPECIFICATIONS

1M Models - 20 - Watt Hi-wattage Units - 4 3/4 Inch Overall Length

Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
1M-T10* .05 1200 0.30 75
1M-05 .025 400 1 150
1M-1 .02 800 0.45 63
1M-2 .01 200 2 125
1M-4 .005 48 8 250
1M-8 .025 12 30 500
1M-10 .002 8 45 625
1M-16 .00125 3.2 113 1000
1M-20 .001 2.2 164 1250




2M Models - 30 - Watt Hi-wattage Units - 6 3/4 Inch Overall Length

Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
2M-T10* .1 800 0.45 150
2M-05* .05 400 1 300
2M-1 .04 400 1 125
2M-2 .02 200 2 250
2M-4 .01 48 8 500
2M-8 .005 12 30 1000
2M-10 .004 8 45 1250
2M-16 .0025 3.2 113 1250
2M-20 .0002 2.2 164 2500

*These models slightly longer than stated. BNC output connector supplied as standard. Other connectors available.



Model

Hi-Wattage

Finned Model

1M 20 Watt 75 Watt
2M 30 Watt 125 Watt

The Hi-Wattage model is standard.  The wattage for the 1M is 20 watts and the 2M is 30 watts.  Both the 1M and 2M are available with cooling fins attached to their cases.  The finned model wattage's are75 watts for the 1M and 125 watts for the 2M.   The wattage's stated are based on heavy current connections with unconfined mounting.  The case temperatures should not exceed 140 degrees F(60 degrees C).  Additionally the Finned Models require 100 cubic feet(2.8 cubicmeters) per minute air flow over their cases.  The ambient temperature should not exceed 86 degree F(30 degrees C).  Operation above this temperature the wattage rating should be derated accordingly.



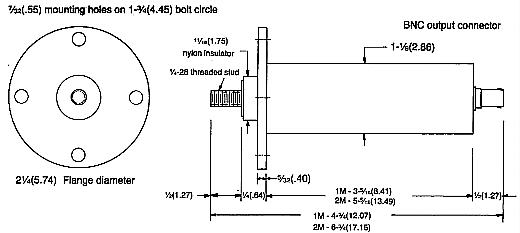

inch(centimeter)



ORDERING INFORMATION

When ordering specify model number, wattage, output connector and tolerance.

Example: 1M-20, 20 watts,BNC, 4%.

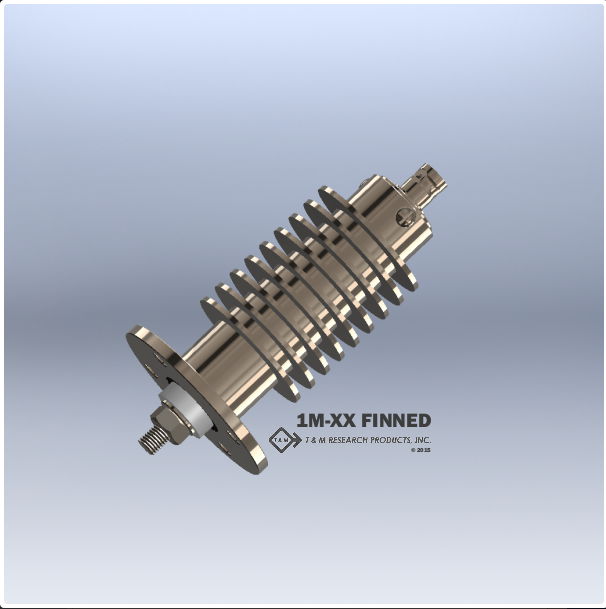

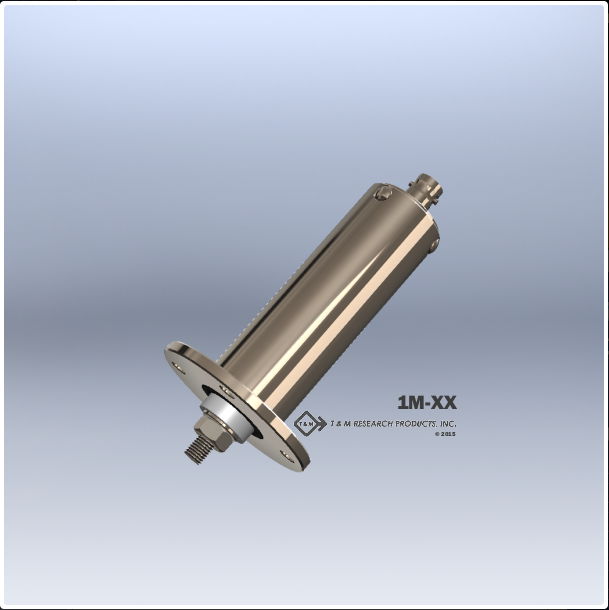

1M Series 1M finned
2M Series 2M Series Finned
