kvaser obdii adapter cable
Kvaser Logo




Cable Accessories







Product

Description

Major Features, Tech Specs, Downloads

Ordering

kvaser dsub 9 pin 120 ohm termination adapter
Kvaser D-sub 9 pin 120 Ohm termination adapter
EAN: 73-30130-00801-4

Kvaser D-sub 9 pin 120 Ohm termination adapter is a CAN adaptor with a 9-pin male D-Sub connector at one end and a 9-pin female D-Sub socket at the other. Between CAN High (pin 7) and CAN Low (pin 2) there is a built-in 120 Ohm CAN terminating resistor.

This adapter provides quick and easy termination to any Kvaser high-speed CAN product. The Kvaser CAN termination adapter is used when there is a need to terminate a CAN node without internal termination or when no CAN node is connected to the bus. The Kvaser D-sub 9 pin 120 Ohm termination adapter has a 9-pin male D-Sub plug connector and a 9-pin female D-Sub socket. A 120 ohm terminating resistor sits between pins 2 and 7.

Tech Specs

Downloads

Buy the
00801-4 here:

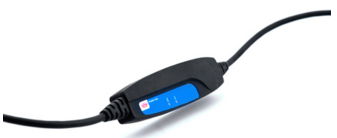

kvaser linx j1587Kvaser Linx J1587
EAN: 73-30130-00389-7

Kvaser Linx is a single channel, add-on cable that provides access to a J1587 bus network. It connects to your existing Kvaser High Speed CAN interface or Datalogger in series. Compatible with selection of Kvaser CAN HS devices.

  • Works with most Kvaser CAN HS interfaces (Not compatible with Memorator Professional 5xHS).
  • Create software applications using the included J1587 library.
  • Supports data logging with the Kvaser Memorator Professional HS/HS.
  • Log both CAN and J1587 data simultaneously.
  • Trigger on J1587 MID, PID, etc.
  • Molded 9 pin DSUB female connector with thumbscrews.
  • Molded 9pin DSUB male connector.
  • Compact plastic housing

Tech Specs

Buy the 00389-7 here:

kvaser obdii extension cable 10mKvaser OBD II Extension Cable 10m
EAN: 73-30130-00348-4

Kvaser's OBD II Extension Cable is a highly durable extension cable of 10 metres in length with male to female OBD II connectors. The cable is made of high quality thermoplastic rubber to ensure excellent flexibility and resilience. All pins are connected.

  • Molded OBD II (SAE J1962) male connector, Type B (24 Volt).
  • Molded OBD II (SAE J1962) female connector, Type B (24 Volt).
  • Made of durable thermoplastic rubber.
  • Gold plated pins on OBDII connectors for extra reliable contact.
  • Termination is built in with a 120 Ohm terminating resistor.
  • Available in other cable lengths.
  • RoHS compliant.
  • This cable can save wear and tear on your CAN interface's OBD2 connector

Tech Specs

Buy the 00348-4
 here:

kvaser obdii extension cable 15m

Kvaser OBD II Extension Cable 15m
EAN: 73-30130-00349-1

Kvaser's OBD II Extension Cable is a highly durable extension

  • Molded OBD II (SAE J1962) male connector, Type B (24 Volt).
  • Molded OBD II (SAE J1962) female connector, Type B (24 Volt).
  • Made of durable thermoplastic rubber.
  • Gold plated pins on OBDII connectors for extra reliable contact.
  • Termination is built in with a 120 Ohm terminating resistor.
  • Available in other cable lengths.
  • RoHS compliant.
  • This cable can save wear and tear on your CAN interface's OBD2 connector.

Tech Specs

Buy the 00349-1
 here:

kvaser obdii extension cable 2.5m

Kvaser OBD II Extension Cable 2.5m
EAN: 73-30130-00347-7

Kvaser's OBD II Extension Cable is a highly durable extension cable of 2.5 metres in length with male to female OBD II connectors. The cable is made of high quality thermoplastic rubber to ensure excellent flexibility and resilience. All pins are connected.

  • Molded OBD II (SAE J1962) male connector, Type B (24 Volt).
  • Molded OBD II (SAE J1962) female connector, Type B (24 Volt).
  • Made of durable thermoplastic rubber.
  • Gold plated pins on OBDII connectors for extra reliable contact.
  • Termination is built in with a 120 Ohm terminating resistor.
  • Available in other cable lengths.
  • RoHS compliant.
  • This cable can save wear and tear on your CAN interface's OBD2 connector.

Tech Specs

Buy the 00347-7
 here:

kvaser obdii extension cable 5m

Kvaser OBD II Extension Cable 5m
EAN: 73-30130-00301-9

Kvaser's OBD II Extension Cable is a highly durable extension cable of 5 metres in length with male to female OBD II connectors. The cable is made of high quality thermoplastic rubber to ensure excellent flexibility and resilience. All pins are connected.

  • Molded OBD II (SAE J1962) male connector, Type B (24 Volt).
  • Molded OBD II (SAE J1962) female connector, Type B (24 Volt).
  • Made of durable thermoplastic rubber.
  • Gold plated pins on OBDII connectors for extra reliable contact.
  • Termination is built in with a 120 Ohm terminating resistor.
  • Available in other cable lengths.
  • RoHS compliant.
  • This cable can save wear and tear on your CAN interface's OBD2 connector.

Tech Specs

Buy the 00301-9
 here:

kvaser obdii dsub9 adapter cable

Kvaser OBD II to Dsub9 Adapter Cable
EAN: 73-30130-00723-9

A Kvaser OBD II Adapter Cable connects any Kvaser CAN bus interface with a DSUB9 female connector to any vehicle with an OBD II (J1962) connector.

  • Molded OBD II (SAE J1962) male connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Molded 9 pin DSUB female connector with thumbscrews.
  • 2500 mm (approx. 8 ft) long cable made of durable thermoplastic rubber.
  • Designed for Kvaser's High-Speed, Low-Speed and Single-Wire CAN interfaces.
  • Perfect for Kvaser Memorator, Kvaser Leaf Professional, etc.

Tech Specs

Buy the 00723-9
here:


kvaser q cable

Kvaser Q-cable
EAN: 73-30130-00199-2

The Q-Cable is a 0.3m (approx. 0.98 ft) long adapter cable for the Kvaser PCIcanx 4xHS and Kvaser PCIcan 4xHS boards. A DSUB male connector connects to the PCIcan board, whilst four DSUB male connectors connect to the CANbus.

  • Adapter cable designed for the Kvaser PCIcanx 4xHS and the Kvaser PCIcan 4xHS boards.
  • One molded 25 pin DSUB male connector with thumbscrews that connects to the CAN interface board
  • Four molded 9 pin DSUB male connectors with thumbscrews for the CAN bus
  • The Q cable is also available in a 3m length Low Smoke Zero Halogen version (Item no. 00340-8) to protect people and equipment from toxic and corrosive gases

Tech Specs

Buy the 00199-2
 here:

kvaser q cable lszh

Kvaser Q-cable LSZH
EAN: 73-30130-00340-8

The Q-Cable is a 3m (approx. 9.8ft) long adapter cable for the Kvaser PCIcanx 4xHS and Kvaser PCIcan 4xHS boards. A DSUB male connector connects to the PCIcan board, whilst four DSUB male connectors connect to the CANbus. This variant helps to protect people and equipment from toxic and corrosive gasses by emitting limited smoke and no halogen when exposed to high heat sources.

  • Adapter cable designed for the Kvaser PCIcanx 4xHS and the Kvaser PCIcan 4xHS boards.
  • One molded 25 pin DSUB male connector with thumbscrews that connects to the CAN interface board
  • Four molded 9 pin DSUB male connectors with thumbscrews for the CAN bus
  • The Q cable is also available in a 3m length Low Smoke Zero Halogen version (Item no. 00340-8) to protect people and equipment from toxic and corrosive gases

Tech Specs

Buy the 00340-8 here:


kvaser t cannector v2

Kvaser T-Cannector v2
EAN: 73-30130-00776-5



Kvaser T-cannector v2 is a CAN bus hub with three female and one male D-SUB9 connectors. Offering an adjustable CAN termination resistor (120/60/0 Ohm) it provides an affordable and safe way of terminating the CAN circuit when using Kvaser interfaces on a development board, as well as powering interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.

  • Acts as a CAN bus hub with 3 female and 1 male D-SUB9 connectors
  • Each DSUB9 has screws to secure the connection to the Kvaser CAN interface
  • Adjustable termination via easy-to-use switch
  • 12V 1A power supply
  • LED to indicate power on
  • Voltage range of 12V-24V DC

Kvaser T-cannector v2 is a CAN bus hub with three female and one male D-SUB9 connectors. Used typically in application development scenarios, this offers an adjustable CAN termination resistor (120/60/0 Ohm) that provides an affordable and safe way of terminating the CAN circuit, as well as powering devices that take their power from the USB connection or the CAN network to which they are attached, such as Kvaser’s Blackbird and Memorator series. This device comes with a 12V power supply and EU, USA, UK and Chinese plugs.

This is a new version of an existing product that responds to user requests for more termination options. Notably our previous product came in two versions: with fixed termination of 120 Ohms and without. The Kvaser T-cannector v2 is extremely price-competitive, providing an external 12V 1A power source for Kvaser CAN interfaces and a safe, trustworthy means of circuit termination that protects customer’s interface investment and will prevent short circuits from damaging their development boards.

Tech Specs

Buy the 00776-5
 here:
