High Voltage Resistors

Resistor img006

Request Quotation here!:
Impulse Current Shunts

Power Resistors

Spring Connectors

Interworld manufactures a complete line of custom engineered and designed High Voltage Non Inductive Impulse Resistors. In general our resistors are designed for applications where high voltage, low inductance and good heat dissipation is required.

Applications include:
- Lightning Research for the generation of lightning and switching - - waveforms,
- Insulator Testing,
- Transformer Testing,
- Front (series) resistors,
- tail (parallel) resistors,
- charging and earthing resistors,
- measuring resistors for resistive impulse voltage dividers.

Other uses include resistors for Impulse Current Shunts, Damped Capacitive Voltage Dividers as well as for recurrent surge generators etc. Interworld started manufacturing resistors in August 1979 and to date have outfitted some of the largest High Voltage Laboratories worldwide.


Resistor img003

Return to top of page

Features:

  • - High Withstand voltage for lightning and switching impulse voltages up to 400kV

  • - low inductance (Inductive time constant L/R=5-250 nsec, depending on ohmic value; in most cases below 75nsec)-High thermal load capacity up to 60kJ

  • - low resistance variations through wide range of operating temperature long term resistance stability

  • - small resistance tolerances - standard 4%; on request 3%, 2% or 1%

  • - terminals according to customer requirements (mild steel, brass, copper - chromium, cadmium or silver electroplated )

  • - ohmic values: 12 ohms - 150 kilo ohms

  • - custom made with deliveries within weeks.

Design:

  • resistors are anti-inductively wire wound on insulation core of high thermal resistance.

  • resistance wire is enamel insulated, of nickel-Chromium 80.20% composition, with temperature coefficient of 100ppm/degree C.

  • Winding is initially vacuum sealed in resin. For lower impulse loads it is protected with fiberglass tape and heat shrink sleeve. In most cases it is cast in resin of high thermal conductivity and high operating temperature.

  • Shape, overall dimensions and terminals of resistors are according to customer specifications.

Spring Loaded Connectors

Interworld have designed a custom spring loaded terminal which allows for very fast replacement of our High Voltage Non Inductive resistors.
View images and more details here.

Need viewer to be able to view or print this brochure.

Resistor Cover

Download our brochure in Adobe PDF Format 60k

Get acrobat Viewer   acrobat.gif (8638 bytes)

Ordering Information:

In order to design and quote your resistor, the following information is required:
- application of resistor (waveshaping, charging, measuring etc.)
- resistance value and desired tolerance
- operating voltage
- energy (impulse load) in kJ, impulse repetition rate and duty cycle
- operating medium (air, gas, oil)
- overall dimensions and limitations and details of terminals (Diagrams are required)

Upon receipt of the above information, a preliminary design of the resistor is prepared, which will be submitted for comments and final approval.

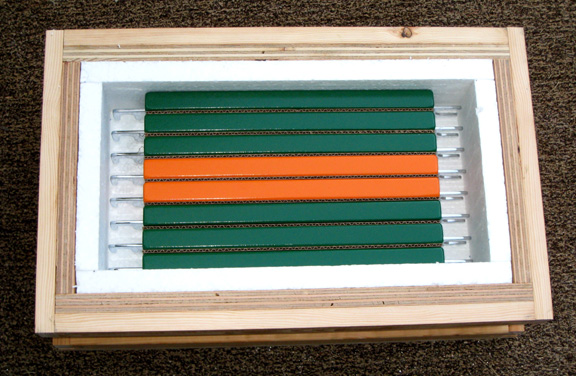

Image of Resistor Packaged for Shipment


Image of a couple of our most recent 100kV 5kJ Resistors




More images >

Return to top of page
