GTCO SUPER LVI Large Format Digitizer

logo
  US Prices
CDN Prices

Privacy and Security Policy
gw10 image 1

Design precise and compelling layouts with Super L VI. The large-format digitizer offers greater flexibility and patented sensing technology for enhanced performance of high quality blueprints. An advanced driver set and user-friendly interface makes computer setup quick and easy.

Connect to Creativity

Integrated USB connection allows Super L VI to be powered through any PC, providing access to industry-leading software programs. Incorporate GTCO CalComp by Turning Technologies’ SuperSet™ Menu for simple and fast navigation between applications.

Pinpoint Precision

Take on the most challenging projects with ease. Super L VI is engineered with exclusive sensing technology that provides superior resolution of up to 2540 lines-per-inch and accuracy of 0.010 inches.

Prepare and Personalize

Customize Super L VI to surpass the most demanding job challenges. Select from a variety of tablet sizes and transducers to simplify and strengthen project designs without compromising comfort.

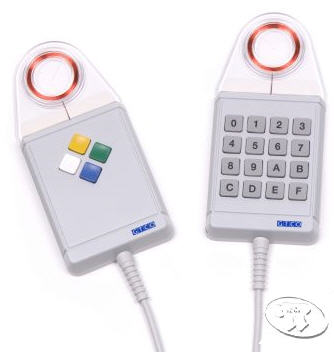

  • 16-button cursor, corded or cordless

  • 4-button diamond cursor, corded or cordless

  • Click tip pen, corded or cordless



Specifications

Platform Support PC
Software Drivers Microsoft Windows® 95, 98, ME, NT, 2000, XP, Vista, 7 and 8
Hardware Interface USB, RS-232 and QuikRuler Port (Requires optional Power Supply)
Accuracy ±0.010 in / 0.25 mm
Resolution Up to 2,540 lines-per-inch / 100 lines-per-mm
Proximity 1.0  in / 25.4 mm with corded transducers
0.4 in / 10.16 mm with cordless transducers
Baud Rate Up to 38,400
Data Rate Up to 200 coordinate pairs per second
Technology Electromagnetic
Output Formats GTCO Type 5/5A, Summagraphics, CalComp
Operating Modes Line, continuous, line increment and continuous increment
Power Supply 120 V / 60 Hz, 220 V / 50 Hz (required for RS-232 serial connection)
No supply required for USB connection
Power Requirements 5 Volts, DC, 100 mA current draw (USB)
9 Volts, DC, 200 mA current draw (with Power Supply)
Certification UL 1950, EN60950, FCC, VCCI, CE, EN55024, EN55022, Industry Canada
Operating Temperature 50 to 104°F/10 to 40°C
Storage Temperate -40 to 158°F/-40 to 70°C
Humidity Range 0 to 95%, noncondensing
Operating Altitude Up to 15,000 ft. / 4,600 m
Storage Altitude Up to 50,000 ft. / 15,200 m
Warranty Two-year limited warranty; extended warranty available - U.S. only
Included Components - Super L VI tablet and controller
- Corded or cordless transducer
- USB cable
- CD with Software Drivers and Electronic User's Manual
- Table feet (non bracket systems order)


Model Active Area Footprint Weight Shipping Wt (Avg)
2024 20 in x 24 in
(508 mm x 610 mm)
29 in x 34 in
(737 mm x 864 mm)
13 lb
(10.5 kg)
31 lb
(14.1 kg)
2436 24 in x 36 in
(610 mm x 914 mm)
32.5 in x 46 in
(826 mm x 1168 mm)
19 lb
(8.6 kg)
42 lb
(19.1 kg)
3036 30 in x 36 in
(763 mm x 914 mm)
35.3 in x 44.5 in
(896 mm x 1130 mm)
19 lb
(8.6 kg)
42 lb
(19.1 kg)
3648 36 in x 48 in
(914 mm x 1219 mm)
44.5 in x 60 in
(1130 mm x 1524 mm)
30 lb
(13.6 kg)
70 lb
(31.8 kg)
4460 44 in x 60 in
(1117 mm x 1524 mm)
52.5 in x 69 in
(1333 mm x 1753 mm)
40 lb
(18.2 kg)
80 lb
(36.4 kg)



 Download a acrobat logo_lg  PDF Brochure here





VersaTable

VersaTable is the perfect companion for DrawingBoard VI. Easy to install pedestal provides greater functionality and a stable platform for precise and superior designs. All components are adjustable to suit personal preference.



Designed For Digitizer models 24" x 36" (A1), 30" x 36" (A1 ), 36" x 48" (A0) and 44" x 60" (A0 )
Weight Capacity Safely holds up to 250 lbs.
Tilt Angle 0-45 degrees
Vertical Travel 24° to 36° in 1 inch increments
Shipping Weight 90 lbs.

More...







Super L VI - Stylus - Corded
Super LVI - 4 Button Cursor - Corded
Super LVI - 16 Button Cursor Corded
(LF-A-11-00717-01-R)
Super LVI - Stylus - Cordless
(LF-A-11-00736-01-R)
Super LVI - 4 Button Diamond Cursor Cordless
(LF-A-11-00732-03-R)
Super LVI - 16 Button Cursor - Cordless
(LF-A-11-00732-01-R)
